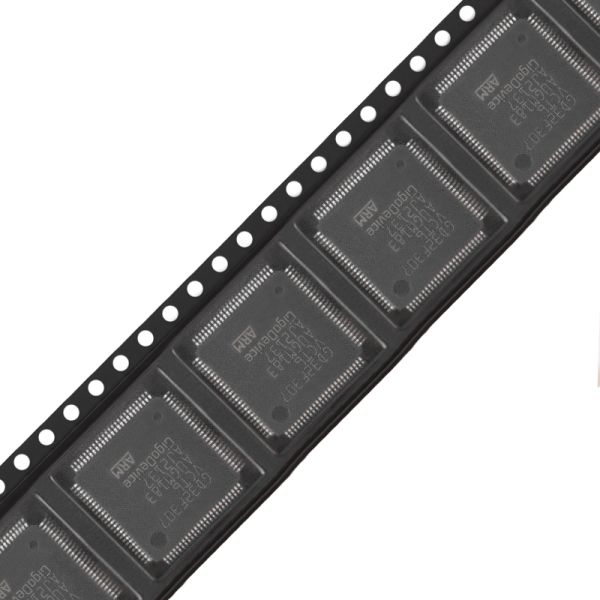

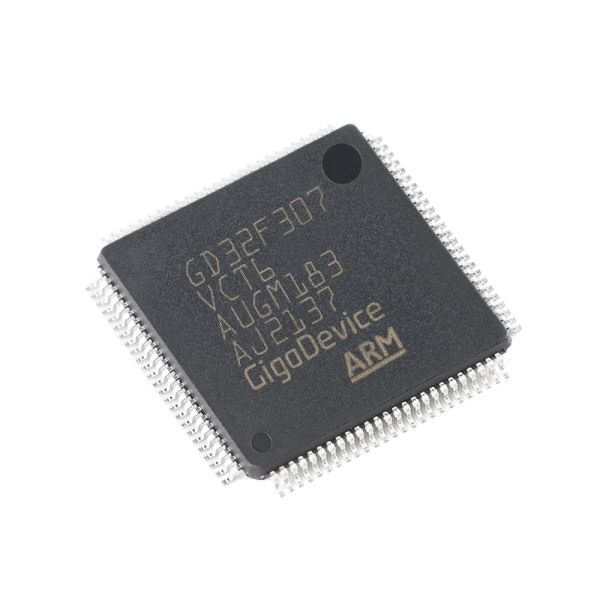

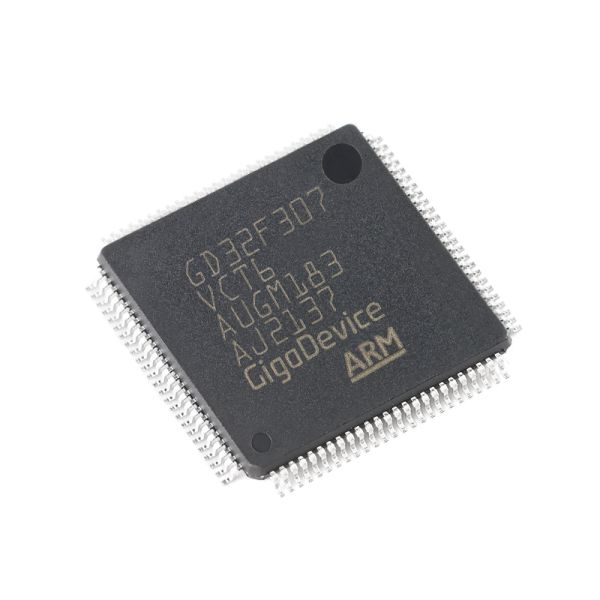

GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
Specifications
Brand Name :
GigaDevice
Model Number :
GD32F307VCT6
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
-
Data Bus Width: :
32 Bit
Maximum CPU operating frequency :
120MHz
Program Memory Type: :
FLASH
Data RAM Size: :
256KB
Number of I/Os: :
80
Description
GD32F307VCT6 ARM Cortex-M4 32-bit MCU
The GD32F307VCT6 features an ARM® Cortex®-M4 32-bit processor core operating at 120 MHz frequency with zero wait state Flash access for maximum efficiency. This microcontroller provides 256 KB on-chip Flash memory and extensive peripheral connectivity.
Key Features
  • ARM Cortex-M4 32-bit processor core at 120 MHz
  • 256 KB Flash memory with zero wait state access
  • Up to 1024 KB Flash and 96 KB SRAM memory options
  • Two 12-bit 2.6 MSPS ADCs and two 12-bit DACs
  • Advanced timer system: ten general 16-bit timers, two 16-bit PWM advanced timers, two 16-bit basic timers
  • Comprehensive communication interfaces: three SPIs, two I2Cs, three USARTs, two UARTs, two I2Ss, two CANs, USBFS, and ENET
  • Operating voltage: 2.6V to 3.6V
  • Temperature range: -40°C to +85°C
  • Multiple power saving modes for low power applications
Electrical Specifications
Symbol Parameter Conditions Min Max Unit
fHCLK AHB clock frequency -- -- 120 MHz
fAPB1 APB1 clock frequency -- -- 60 MHz
fAPB2 APB2 clock frequency -- -- 120 MHz
GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB GD32F307VCT6 ARM Cortex-M4 32-bit MCU 120MHz 256KB
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
