Specifications
Brand Name :
ST
Model Number :
STM8L101F3P6
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days

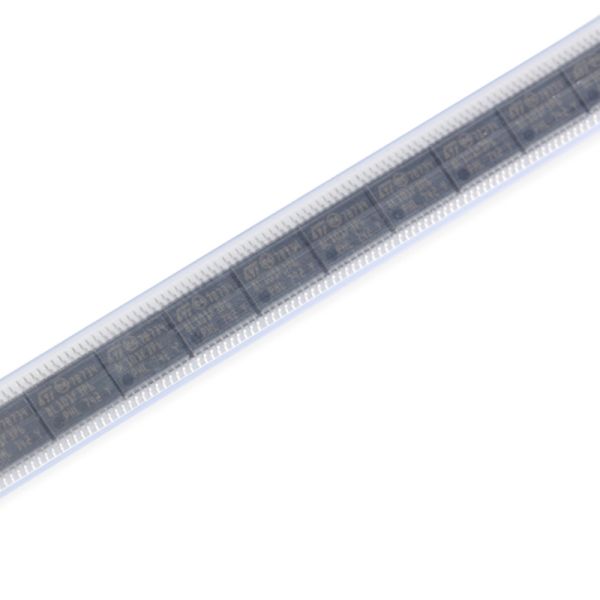

Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
16MHz
Data Bus Width: :
8 Bit
Program Memory Size: :
8KB
Program Memory Type: :
FLASH
Data RAM Size: :
1.5KB
Description

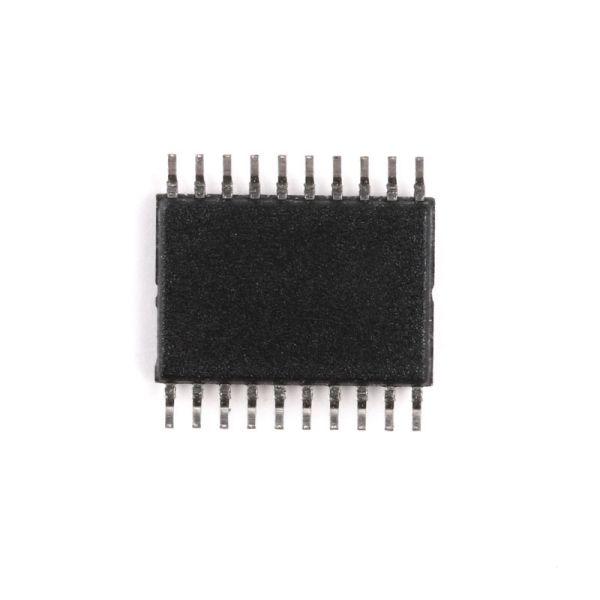

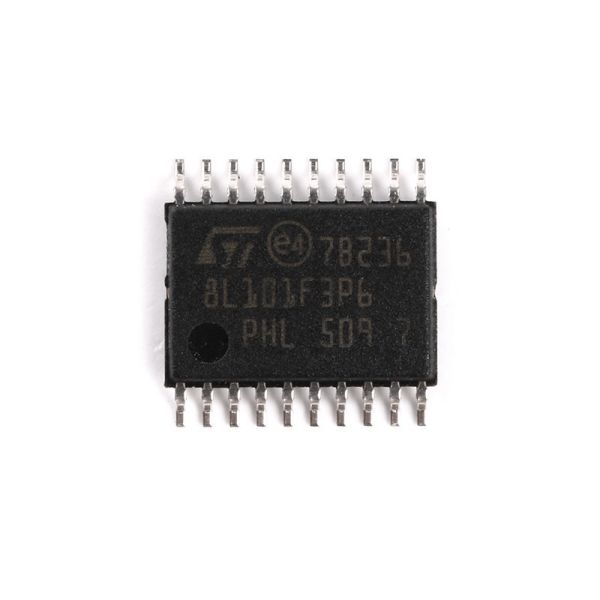

STM8L101F3P6 8-bit Ultralow Power Microcontroller
High-performance 8-bit microcontroller with up to 8 Kbytes Flash memory, multifunction timers, comparators, USART, SPI, and I2C interfaces.
Key Features
Main Microcontroller Features
  • Supply voltage range: 1.65 V to 3.6 V
  • Ultralow power consumption: Halt (0.3 µA), Active-halt (0.8 µA), Dynamic Run (150 µA/MHz)
  • STM8 Core with up to 16 CISC MIPS throughput
  • Temperature range: -40°C to 85°C and 125°C
Memory Specifications
  • Up to 8 Kbytes of Flash program memory including up to 2 Kbytes of data EEPROM
  • Error correction code (ECC)
  • Flexible write and read protection modes
  • In-application and in-circuit programming
  • Data EEPROM capability
  • 1.5 Kbytes of static RAM
Clock Management
  • Internal 16 MHz RC with fast wakeup time (typically 4 µs)
  • Internal low consumption 38 kHz RC driving both IWDG and AWU
Power Management
  • Ultralow power POR/PDR
  • Three low power modes: Wait, Active-halt, Halt
Interrupt Management
  • Nested interrupt controller with software priority control
  • Up to 29 external interrupt sources
I/O Capabilities
  • Up to 30 I/Os, all mappable on external interrupt vectors
  • Programmable input pull-ups
  • High sink/source capability
  • LED driver infrared output
Product References
Reference Part Numbers
STM8L101xx STM8L101F1, STM8L101F2, STM8L101F3
STM8L101G2, STM8L101G3
STM8L101K3
STM8L101F3P6 8-bit Ultralow Power Microcontroller With Up To 8 Kbytes Flash Multifunction Timers Comparators USART SPI I2C STM8L101F3P6 8-bit Ultralow Power Microcontroller With Up To 8 Kbytes Flash Multifunction Timers Comparators USART SPI I2C STM8L101F3P6 8-bit Ultralow Power Microcontroller With Up To 8 Kbytes Flash Multifunction Timers Comparators USART SPI I2C
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
