STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
Specifications
Brand Name :
ST
Model Number :
STM32F405RGT6
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
168MHz
Data Bus Width: :
32 Bit
Program Memory Size: :
1MB
Program Memory Type: :
FLASH
Data RAM Size: :
192KB
Number of I/Os: :
51
Description

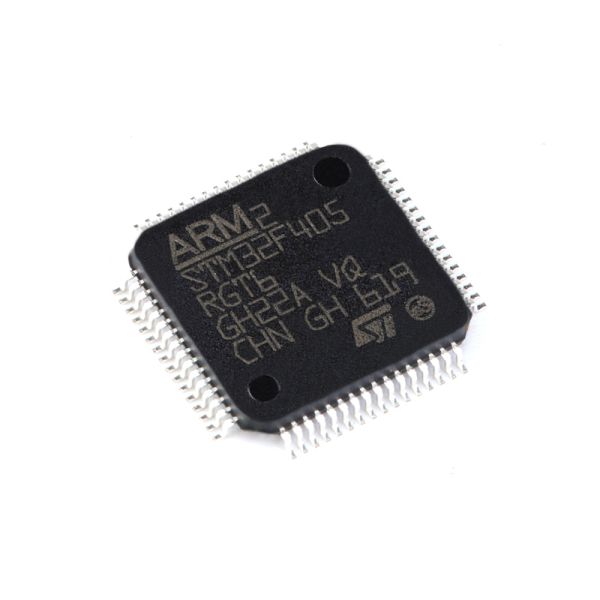

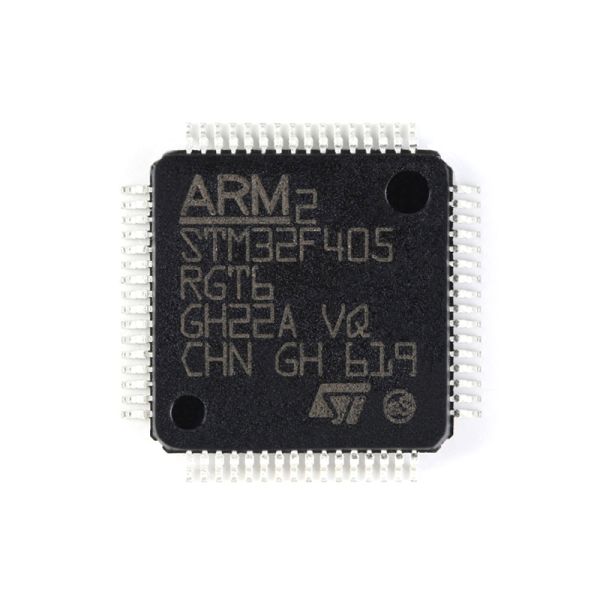

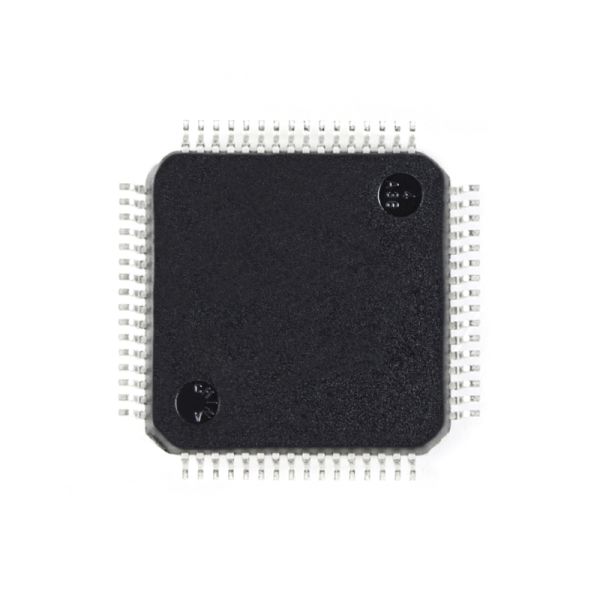

STM32F405RGT6 ARM Cortex-M4 32-bit MCU with FPU
High-performance ARM Cortex-M4 32-bit MCU with FPU, delivering 210 DMIPS with up to 1MB Flash memory, 192+4KB RAM, USB OTG HS/FS, Ethernet, 17 timers, 3 ADCs, 15 communication interfaces, and camera support.
Key Features
  • Core: ARM 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) for 0-wait state execution from Flash memory
  • Frequency: Up to 168 MHz with memory protection unit
  • Performance: 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1) with DSP instructions
  • Memory: Up to 1 MB Flash memory, 192+4 KB SRAM including 64 KB CCM data RAM
  • Flexible Memory Controller: Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
  • LCD Interface: Parallel interface with 8080/6800 modes
  • Power Management: 1.8V to 3.6V application supply, POR, PDR, PVD, BOR
  • Clock System: 4-to-26 MHz crystal oscillator, internal 16 MHz factory-trimmed RC (1% accuracy)
  • Low Power Modes: Sleep, Stop and Standby modes with VBAT supply for RTC
  • Analog Converters: 3×12-bit, 2.4 MSPS A/D converters (up to 24 channels), 2×12-bit D/A converters
  • DMA: 16-stream DMA controller with FIFOs and burst support
  • Timers: Up to 17 timers including twelve 16-bit and two 32-bit timers up to 168 MHz
  • Debug Interface: Serial wire debug (SWD) & JTAG interfaces with Cortex-M4 Embedded Trace Macrocell
  • I/O Ports: Up to 140 I/O ports with interrupt capability, up to 136 fast I/Os up to 84 MHz
  • Communication Interfaces: Up to 15 interfaces including 3×I2C, 4 USARTs/2 UARTs, 3 SPIs, 2×CAN, SDIO
  • USB Connectivity: USB 2.0 full-speed/high-speed device/host/OTG controllers with on-chip PHY
  • Ethernet: 10/100 Ethernet MAC with dedicated DMA supporting IEEE 1588v2 hardware
  • Camera Interface: 8- to 14-bit parallel camera interface up to 54 MB/s
  • Security: True random number generator, CRC calculation unit, 96-bit unique ID
  • RTC: Subsecond accuracy with hardware calendar
Reference Part Numbers
STM32F405xx Series: STM32F405RG, STM32F405VG, STM32F405ZG, STM32F405OG, STM32F405OE
STM32F407xx Series: STM32F407VG, STM32F407IG, STM32F407ZG, STM32F407VE, STM32F407ZE, STM32F407IE
STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera STM32F405RGT6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
