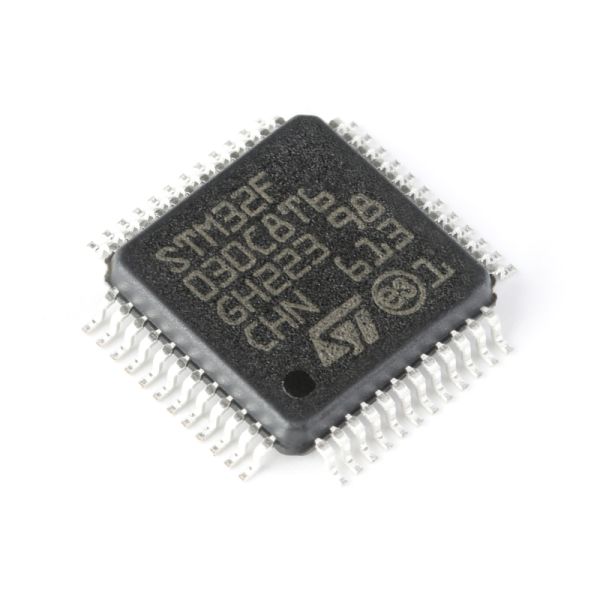

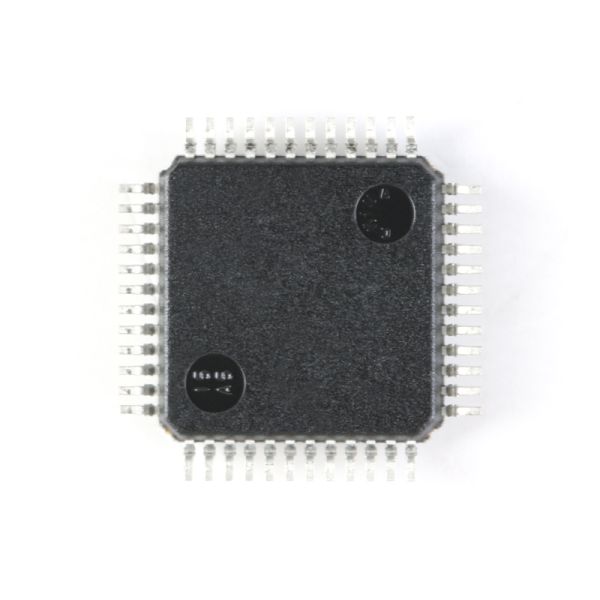

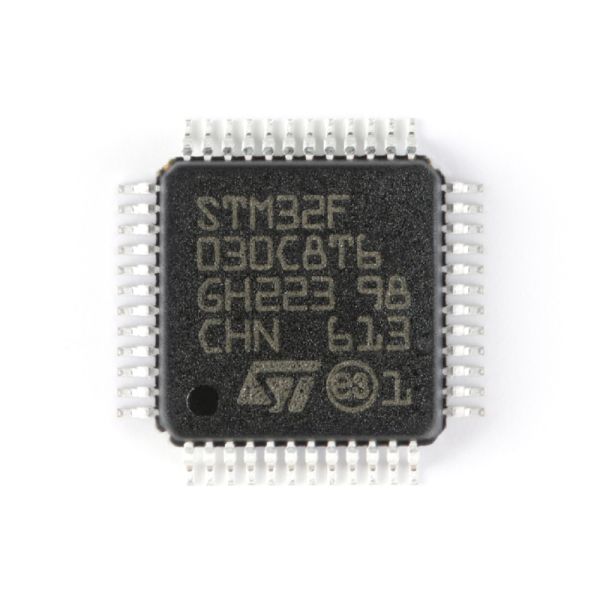

STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
Specifications
Brand Name :
ST
Model Number :
STM32F030C8T6
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
48MHz
Data Bus Width: :
32 Bit
Program Memory Size: :
64KB
Program Memory Type: :
FLASH
Data RAM Size: :
8KB
Number of I/Os: :
39
Description
STM32F030C8T6 Value-line ARM-based 32-bit MCU
High-performance 32-bit microcontroller with 16 to 64-KB Flash memory, integrated timers, ADC, and communication interfaces. Operating voltage range: 2.4-3.6V.
Key Features
  • Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz
  • Memories: 16 to 64 Kbytes of Flash memory, 4 to 8 Kbytes of SRAM with HW parity checking
  • CRC calculation unit
  • Power Management: Voltage range: 2.4 V to 3.6 V, Power-on/Power down reset (POR/PDR), Low power modes: Sleep, Stop, Standby
  • Clock Management: 4 to 32 MHz crystal oscillator, 32 kHz oscillator for RTC with calibration, Internal 8 MHz RC with x6 PLL option, Internal 40 kHz RC oscillator
  • Up to 55 fast I/Os, all mappable on external interrupt vectors, Up to 36 I/Os with 5 V tolerant capability
  • 5-channel DMA controller
  • 1 x 12-bit, 1.0 µs ADC (up to 16 channels), Conversion range: 0 to 3.6 V, Separate analog supply from 2.4 up to 3.6 V
  • Up to 10 timers including advanced-control timers for PWM output with deadtime generation and emergency stop
Reference Part Numbers
Series Part Numbers
STM32F030x4 STM32F030F4
STM32F030x6 STM32F030C6, STM32F030K6
STM32F030x8 STM32F030C8, STM32F030R8
