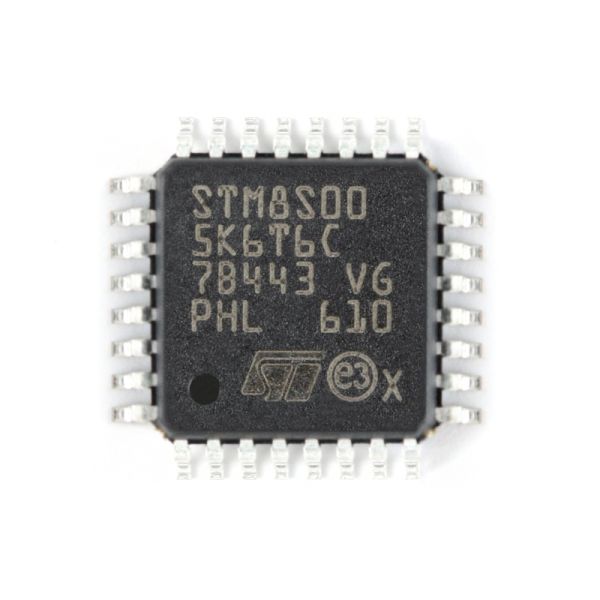

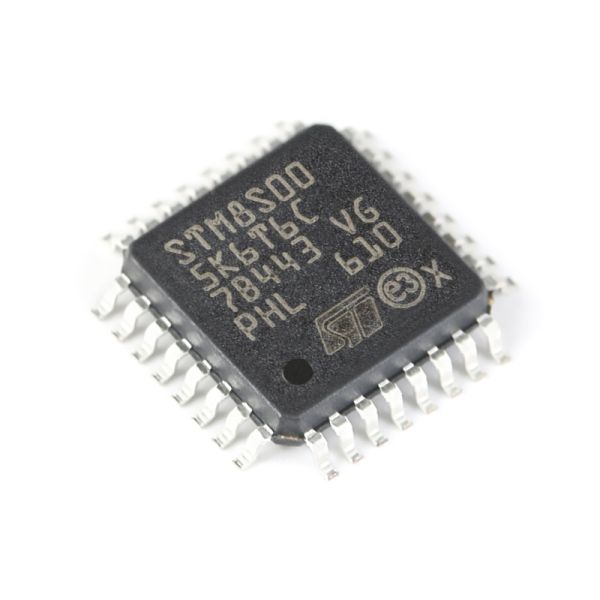

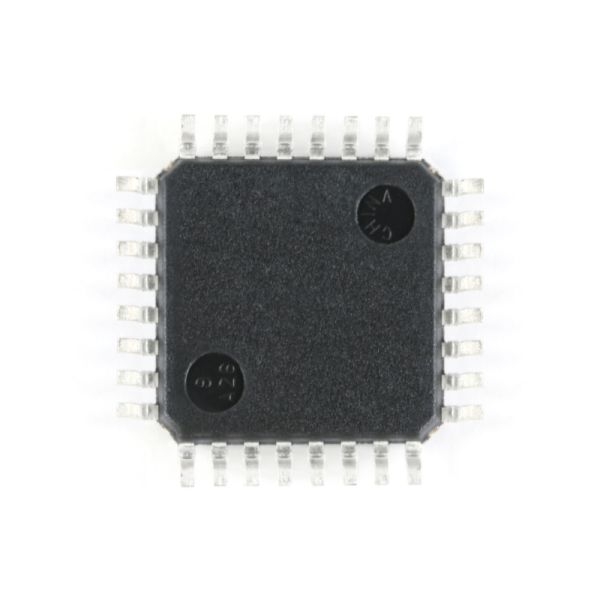

STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
Specifications
Brand Name :
ST
Model Number :
STM8S005K6T6C
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
16MHz
Data Bus Width: :
8 Bit
Program Memory Size: :
32KB
Program Memory Type: :
FLASH
Data RAM Size: :
2KB
Number of I/Os: :
25
Description
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU
32 Kbytes Flash with Data EEPROM, 10-bit ADC, Timers, UART, SPI, and I²C interfaces
Product Overview
The STM8S005K6T6C is a high-performance 8-bit microcontroller from STMicroelectronics' Value Line series, featuring a 16 MHz STM8 core with advanced architecture and comprehensive peripheral set.
Key Features
  • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
  • Extended instruction set for enhanced performance
  • 32 Kbytes Flash program memory with 20-year data retention
  • 128 bytes true data EEPROM with 100k write/erase cycle endurance
  • 2 Kbytes RAM for data storage
  • Operating voltage: 2.95 V to 5.5 V
  • Flexible clock control with multiple master clock sources
  • Advanced power management with low power modes
  • Up to 38 I/O ports with high sink capability
Clock, Reset and Power Management
  • Four master clock sources: crystal resonator, external clock, internal 16 MHz RC, and internal 128 kHz RC
  • Clock security system with monitor
  • Individual peripheral clock control
  • Low power modes: wait, active-halt, and halt
  • Permanently active power-on/power-down reset
Interrupt Management
Nested interrupt controller supporting 32 interrupts with up to 37 external interrupts across 6 vectors.
Timer Systems
  • Two 16-bit general purpose timers with CAPCOM channels
  • Advanced 16-bit control timer with complementary outputs and dead-time insertion
  • 8-bit basic timer with prescaler
  • Auto wake-up timer
  • Window and independent watchdog timers
Communication Interfaces
  • UART with synchronous clock output, Smartcard, IrDA, and LIN support
  • SPI interface up to 8 Mbit/s
  • I2C interface up to 400 Kbit/s
Analog-to-Digital Converter
10-bit ADC with ±1 LSB accuracy, up to 10 multiplexed channels, scan mode, and analog watchdog functionality.
Development Support
Embedded single wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging.
Memory Map
Memory Area Size (bytes) Start Address End Address
Flash Program Memory 32K 0x008000 0x00FFFF
RAM 2K 0x000000 0x0007FF
Data EEPROM 128 0x004000 0x00407F
Product Documentation
STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU 32 Kbytes Flash DataEEPROM 10-bit ADC Timers UART SPI I²C
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
