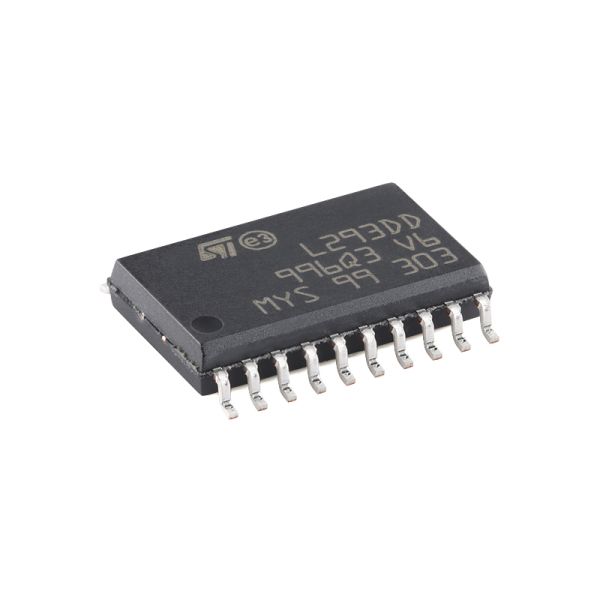

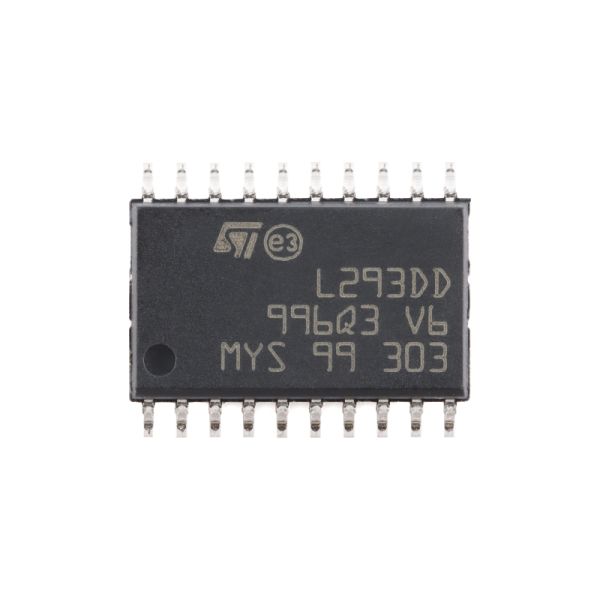

L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
Specifications
Brand Name :
ST
Model Number :
L293DD013TR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day

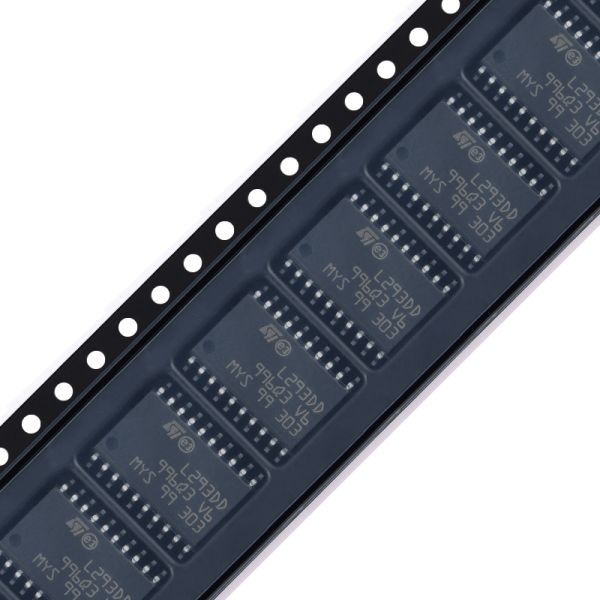

Packaging Details :
T/R
Product Category: :
Motor / Motion / Ignition Controllers & Drivers
Output Current: :
600 mA
Operating Supply Current: :
2 mA
Package / Case: :
SOIC-20-300mil
Minimum Operating Temperature: :
-40℃
Maximum Operating Temperature: :
+150℃
Supply Voltage - Max: :
36 V
Supply Voltage - Min: :
4.5 V
Description
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
Product Description

The L293DD013TR is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors, and switching power transistors. To simplify use as two bridges, each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Key Features
  • 600mA output current capability per channel
  • 1.2A peak output current (non repetitive) per channel
  • Enable facility
  • Overtemperature protection
  • Logical "0" input voltage up to 1.5 V (high noise immunity)
  • Internal clamp diodes
Control Logic
Input Enable (*) Output
H H H
L H L
H L Z
L L Z
L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel L293DD013TR Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
