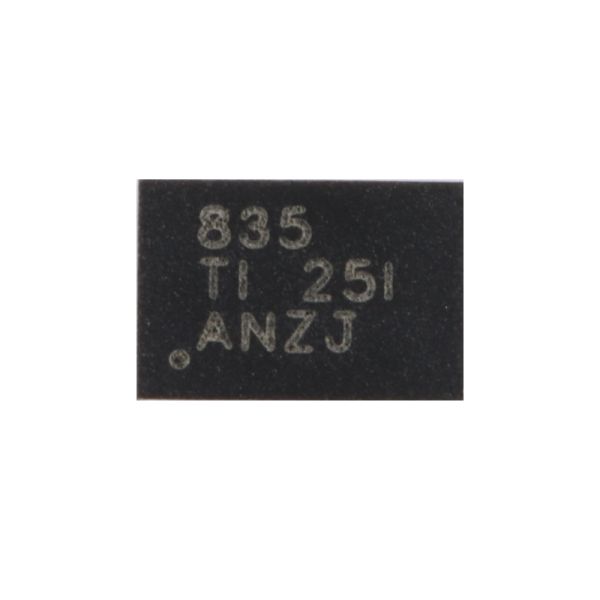

DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
Specifications
Brand Name :
TI
Model Number :
DRV8835DSSR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Product Category: :
Motor / Motion / Ignition Controllers & Drivers
Package / Case: :
WSON-12-EP(2x3)
Output Current: :
1.5 A
Number of Outputs: :
2 Output
Minimum Operating Temperature: :
-40℃
Maximum Operating Temperature: :
+85℃
Supply Voltage - Max: :
11 V
Supply Voltage - Min: :
2 V
Description
DRV8835DSSR Dual Low-Voltage H-Bridge IC
The DRV8835DSSR is a dual low-voltage H-Bridge motor driver IC designed for battery-powered motion control applications.
Key Features
  • Dual-H-Bridge motor driver capable of driving two DC motors or one stepper motor
  • Low MOSFET ON-resistance: HS + LS 305 mΩ
  • 1.5-A maximum drive current per H-bridge
  • Configurable parallel bridges for 3-A drive current
  • Separate motor and logic supply pins
  • Motor operating voltage: 0-V to 11-V
  • Logic supply voltage: 2-V to 7-V
  • Flexible PWM or PHASE/ENABLE interface
  • Low-power sleep mode with 95-nA maximum supply current

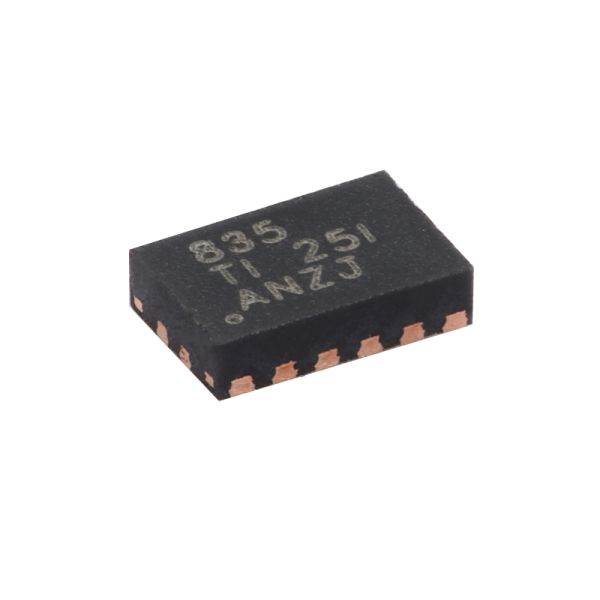

  • Tiny 2.00-mm × 3.00-mm WSON package
Product Description
The DRV8835 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device features two H-bridge drivers that can drive two DC motors or one stepper motor, as well as other devices like solenoids.
Each output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive motor windings. An internal charge pump generates gate drive voltages. The DRV8835 supplies up to 1.5-A of output current per H-bridge and operates on motor power supply voltages from 0 V to 11 V, with device power supply voltage of 2 V to 7 V.
PHASE/ENABLE and IN/IN interfaces are compatible with industry-standard devices. Internal shutdown functions provide overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature protection. The DRV8835 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br).
Applications
  • Battery-Powered Devices:
    • Cameras
    • DSLR Lenses
    • Consumer Products
    • Toys
    • Robotics
    • Medical Devices
Device Information
Part Number Package Body Size (Nom)
DRV8835 WSON (12) 2.00 mm × 3.00 mm
DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC

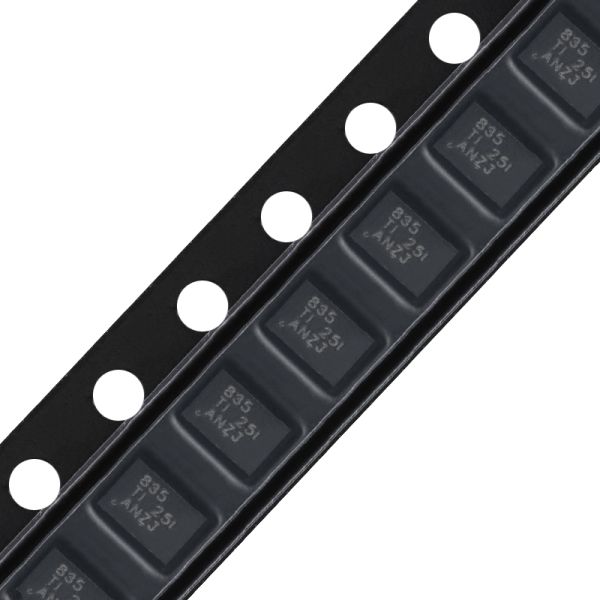

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
