TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
Specifications
Brand Name :
TI
Model Number :
TLC59116IPWR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Product Category: :
LED Display Drivers
Package / Case: :
TSSOP-28
Output Current: :
3V
Input Voltage - Max: :
5.5 V
Minimum Operating Temperature: :
-40℃
Maximum Operating Temperature: :
+85℃
Low Level Output Current: :
-
Description
TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
Product Overview

The TLC59116IPWR is a 16-channel constant-current LED sink driver with I2C-bus interface, designed for LED display and lighting applications.

Key Features
  • 16 LED drivers with programmable outputs (Off, On, Programmable LED Brightness, or Programmable Group Dimming and Blinking)
  • Supports hot insertion capability
  • Low standby current consumption
  • 3.3-V or 5-V supply voltage operation
  • 5.5-V tolerant inputs
  • 16 constant-current output channels
  • Available in 28-pin TSSOP and 32-pin QFN packages
  • 256-step (8-bit) linear programmable brightness per LED output
  • 97-kHz PWM signal for brightness control
  • Operating temperature range: –40°C to 85°C
Device Information
Part Number Package Body Size (Nominal)
TLC59116 TSSOP (28) 9.70 mm x 4.40 mm
TLC59116 VQFN (32) 5.00 mm x 5.00 mm
Product Images

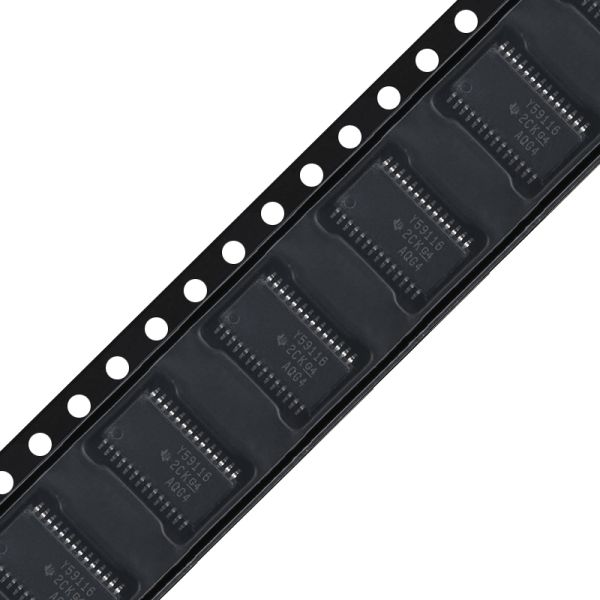

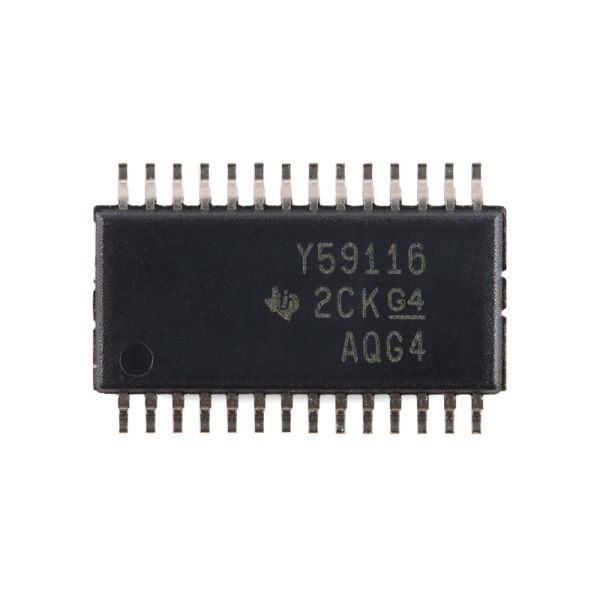

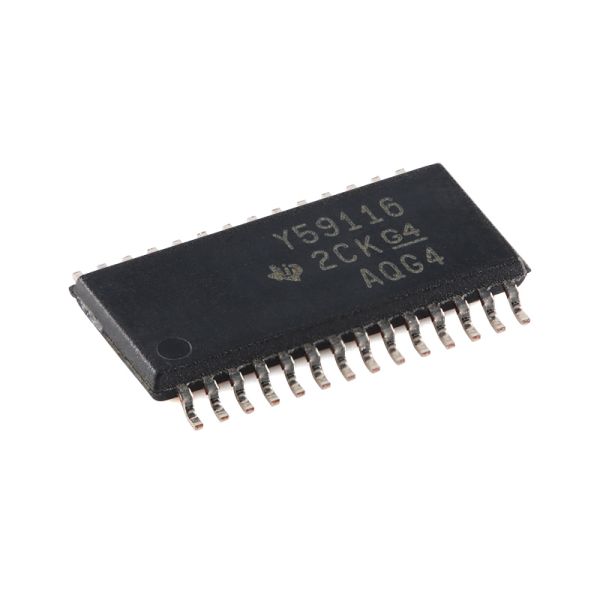

TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
