Specifications
Brand Name :
TI
Model Number :
DRV8840PWPR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Product Category: :
Motor / Motion / Ignition Controllers & Drivers
Package / Case: :
HTSSOP-28
Output Current: :
3.5A
Operating Supply Current: :
5 mA
Minimum Operating Temperature: :
-40℃
Maximum Operating Temperature: :
+85℃
Number of Outputs: :
1 Output
Supply Voltage - Max: :
45 V
Supply Voltage - Min: :
8.2 V
Description
DRV8840PWPR Motor / Motion / Ignition Controllers & Drivers 5A Brushed DC Motor Driver

The DRV8840 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications.

Key Features
  • Single H-Bridge Current-Control Motor Driver
  • 8.2-V to 45-V Operating Supply Voltage Range
  • Five Bit Current Control Allows up to 32 Current Levels
  • Low MOSFET RDS(on) Typical 0.4 Ω (HS + LS)
  • 5-A Maximum Drive Current at 24 V, TA = 25°C
  • Built-In 3.3-V Reference Output
  • Parallel Digital Control Interface
  • Thermal Enhanced Surface Mount Package
  • Protection Features:
    • Overcurrent Protection (OCP)
    • Thermal Shutdown (TSD)
    • VM Undervoltage Lockout (UVLO)
    • Fault Condition Indication Pin (nFAULT)
Applications
  • Printers
  • Scanners
  • Office Automation Machines
  • Gaming Machines
  • Factory Automation
  • Robotics
Technical Description

The DRV8840 has one H-bridge driver and is intended to drive one DC motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The device can supply up to 5-A peak or 3.5-A output current (with proper heatsinking at 24 V and 25°C).

A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.

Internal shutdown functions provide overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection.

Device Information
Part Number Package Body Size (Nom)
DRV8840 HTSSOP (28) 9.70 mm × 4.40 mm

Available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).

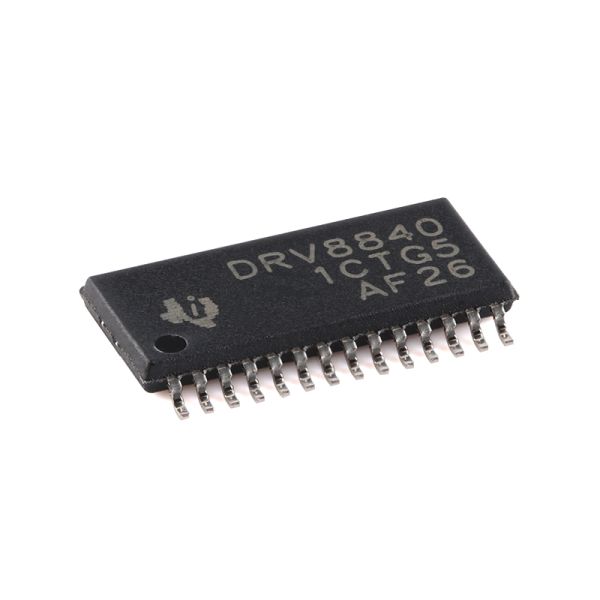

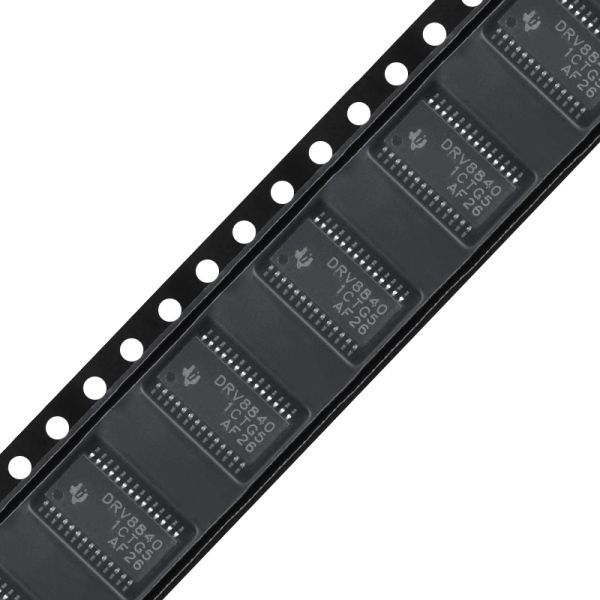

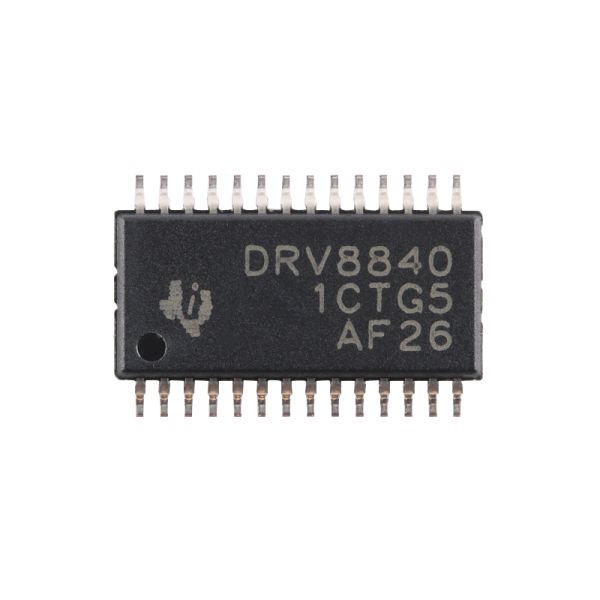

Product Images
DRV8840PWPR Motor / Motion / Ignition Controllers & Drivers 5A Brushed DC Motor Driver DRV8840PWPR Motor / Motion / Ignition Controllers & Drivers 5A Brushed DC Motor Driver DRV8840PWPR Motor / Motion / Ignition Controllers & Drivers 5A Brushed DC Motor Driver
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
