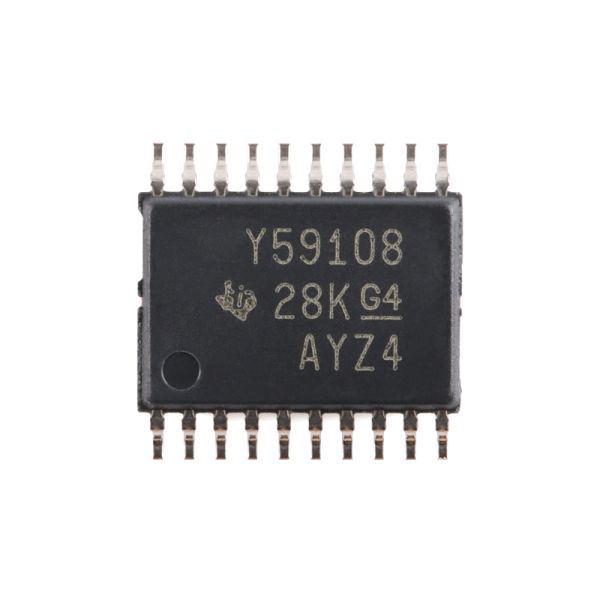

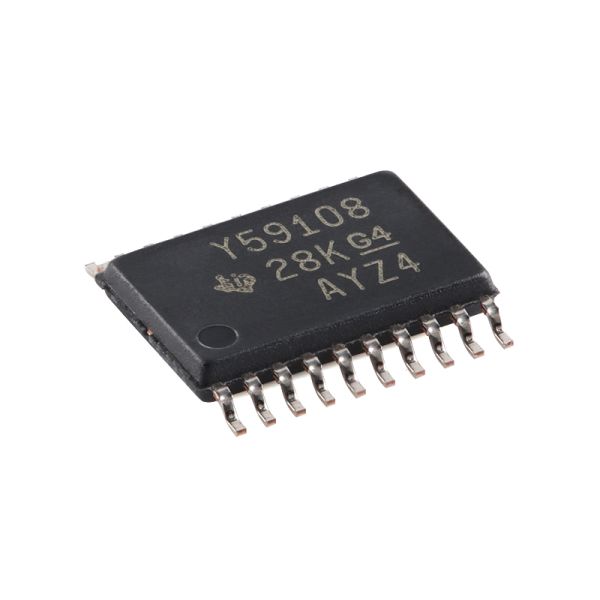

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
Specifications
Brand Name :
TI
Model Number :
TLC59108IPWR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day

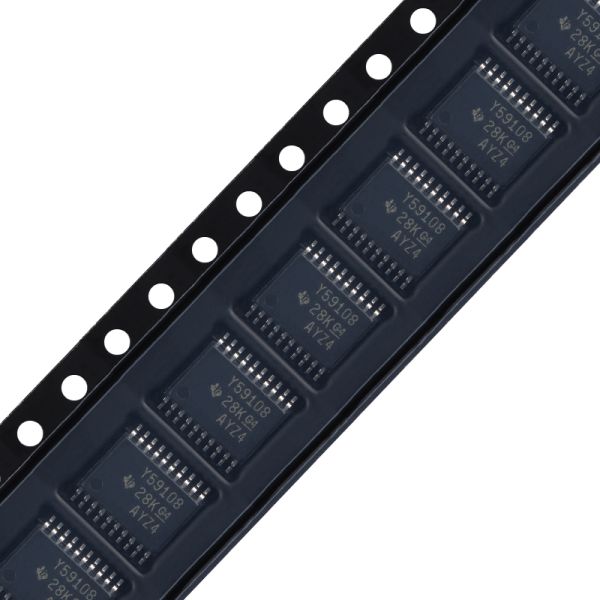

Packaging Details :
T/R
Product Category: :
LED Display Drivers
Package / Case: :
TSSOP-20
Output Current: :
120mA
Operating Voltage :
3V~5.5V
Minimum Operating Temperature: :
-40℃
Maximum Operating Temperature: :
+85℃
Maximum DC Collector Current: :
-
Description
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
Product Overview

The TLC59108 is an I2C bus controlled 8-bit LED driver optimized for red/green/blue/amber (RGBA) color mixing and backlight applications.

Key Features
  • Eight LED drivers with programmable outputs (Off, On, Brightness, Group Dimming/Blinking)
  • 25-MHz internal oscillator requiring no external components
  • 1-MHz Fast Mode Plus compatible I2C bus interface
  • Eight constant-current output channels
  • Internal power-on reset and active-low reset
  • 256-step (8-bit) linear programmable brightness per LED output
  • Noise filter on SCL/SDA inputs with no glitch on power up
  • 256-step group brightness control and group blinking
  • Supports hot insertion
  • Four hardware address pins allowing 14 devices on same I2C bus
  • 3.3-V or 5-V supply voltage operation
  • Software-programmable I2C bus addresses and software reset feature
  • Open-load/overtemperature detection for individual LED error detection
  • Constant output current adjustable through external resistor (10mA to 120mA)
  • Maximum output voltage: 17 V
Applications
  • Gaming systems
  • Small signage displays
  • Industrial equipment
Device Information
Part Number Package Body Size (Nom)
TLC59108 TSSOP (20) 6.50 mm × 4.40 mm
TLC59108 VQFN (20) 4.50 mm × 3.50 mm
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
