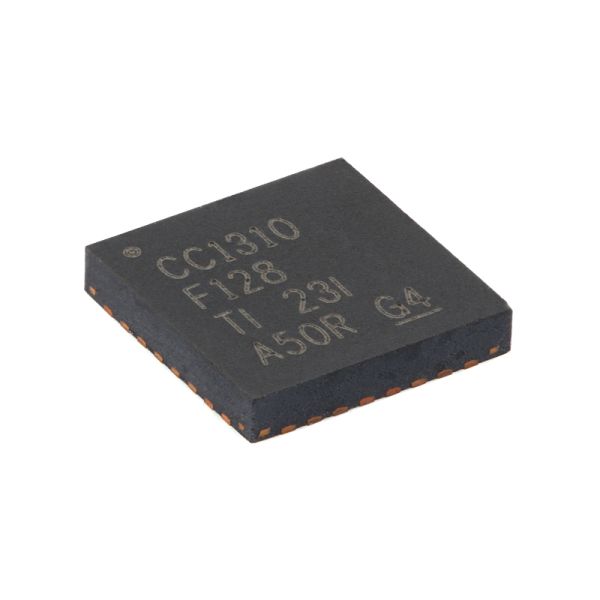

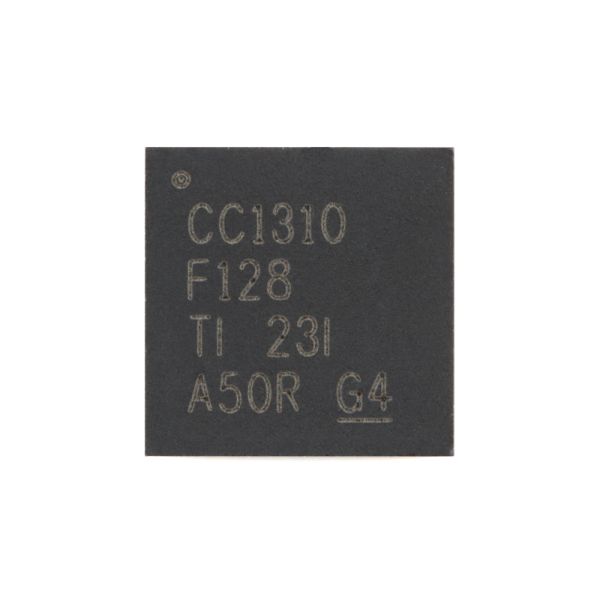

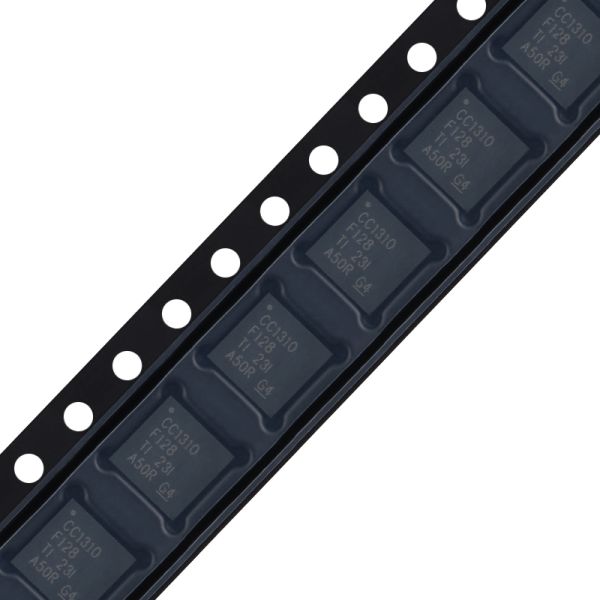

CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
Specifications
Brand Name :
TI
Model Number :
CC1310F128RHBR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Maximum Clock Frequency: :
48 MHz
Data Bus Width: :
32 bit
Program Memory Size: :
128 kB
Data RAM Size: :
20 kB
operating voltage :
1.8 V~3.8 V
Number of I/Os: :
15
Description
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU
A high-performance wireless microcontroller featuring 128kB Flash memory, designed for sub-1 GHz applications with ultra-low power consumption.
Key Features
  • Powerful Arm® Cortex®-M3 Processor
  • EEMBC CoreMark® Score: 142 | EEMBC ULPBench™ Score: 158
  • Clock Speed up to 48-MHz
  • 32KB, 64KB, and 128KB of In-System Programmable Flash
  • 8KB of SRAM for Cache (or as General-Purpose RAM)
  • 20KB of Ultra-Low-Leakage SRAM
  • 2-Pin cJTAG and JTAG Debugging
  • Supports Over-the-Air (OTA) Update
Ultra-Low-Power Sensor Controller
  • Can Run Autonomously From the Rest of the System
  • 16-Bit Architecture
  • 2KB of Ultra-Low-Leakage SRAM for Code and Data
Efficient Architecture
Parts of TI-RTOS, Drivers, and Bootloader placed in ROM for optimized code size.
RoHS-Compliant Package Options
  • 7-mm × 7-mm RGZ VQFN48 (30 GPIOs)
  • 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
  • 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
Peripheral Features
  • All Digital Peripheral Pins Can Be Routed to Any GPIO
  • Four General-Purpose Timer Modules (Eight 16-Bit or Four 32-Bit Timers, PWM Each)
  • 12-Bit ADC, 200 ksamples/s, 8-Channel Analog MUX
  • Continuous Time Comparator
  • Ultra-Low-Power Clocked Comparator
  • Programmable Current Source
  • UART, 2× SSI (SPI, MICROWIRE, TI)
  • I2C, I2S
  • Real-Time Clock (RTC)
  • AES-128 Security Module
  • True Random Number Generator (TRNG)
  • Support for Eight Capacitive Sensing Buttons
  • Integrated Temperature Sensor
Part Number Specifications
Part Number Package Body Size (Nom)
CC1310F128RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F128RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F128RSMVQFN (32)4.00 mm × 4.00 mm
CC1310F64RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F64RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F64RSMVQFN (32)4.00 mm × 4.00 mm
CC1310F32RGZVQFN (48)7.00 mm × 7.00 mm
CC1310F32RHBVQFN (32)5.00 mm × 5.00 mm
CC1310F32RSMVQFN (32)4.00 mm × 4.00 mm
CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash CC1310F128RHBR SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz Wireless MCU With 128kB Flash
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
