MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
Specifications
Brand Name :
TI
Model Number :
MSP430F4250IDL
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :

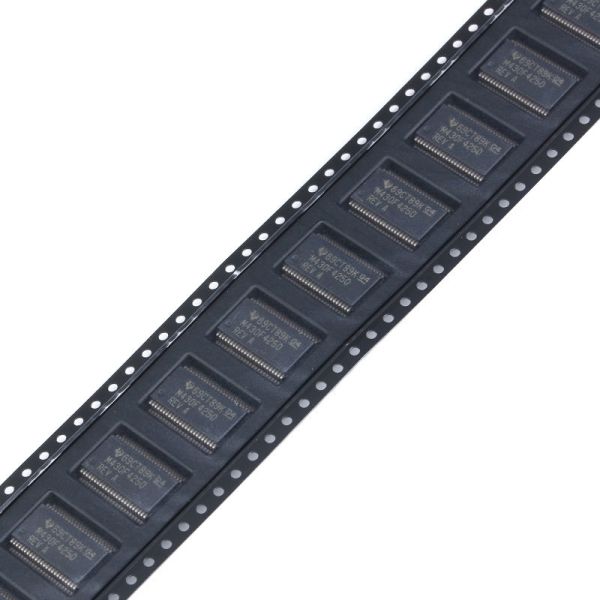

T/R
Product Category: :
MCU
Max Speed (MHz) :
8MHz
Data Bus Width: :
16 Bit
Program Memory Size: :
16KB
Data RAM Size: :
256Byte
operating voltage :
1.8 V to 3.6 V
Number of I/Os: :
32
Description
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Low-Power
The MSP430F4250IDL is a 16-bit ultra-low-power microcontroller designed for energy-efficient applications requiring advanced analog capabilities and LCD driving functionality.
Key Features
  • Low supply-voltage range: 1.8 V to 3.6 V
  • Ultralow-power consumption:
    • Active mode: 250 μA at 1 MHz, 2.2 V
    • Standby mode: 1.1 μA
    • Off mode (RAM retention): 0.1 μA
  • Five power saving modes
  • Wake-up from standby mode in less than 6 μs
  • 16-bit RISC architecture, 125-ns instruction cycle time
  • 16-bit sigma-delta A/D converter with internal reference and five differential analog inputs
  • 12-bit D/A converter
  • 16-bit Timer_A with three capture/compare registers
  • Brownout detector
  • Bootstrap loader
  • Serial onboard programming, no external programming voltage needed
  • Programmable code protection by security fuse
  • Integrated LCD driver with contrast control for up to 56 segments
MSP430x42x0 Family Members
  • MSP430F4250: 16KB+256B Flash Memory, 256B RAM
  • MSP430F4260: 24KB+256B Flash Memory, 256B RAM
  • MSP430F4270: 32KB+256B Flash Memory, 256B RAM
For complete module descriptions, see the MSP430x4xx Family User's Guide, Literature Number SLAU056
For additional device information, see the MSP430F42x0 Device Erratasheet, Literature Number SLAZ022
Available part numbers: MSP430F4250IDL, MSP430F4250IRGZ, MSP430F4260IDL, MSP430F4260IRGZ, MSP430F4270IDL, MSP430F4270IRGZ −40°C to 85°C
MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr MSP430F4250IDL 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
