MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
Specifications
Brand Name :
TI
Model Number :
MSP430F4152IPMR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
MCU
Max Speed (MHz) :
8MHz
Data Bus Width: :
16 Bit
Program Memory Size: :
16KB
Data RAM Size: :
512Byte
operating voltage :
1.8V~3.6V
Number of I/Os: :
56
Description
MSP430F4152IPMR 16-bit Microcontrollers
16-bit Ultra-Low-Power MCU with 8KB Flash, 512B RAM, 10-bit ADC
Key Features
  • Low Supply-Voltage Range: 1.8V to 3.6V
  • Ultralow Power Consumption:
    • Active Mode: 220μA at 1MHz, 2.2V
    • Standby Mode: 0.9μA
    • Off Mode (RAM Retention): 0.1μA
  • Five Power-Saving Modes
  • Wake-Up From Standby Mode in Less Than 6μs
  • Internal Very Low Power, Low-Frequency Oscillator
  • 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
  • 16-Bit Timer_A With Three Capture/Compare Registers
  • 16-Bit Timer_A With Five Capture/Compare Registers
  • Two Universal Serial Communication Interfaces (USCIs):
    • USCI_A0: Enhanced UART, IrDA, Synchronous SPI
    • USCI_B0: I2C, Synchronous SPI
  • Supply Voltage Supervisor/Monitor With Programmable Level Detection
  • Integrated LCD Driver With Contrast Control for Up to 144 Segments
  • Basic Timer With Real Time Clock Feature
  • Brownout Detector
  • On-Chip Comparator for Analog Signal Compare Function or Slope A/D
  • 10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller
  • Serial Onboard Programming, No External Programming Voltage Needed
  • Programmable Code Protection by Security Fuse
  • Bootstrap Loader
  • On-Chip Emulation Module
Family Members
  • MSP430F4152: 16KB+256B Flash Memory, 512B RAM
  • MSP430F4132: 8KB+256B Flash Memory, 512B RAM
Available Packages
64-Pin QFP Package and 48-Pin QFN Package
Part Numbers
MSP430F4152IPM, MSP430F4132IPM, MSP430F4152IRGZ, MSP430F4132IRGZ

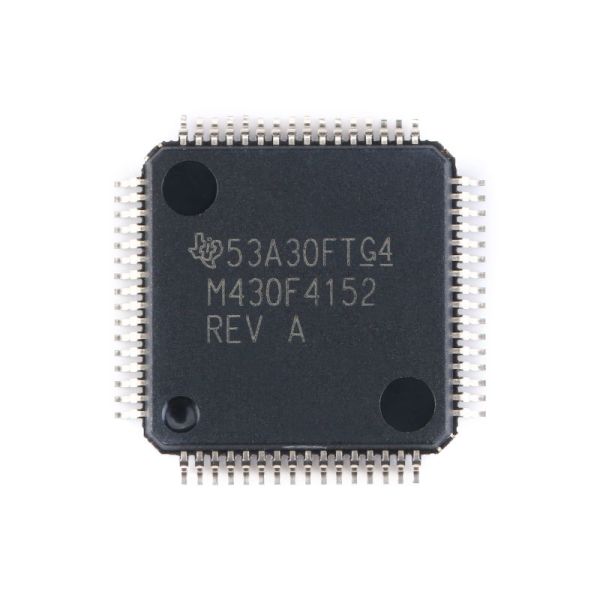

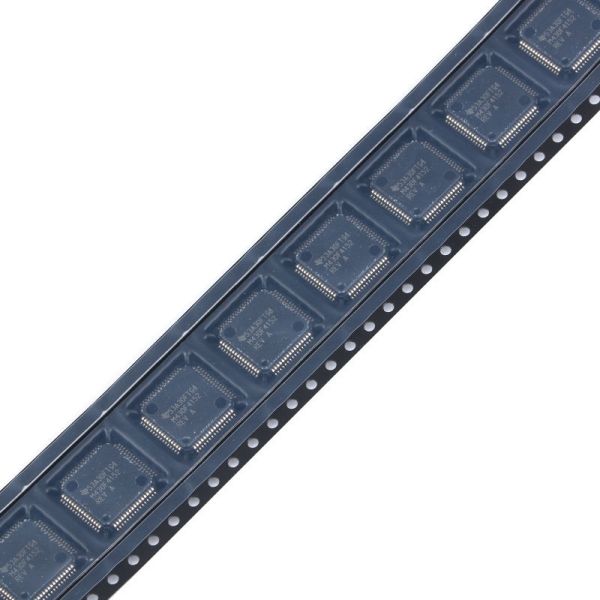

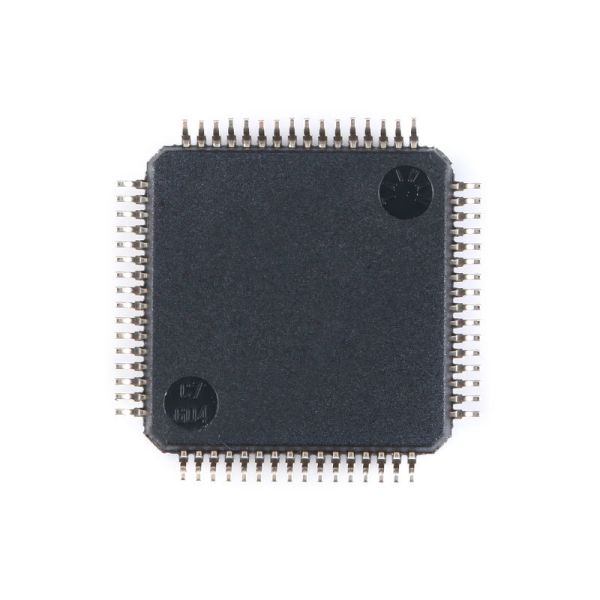

Product Images
MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM MSP430F4152IPMR 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC A 595-MSP430F4152IPM
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price? We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time? Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms? Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options? Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
