TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
Specifications
Brand Name :
TI
Model Number :
TMS320LF2407APGEA
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
Digital Signal Processors & Controllers - DSP, DSC
Maximum Clock Frequency: :
40 MHz
Package / Case :
LQFP-144
Minimum Operating Temperature: :
- 40 °C
Maximum Operating Temperature: :
+ 85 °C
operating voltage :
2.4V~3.6V
Number of I/Os: :
41
Description
TMS320LF2407APGEA Digital Signal Processors & Controllers
16-Bit Fixed Point DSP DSC With Flash Memory
Product Overview
The TMS320LF2407APGEA is part of the TMS320LF240xA and TMS320LC240xA families of digital signal processors and controllers, offering high-performance DSP capabilities with integrated flash memory for industrial control applications.
Compatible Devices
TMS320LF2407A, TMS320LF2406A, TMS320LF2403A, TMS320LF2402A, TMS320LC2406A, TMS320LC2404A, TMS320LC2403A, TMS320LC2402A DSP Controllers
Key Features
High-Performance Static CMOS Technology
  • 25-ns Instruction Cycle Time (40 MHz)
  • 40-MIPS Performance
  • Low-Power 3.3-V Design
TMS320C2xx DSP CPU Core
  • Code-Compatible With F243/F241/C242
  • Instruction Set and Module Compatible With F240
Memory Options
  • Flash (LF) and ROM (LC) Device Options
  • Up to 32K Words × 16 Bits of Flash EEPROM (4 Sectors) or ROM
  • Programmable "Code-Security" Feature for On-Chip Flash/ROM
  • Up to 2.5K Words × 16 Bits of Data/Program RAM
  • 544 Words of Dual-Access RAM
  • Up to 2K Words of Single-Access RAM
  • Boot ROM (LF240xA Devices) with SCI/SPI Bootloader
Event Manager Modules
  • Up to Two Event-Manager (EV) Modules (EVA and EVB)
  • Two 16-Bit General-Purpose Timers per Module
  • Eight 16-Bit Pulse-Width Modulation (PWM) Channels
  • Three-Phase Inverter Control
  • Center- or Edge-Alignment of PWM Channels
  • Emergency PWM Channel Shutdown With External PDPINTx Pin
  • Programmable Deadband (Deadtime) Prevents Shoot-Through Faults
  • Three Capture Units for Time-Stamping of External Events
  • Input Qualifier for Select Pins
  • On-Chip Position Encoder Interface Circuitry
  • Synchronized A-to-D Conversion
  • Designed for AC Induction, BLDC, Switched Reluctance, and Stepper Motor Control
Additional Features
  • External Memory Interface (LF2407A) - 192K Words × 16 Bits Total Memory
  • Watchdog (WD) Timer Module
  • 10-Bit Analog-to-Digital Converter (ADC) with 8 or 16 Multiplexed Input Channels
  • 500-ns MIN Conversion Time
  • Selectable Twin 8-State Sequencers Triggered by Two Event Managers
  • Controller Area Network (CAN) 2.0B Module (LF2407A, 2406A, 2403A)
  • Serial Communications Interface (SCI)
  • 16-Bit Serial Peripheral Interface (SPI)
  • Phase-Locked-Loop (PLL)-Based Clock Generation
  • Up to 40 Individually Programmable, Multiplexed General-Purpose Input/Output (GPIO) Pins
  • Up to Five External Interrupts (Power Drive Protection, Reset, Two Maskable Interrupts)
  • Power Management with Three Power-Down Modes
  • Ability to Power Down Each Peripheral Independently
  • Real-Time JTAG-Compliant Scan-Based Emulation, IEEE Standard 1149.1 (JTAG)
Package Options
  • 144-Pin LQFP PGE (LF2407A)
  • 100-Pin LQFP PZ (2406A, LC2404A)
  • 64-Pin TQFP PAG (LF2403A, LC2403A, LC2402A)
  • 64-Pin QFP PG (2402A)
Extended Temperature Options
  • A: −40°C to 85°C
  • S: −40°C to 125°C
Orderable Part Numbers
Orderable Part Number Package Pins Operating Temperature RoHS
TMS320LF2406APZS.A LQFP (PZ) 100 -40 to 125°C Yes
TMS320LF2406APZSG4 LQFP (PZ) 100 -40 to 125°C Yes
TMS320LF2406APZSG4.A LQFP (PZ) 100 -40 to 125°C Yes
TMS320LF2407APGEA LQFP (PGE) 144 -40 to 85°C Yes
TMS320LF2407APGEA.A LQFP (PGE) 144 -40 to 125°C Yes
TMS320LF2407APGEG4 LQFP (PGE) 144 -40 to 85°C Yes
TMS320LF2407APGES LQFP (PGE) 144 -40 to 125°C Yes
TMS320LF2407APGES.A LQFP (PGE) 144 -40 to 125°C Yes

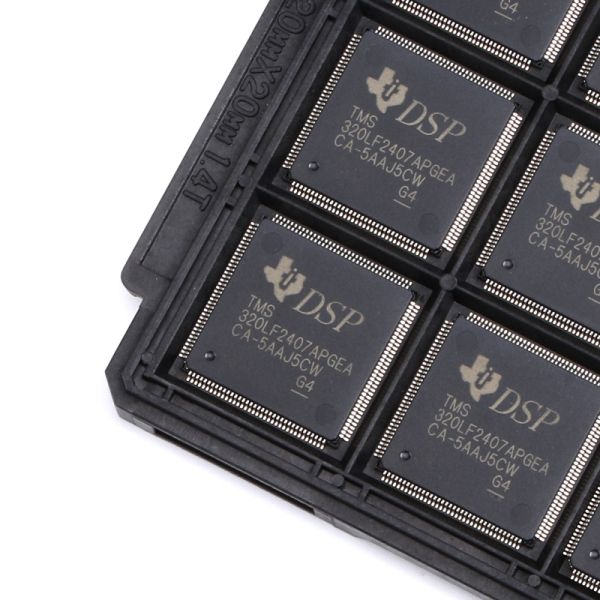

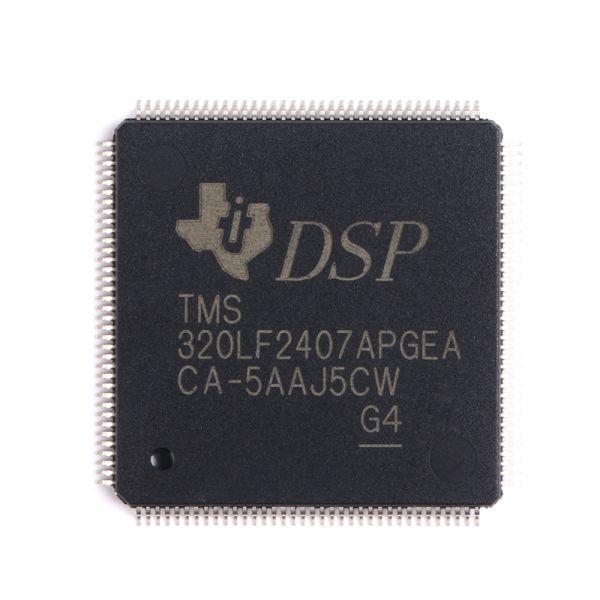

Product Images
TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash TMS320LF2407APGEA Digital Signal Processors & Controllers - DSP DSC 16-Bit Fixed Point D SP With Flash
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
