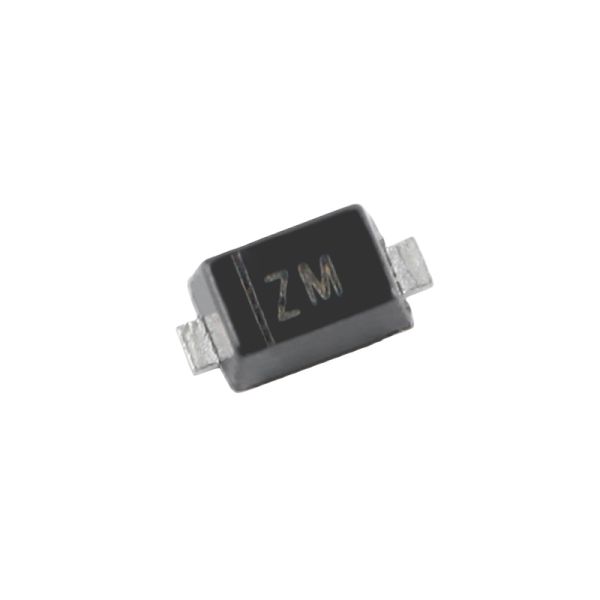

CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage
Specifications
Brand Name :
CJ
Model Number :
CESD12VD5
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8day

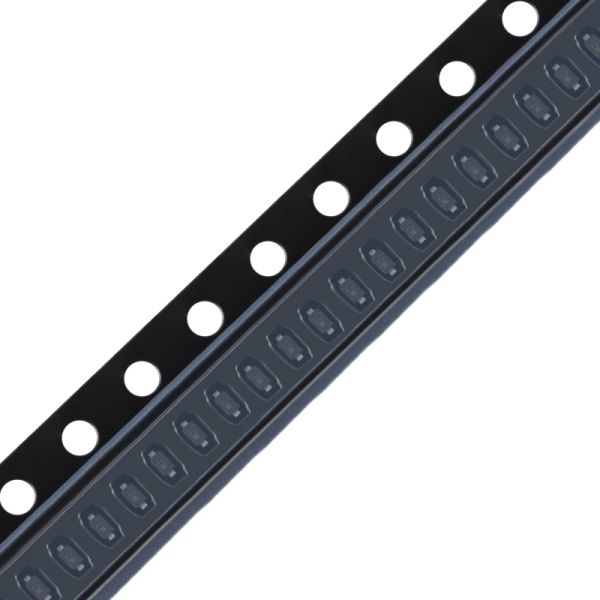

Packaging Details :
T/R
Reverse Cut-off Voltage (Vrwm) :
12V
Clamping Voltage :
24V
Peak PulsePower (Ppp) :
9A@8/20us
operating temperature :
-
Protection Level :
IEC 61000-4-2
C-Junction Capacitance :
45pF
Description

CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage

Features
  • Uni-directional ESD protection of one line
  • Reverse stand−off voltage: 12V
  • Low reverse clamping voltage
  • Low leakage current
  • Excellent package:1.20mm×0.80mm×0.60mm
  • Fast response time
  • JESD22-A114-B ESD Rating of class 3B per humanbody model
  • IEC 61000-4-2 Level 4 ESD protection
Applications
  • Computers and peripherals
  • Digital Cameras
  • Audio and video equipment
  • Cellular handsets and accessories
  • Portable electronics
  • Mp3 Players
  • Other electronics equipments communication systems
Technical Parameters
Parameter Symbol Test conditions Min Typ Max Unit
Reverse stand off voltage VRWM(1) 12 V
Reverse leakage current IR VRWM=12V 1 μA
Breakdown voltage V(BR) IT=1mA 14.1 16.5 V
Clamping voltage VC(2) IPP=9 A 24 V
Forward voltage VF IF=10mA 0.9 V
Junction capacitance CJ VR=0V,f=1MHz 45 pF

CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage

CESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off VoltageCESD12VD5 Uni-direction ESD Protection Diode Unidirectional ESD Protection Device With 12V Reverse Cut-off Voltage

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
