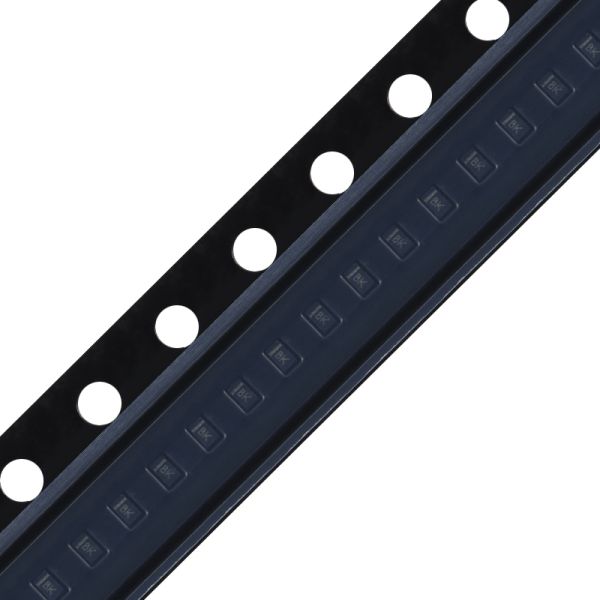

TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
Specifications
Brand Name :
TI
Model Number :
TPD1E05U06DPYR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Product Catalog :
TVS/ESD
Reverse Cut-offVoltage (Vrwm) :
5.5V
Clamp Voltage :
14V
Pulse PeakCurrent (lpp) :
2.5A@8/20us
Peak PulsePower (Ppp) :
40W@8/20us
Breakdown Voltage :
8.5V
Description
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
Key Features
  • IEC61000-4-2 Level 4 ESD protection: ±12kV contact discharge, ±15kV air-gap discharge
  • IEC 61000-4-4 EFT protection - 80A (5/50ns)
  • IEC 61000-4-5 surge protection -2.5A (8/20μs)
  • IO capacitance: 0.42pF to 0.5pF (typical)
  • DC breakdown voltage: 6.5V (minimum)
  • Ultra-low leakage current: 10nA (maximum)
  • Low ESD clamping voltage
  • Industrial temperature range: -40°C to +125°C
  • Simple through-wiring package
  • Industry-standard SOD-523 package (1.60mmx0.80mmx0.65mm)
Applications
  • HDMI 1.4b
  • HDMI 2.0
  • USB 3.0
  • MHL
  • LVDS interface
  • DisplayPort
  • PCI-express
  • eSata interface
  • V-by-One HS
Product Variants
PART NUMBER CHANNEL COUNT PACKAGE(1)
TPD1E05U06 1 channel DPY (X1SON, 2)
DYA (SOD-523, 2)
TPD4E05U06 4 channels DQA (USON, 10)
TPD6E05U06 6 channels RVZ (USON, 14)
TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS) TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS) TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS) TPD1E05U06DPYR Electrostatic Discharge (ESD) Protection Diodes Based On Unidirectional Transient Voltage Suppressors (TVS)
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
