Specifications
Brand Name :
Leiditech
Model Number :
CH412Z
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8day
Packaging Details :
T/R
Reverse Cut-off Voltage (Vrwm) :
5V
Clamping Voltage :
20V
Peak PulsePower (Ppp) :
150W@8/20us
operating temperature :
-40℃~+125℃
Protection Level :
IEC 61000-4-5；IEC 61000-4-2
C-Junction Capacitance :
90pF
Description

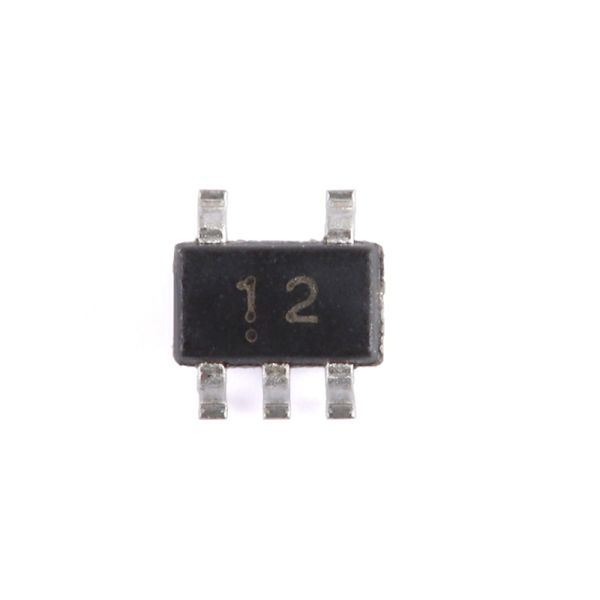

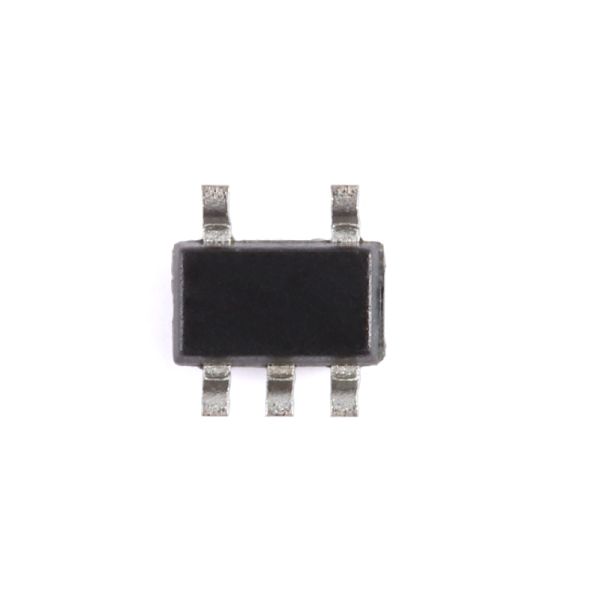

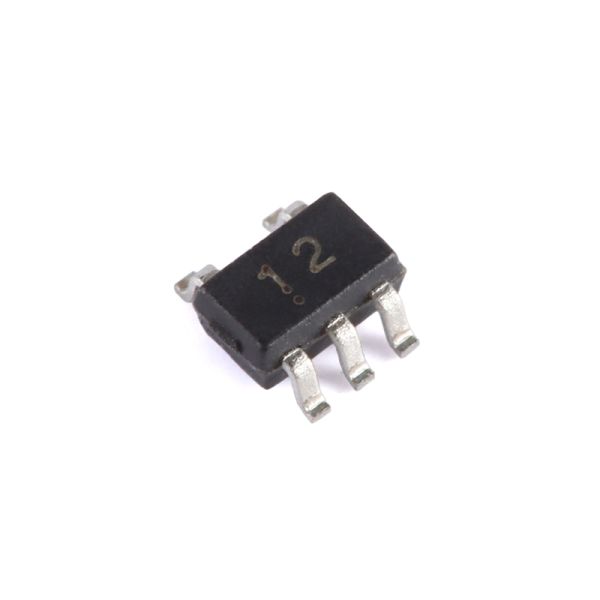

CH412Z Low Capacitance Array For ESD Protection 5V Application-Computer Printer

Features
  • Ultra low leakage: nA level
  • Operating voltage: 5V
  • Low clamping voltage
  • Complies with following standards:
    • IEC 61000-4-2 (ESD) immunity test
      • Air discharge: ±30kV
      • Contact discharge: ±25kV
    • IEC61000-4-5 (Lightning) 6A (8/20μs)
  • RoHS Compliant
Applications
  • Computers
  • Printers
  • Communication systems
  • Cellular phones handsets and accessories
  • Wireline and wireless telephone sets
  • Set top boxes
Parameter
Parameter Symbol Value Unit
Peak Pulse Power (8/20µs) Ppp 150 W
ESD per IEC 61000−4−2 (Air) VESD ±30 Kv
ESD per IEC 61000−4−2 (Contact) ±25
Operating Temperature Range TJ -40 to +125 ℃
Storage Temperature Range TSTJ -40 to +125 ℃
CH412Z Low Capacitance Array For ESD Pr Q Uad Otection 5V Application-Computer Printer CH412Z Low Capacitance Array For ESD Pr Q Uad Otection 5V Application-Computer Printer CH412Z Low Capacitance Array For ESD Pr Q Uad Otection 5V Application-Computer Printer CH412Z Low Capacitance Array For ESD Pr Q Uad Otection 5V Application-Computer Printer

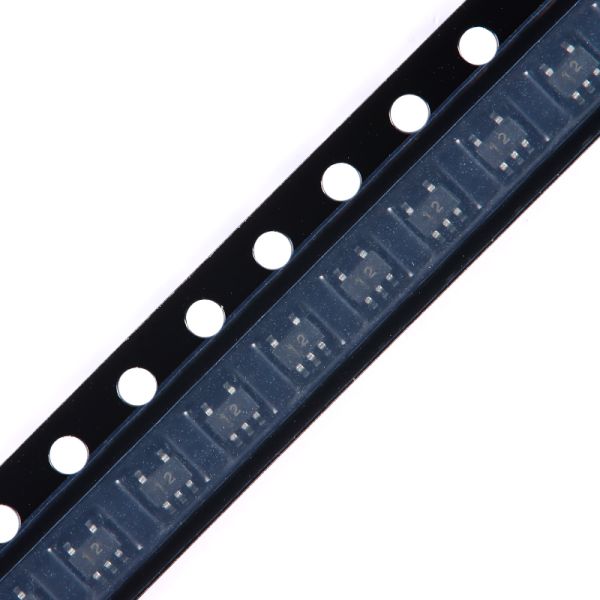

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
