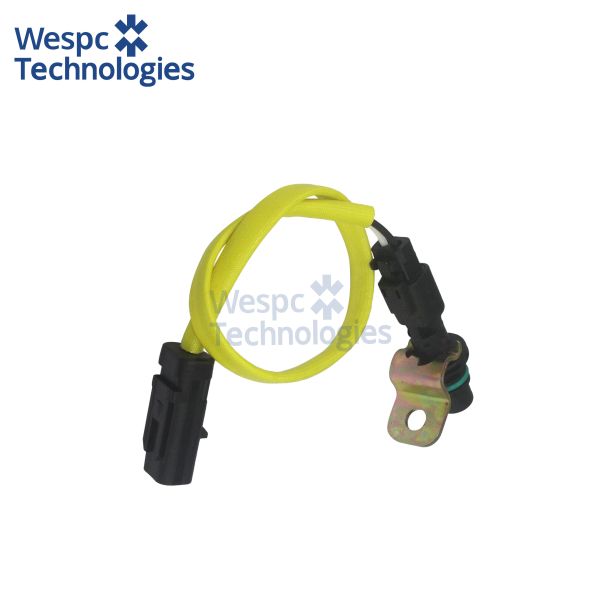

WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
Specifications
Brand Name :
WESPC
Model Number :
KRP1705
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$11-$15(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Crankshaft Speed Sensor KRP1705
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806


Brand Name WESPC
Place of Origin China

Part Number

 KRP1705
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

Crankshaft Speed Sensor KRP1705 is designed for the Perkins 2206, 2506 and 2806 series turbocharged diesel engines (13–18 L). These power units are fitted to FG Wilson generator sets from 400 kVA up to 750 kVA, Massey Ferguson MF 8700 S high-horsepower tractors, large-capacity combine harvesters (MF IDEAL 9T), 20–30 ton hydraulic excavators, wheel loaders, plus marine auxiliary engines and drilling rigs employed in both agricultural and heavy industrial sectors worldwide.

Technical specifications:

Thread interface M16 × 1.5 with 22 mm hex and 37 mm probe reach allow direct mounting into the flywheel housing adjacent to the crankshaft reluctor ring. Output signal is digital Hall-effect, 3-wire, 8–32 Vdc supply, 0–8 kHz frequency range corresponding to 0–4 000 r/min crankshaft speed, with built-in reverse-polarity and load-dump protection to +40 Vdc.


Material & performance features:

Probe body is precision-machined from 1.4305 (AISI 303) stainless steel for superior resistance to engine oil, coolant splash and road salt; the sensing tip is over-moulded in high-temperature PPS polymer rated to 150 °C and houses a rare-earth magnet for stable signal amplitude across the full temperature envelope.


Interchange part numbers:

KRP1705, 10000-17468, 1000017468, 258-4521, 4224834M1, 4222201M1, 2755A013.
