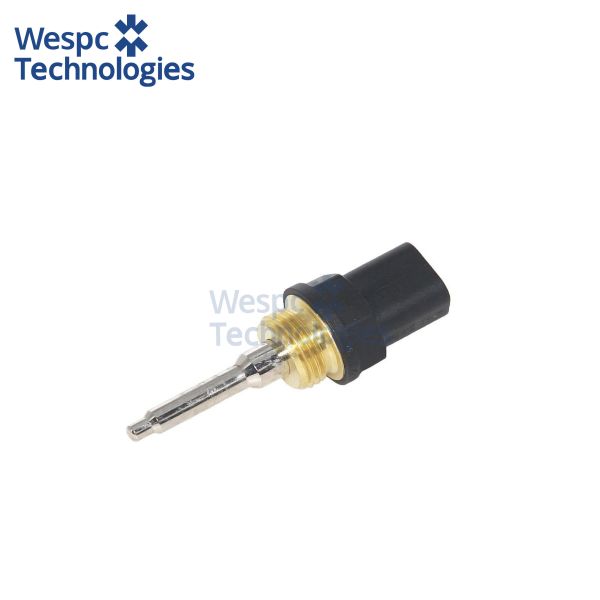

WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
Specifications
Brand Name :
WESPC
Model Number :
2874A018
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$8-$10(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Temperature Sensor 2874A018
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine


Brand Name WESPC
Place of Origin China

Part Number

 2874A018
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

The 2874A018 temperature sensor is engineered for Perkins 1104C-44T, 1104C-E44, 1104C-E44T, 1104C-E44TA and 1106C-E60TA turbocharged four- and six-cylinder diesels, and is equally at home on the 404D-22, 404D-22T, 404D-22TA and 1006-6 derivatives. These power units are widely used across Massey Ferguson 5465, 6460, 6465, 6470, 6475, 6480, 7465, 7475 and 7480 tractors, combine harvesters, 40–150 kVA generator sets, tele-handlers and light industrial sweepers. In these applications the sensor screws into the thermostat housing or cylinder head coolant gallery and continuously measures engine coolant temperature, providing a precise resistance signal to the ECU. This allows the ECU to manage fuel injection timing, electric fan engagement and cold-start aids for optimum combustion efficiency and emission compliance.

Technical specifications:

The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 115 g mass. Its resistance falls from 10 kΩ ±3 % at 25 °C to 184 Ω ±10 % at 100 °C, delivering a steep, repeatable curve that the ECU can resolve to ±1 °C. Response time from ambient to operating temperature in flowing coolant is less than 15 seconds.


Material & performance features:

The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and excellent long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin, achieving IP67 ingress protection.


Interchange part numbers:

2874A018, 2874A002, 1754-0349, 4224820M1, 4226155M1, AG131215, WR131215, 268-436, 2874A019, 2874A020, 2874A021, 2874A022, 2874A023, 2874A024, 2874A025, 2874A026, 2874A027, 2874A028, 2874A029, 2874A030, 2874A031, 2874A032, 2874A033, 2874A034, 2874A035, 2874A036, 2874A037, 2874A038, 2874A039, 2874A040
