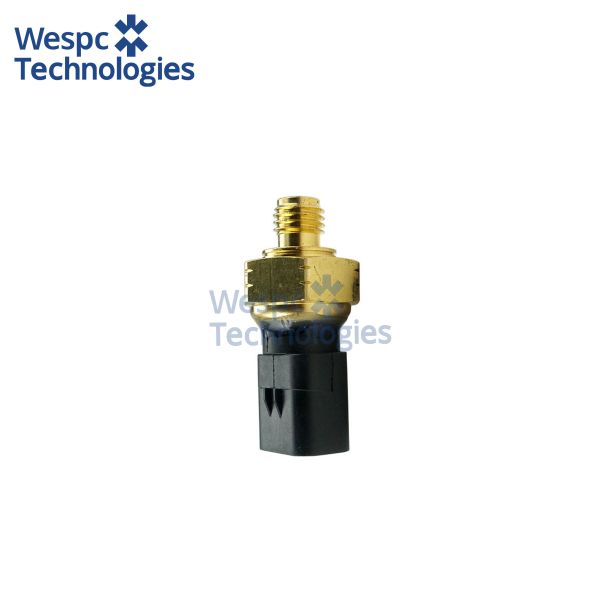

WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
Specifications
Brand Name :
WESPC
Model Number :
U5MK1088
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$15-$20(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Oil Pressure Sensor U5MK1088
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts


Brand Name WESPC
Place of Origin China

Part Number

 U5MK1088
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

The U5MK1088 oil pressure sensor is designed for the Perkins T4.236, AT4.236 and 4.236 turbocharged four-cylinder diesels (4.0 L), and is equally at home on the 1104C-E44, 1104C-E44T, 1104C-E44TA, 1106C-E60TA and 1106D-E66TA engines that drive Massey Ferguson 3635-399 tractors, JCB Loadall tele-handlers, FG Wilson 40–150 kVA generator sets and a broad range of industrial sweepers, forklifts and mobile compressors. In these applications the sensor continuously monitors main-gallery oil pressure, converting it to a 0–5 V analogue signal that is fed to the engine control unit; if pressure drops below the calibrated safety threshold the ECU triggers an immediate warning lamp and can derate or shut down the engine to protect bearings, turbochargers and high-pressure fuel pumps from catastrophic damage.

Technical specifications:

The unit is a three-wire piezo-resistive pressure transducer housed in a brass body with a 1/8" NPTF male thread and 19 mm hex. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V. Operating temperature spans –40 °C to +125 °C and the sensor withstands 1 000 h salt-spray exposure per ASTM B117.


Material & performance features:

The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.


Interchange part numbers:

U5MK1088, 274-6717, 2746717, 161-9926, 194-6725, 904-7030, 2874A021, 10000-05792, 5I-7570, 185-2462, 185-2463, 185-2464, 185-2465, 185-2466, 185-2467, 185-2468, 185-2469, 185-2470, 185-2471, 185-2472, 185-2473, 185-2474, 185-2475, 185-2476, 185-2477, 185-2478, 185-2479, 185-2480.
