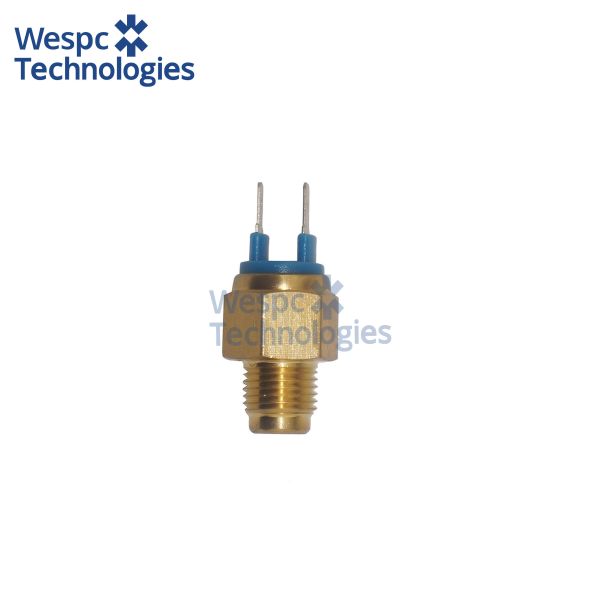

WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
Specifications
Brand Name :
WESPC
Model Number :
385720500 SW039
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$12-$15(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Water Temperature Sensor 385720500 SW039
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11


Brand Name WESPC
Place of Origin China

Part Number

 385720500 SW039
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

Water Temperature Sensor 385720500 SW039 is a side-pocket mounting sensor designed for the Perkins 1103 and 1104 family of naturally-aspirated and turbo-charged diesels (3.3 L and 4.4 L). Typical installations include Massey Ferguson 2400/3400/5400 orchard and utility tractors, MF 5700 SL narrow-vineyard tractors, mid-range combine harvesters, 50-120 kVA generating sets, plus compact wheel loaders, skid-steer loaders and 7-14 t hydraulic excavators employed in agriculture, construction and material-handling sectors world-wide.

Technical specifications:

Thread form M14 × 1.5 parallel, 19 mm hex, 18 mm reach; sensing range –40 °C to +140 °C through a precision NTC thermistor (2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, ±2 % tolerance). Electrical interface is a two-pin sealed Deutsch DT04-2P, IP67 rated, vibration resistant to 50 g, overall length 52 mm, mass 46 g.


Material & performance features:

Probe body is machined from 1.4571 (AISI 316Ti) stainless steel for total immunity to glycol, OAT coolants and galvanic corrosion; a copper crush-washer and fluorosilicone O-ring guarantee leak-free sealing up to 3 bar system pressure.


Interchange part numbers:

385720500, SW039, 10000-38572, 4224845M1, 4222212M1, 2755A025.


WESPC Water Temperature Sensor 385720500 SW039 For Perkins 402D-05 403D-07 404D-15 403C-11
