Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Modern DC24V Linear LED Wall Washer Facade Light For Villas Or City Landscape Projects
Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Sample Service :
Samples offered for quality evaluation
Supply Ability :
5000 Pieces Per Month
Production Capacity :
Full production lines, support large project orders
Delivery Time :
3-7 working days
Place of Origin :
China
Warranty Period :
3‑5 years warranty under normal use
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Description
  1. 1. Extruded Aluminum Alloy Housing for Efficient Heat Dissipation
    Built with extruded aluminum alloy shell that possesses outstanding heat conductivity; the optimized structural design achieves great cost performance while ensuring long-term stable heat dissipation to extend LED service life.
  2. 2. Stable SMD LED & Standard Optical Lens for Even Illumination
    Adopts high-stability SMD LED chips as light source, paired with standard professional optical lenses to output smooth, uniform wall washing light, eliminating uneven light spots and dark areas on building walls.
  3. 3. IP65 Weatherproof for General Outdoor Conditions
    IP65 full weatherproof sealing structure, perfectly adaptable to ordinary outdoor environments with frequent rain, dust and temperature fluctuations, reliable for long-term exterior use.
  4. 4. Dual Control Options & Simple Plug-and-Play Setup

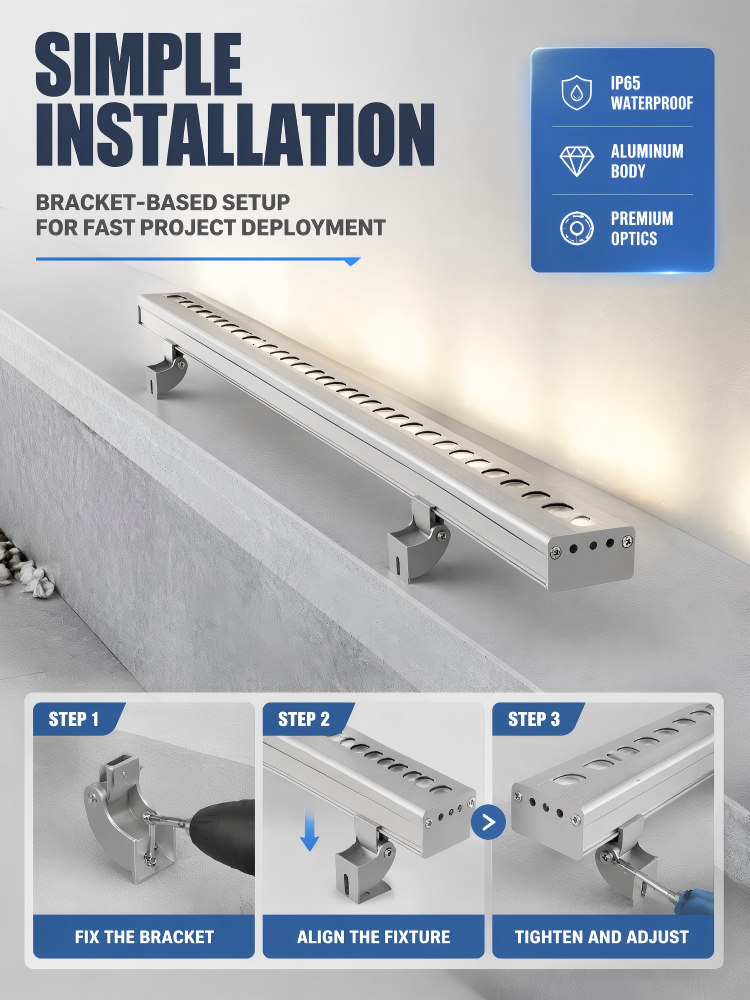

    Two flexible control options available: built-in self-programmed internal control with preloaded dynamic light modes, or single-color constant static light. Simple plug-and-play structure enables fast, effortless installation without complex wiring work.
  5. 5. Elegant Piano-Inspired Patented Design, Exclusive Private Mold
    This linear wall washer features piano-like sleek, streamlined elegant contours with our proprietary exclusive private mold and certified design patents. An ideal budget-friendly lighting solution for regular landscape, villa, bridge and building facade engineering projects.

Product Specifications

Voltage DC24V IP Rating IP65
Power 6W / 36W Housing Material Extruded Aluminum Profile, Grey
Light Color 2000-6500K / RGB / RGBW Cable & Connector PVC/ Rubber Round Cable / 5‑core Connector
Beam Angle 15*18° / 15* 45°/ 10°/ 30°/ 60° Cover Aluminum Cover
LED Brand & Quantity 6/36pcs OSRAM LEDs Luminous Efficacy 85lm/W
Control Mode ON/OFF / DMX512 CRI Ra80
Segment Control 1‑segment / 4‑segments / 8‑segments per 1M Dimensions L1000*W50*H62
Available Models
Model No. Size Voltage Power Light Source Effect / Control Mode
CXL-GQED36-M1-C1 L1000*W50*H62 DC24V 36W Monochrome Constant On
CXL-GQED36-M5a-C1 L504*W50*H62 DC24V 18W Monochrome Constant On
CXL-GQED36-M3a-C1 L255.5*W50*H62 DC24V 9W Monochrome Constant On
CXL-GQED24-M1-C1 L1000*W50*H62 DC24V 24W Monochrome Constant On
CXL-GQED24-M5a-C1 L500*W50*H62 DC24V 12W Monochrome Constant On
CXL-GQED24-M3a-C1 L250*W50*H62 DC24V 6W Monochrome Constant On
CXL-GQED18-M1-C1 L1000*W50*H62 DC24V 18W Monochrome Constant On
CXL-GQED18-M5a-C1 L500*W50*H62 DC24V 9W Monochrome Constant On
CXL-GQED18-M3a-C1 L333*W50*H62 DC24V 6W Monochrome Constant On
