Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
5000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

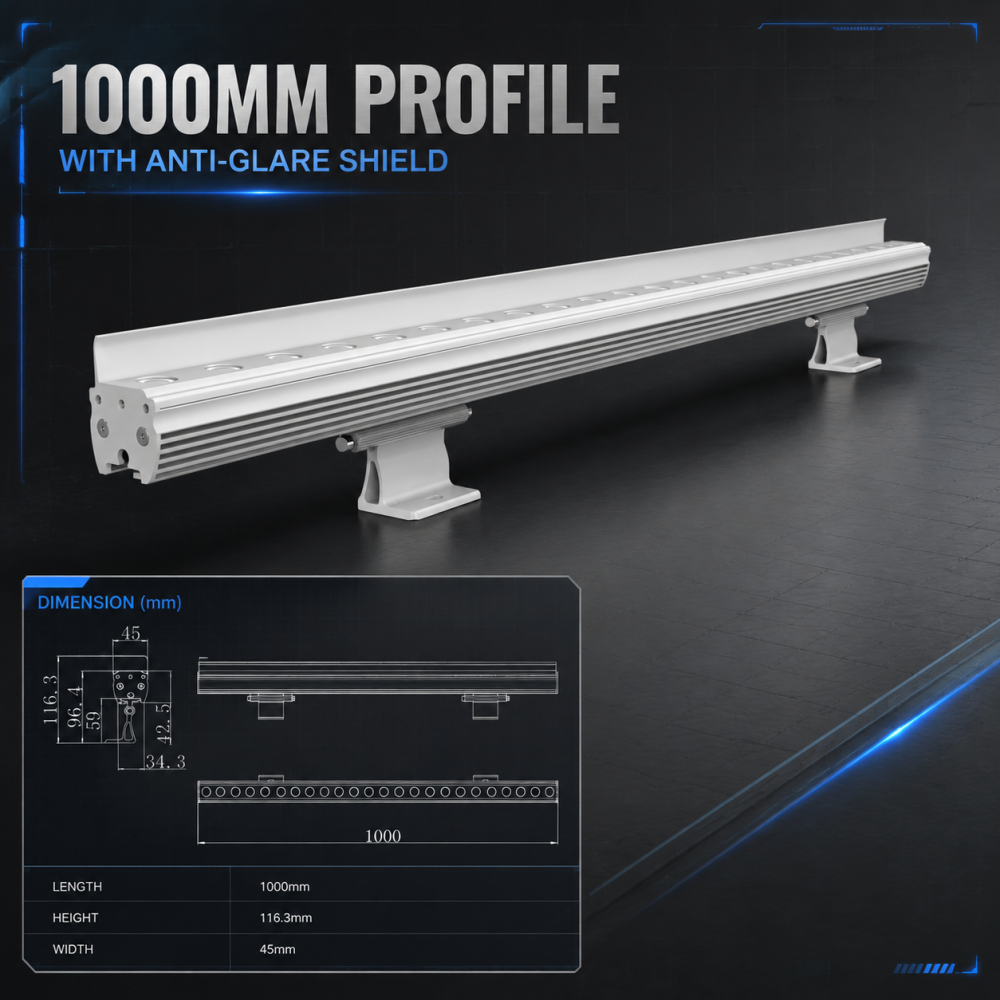

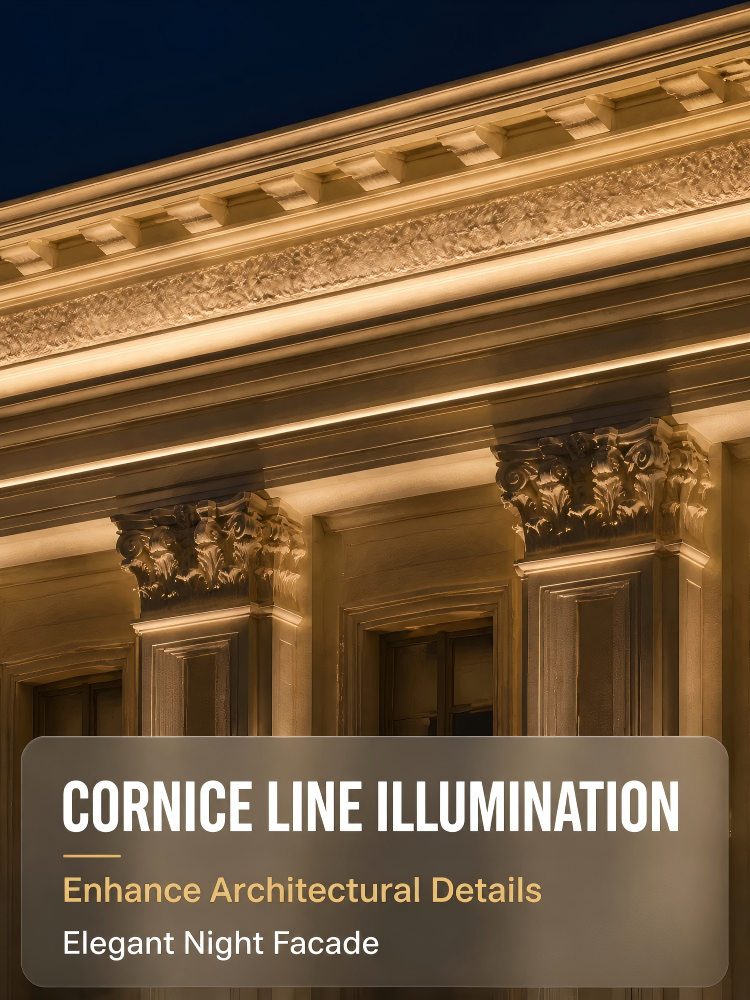

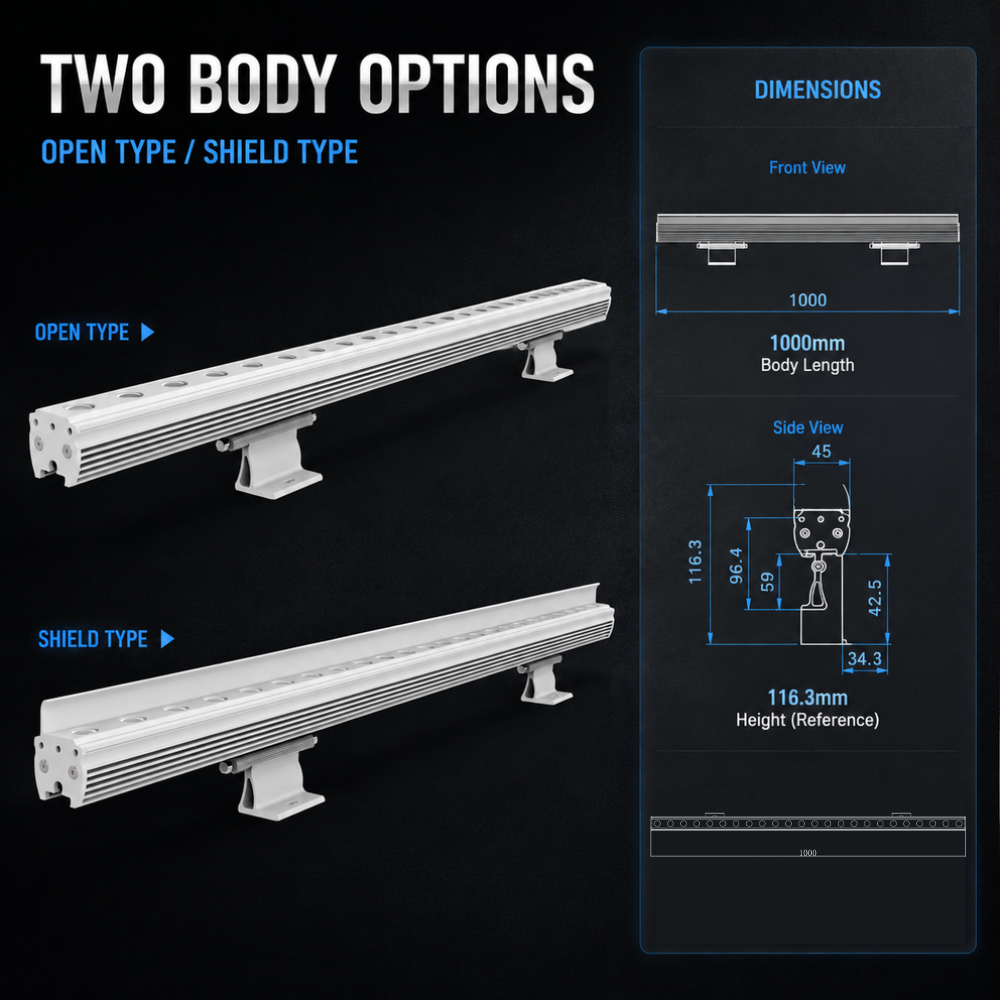

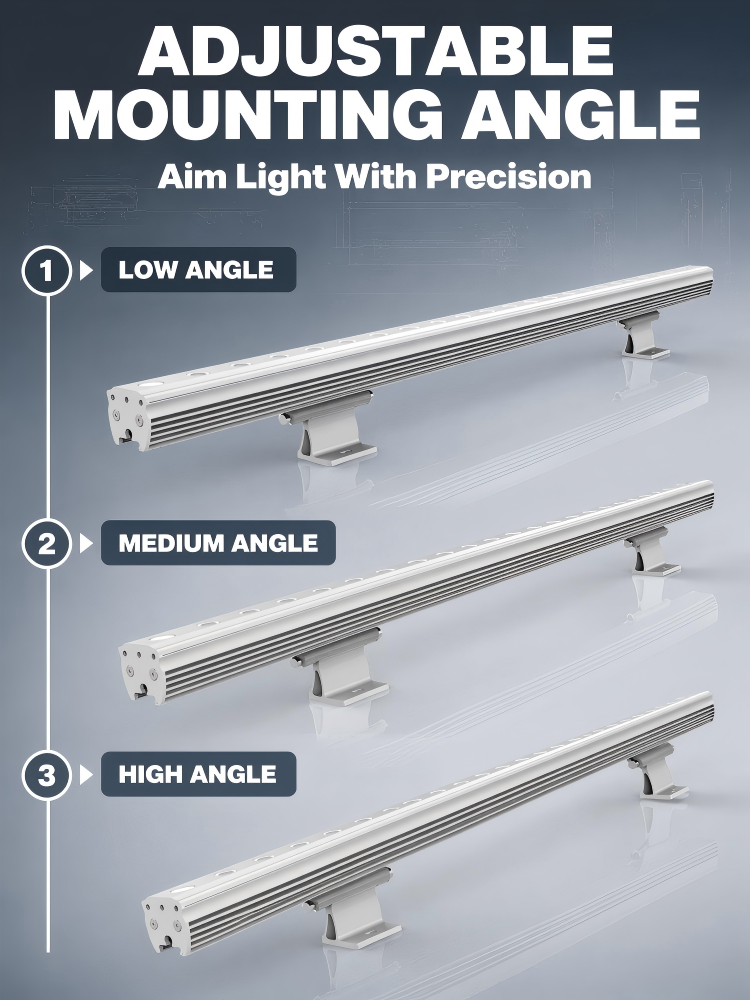

This DC24V linear LED wall washer series is designed for building facades, hotels, bridges, monuments and landscape lighting projects. Its slim 45 mm-wide housing and adjustable mounting brackets support precise wall washing and wall grazing while maintaining a clean architectural appearance.

Single-color constant-light versions are available in several lengths and power options: 1000 × 45 × 116 mm in 24W or 18W, 500 × 45 × 116 mm in 12W or 9W, 333 × 45 × 116 mm in 6W, and 250 × 45 × 116 mm in 6W. These options make it easier to match different installation spaces, illumination levels and project budgets.

For dynamic facade lighting, the series also includes DMX512-controlled RGB and RGBW versions. RGB models are available in 1000 mm at 24 × 1.5W, 500 mm at 12 × 1.5W and 250 mm at 6 × 1.5W. RGBW models are offered in the same lengths at 24 × 2W, 12 × 2W and 6 × 2W. Multiple fixtures can be combined to create synchronized color-changing effects for architectural projects. OEM and ODM customization and a minimum 3-year warranty are available.

Product Specifications

Voltage DC24V IP Rating IP65 / IP66/ IP67/ IP68
Power 24W Housing Material Die‑cast Aluminum
CCT 3000K/4000K/5000K/6000K Warranty 3-year
Beam Angle 60° / 90° / 120° / 180° / 360° Light Source Single color
LED Brand OSRAM LEDs Luminous Efficacy 90lm/W
Control Mode Constant Lighting/ DMX512 Control (RGB/RGBW)/ PWM Dimming/ DALI Control/Photocell Control CRI Ra80
Model No. CXL-XXM24-M1-C1 Dimensions L1000*W45*H116

Available Models

Model No. Size Voltage Power Light Source Effect / Control Mode
CXL-XXM24-M1-C1 L1000*W45*H116 DC24V 24W Single color Constant On
CXL-XXM24-M5a-C1 L500*W45*H116 DC24V 12W Single color Constant On
CXL-XXM24-M3a-C1 L250*W45*H116 DC24V 6W Single color Constant On
CXL-XXM18-M1-C1 L1000*W45*H116 DC24V 18W Single color Constant On
CXL-XXM18-M5a-C1 L500*W45*H116 DC24V 9W Single color Constant On
CXL-XXM18-M3a-C1 L333*W45*H116 DC24V 6W Single color Constant On
CXL-XXM24-M1-D3 L1000*W45*H116 DC24V 24*1.5W RGB 3‑in‑1 DMX512
CXL-XXM24-M5a-D3 L500*W45*H116 DC24V 12*1.5W RGB 3‑in‑1 DMX512
CXL-XXM24-M3a-D3 L250*W45*H116 DC24V 6*1.5W RGB 3‑in‑1 DMX512
CXL-XXM24-M1-D4 L1000*W45*H116 DC24V 24*2W RGBW 4‑in‑1 DMX512
CXL-XXM24-M5a-D4 L500*W45*H116 DC24V 12*2W RGBW 4‑in‑1 DMX512
CXL-XXM24-M3a-D4 L250*W45*H116 DC24V 6*2W RGBW 4‑in‑1 DMX512
