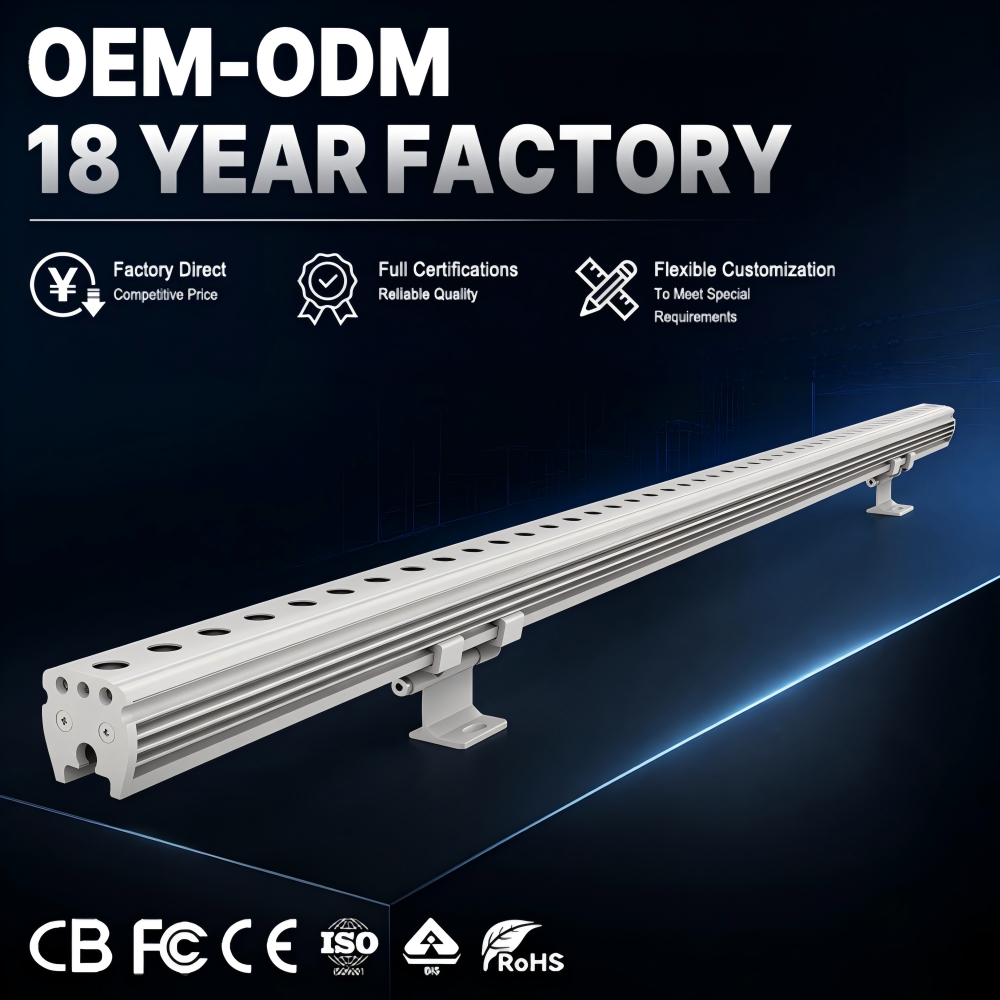

Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Panda Design DC24V Led Wash Washer Light Bar 12‑15W Outdoor Architectural LED Bar Light
Specifications
Certification :
CE/RoHS/FCC/LVD/EMC
Sample Service :
Samples offered for quality evaluation
Supply Ability :
5000 Pieces Per Month
Production Capacity :
Full production lines, support large project orders
Delivery Time :
3-7 working days
Place of Origin :
China
Warranty Period :
3‑5 years warranty under normal use
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Description

1. Panda Design Premium Series
Reliable fixture for architectural lighting projects.

2. Safe DC24V Low‑Voltage Input
12‑15W low‑power, energy‑saving performance.

3. Mini Compact Size
Perfect for narrow gaps, cornices and window outlines.

4. Outdoor Rated Construction

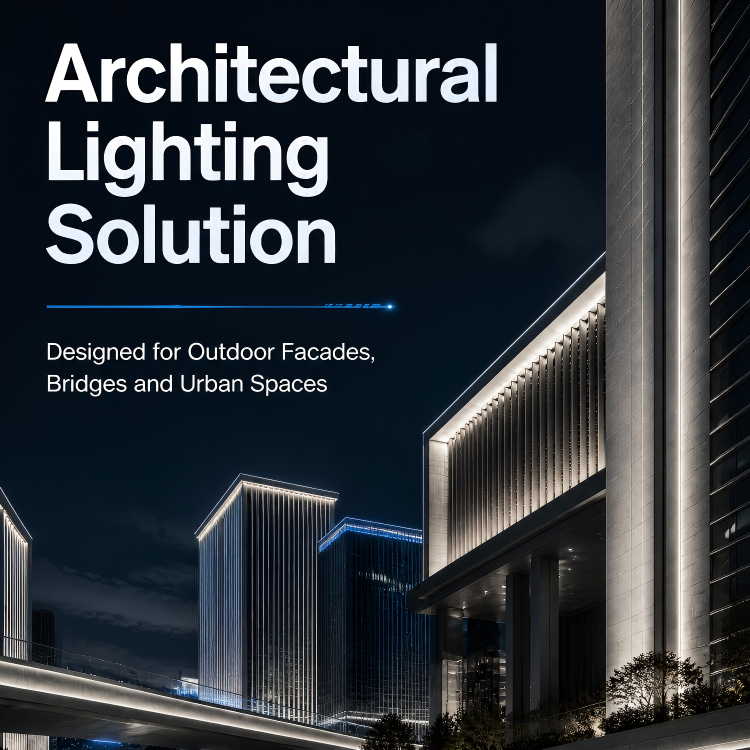

Suitable for building facade & exterior accent lighting.

5. Linear LED Bar Design
Uniform beam for commercial, hotel and municipal projects.


Product Specifications

Voltage DC24V / AC220V
IP Rating IP65
Power 3W / 15W

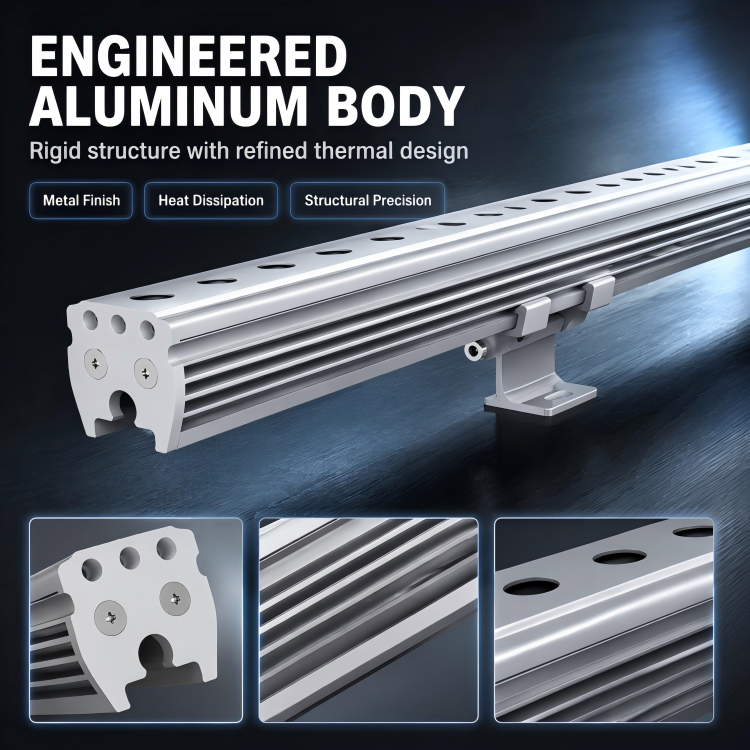

Housing Material Extruded Aluminum Profile, Grey
Light Color 2000-6500K / RGB / RGBW
Cable & Connector PVC/ Rubber Round Cable / 5‑core Connector
Beam Angle 30°
Cover Aluminum Cover
LED Brand & Quantity 12/48pcs OSRAM LEDs
Luminous Efficacy 65lm/W
Control Mode ON/OFF / DMX512
CRI Ra80
Segment Control 1‑segment / 4‑segments / 8‑segments per 1M
Dimensions L1000*W33*H78

Available Models

Model No. Size Voltage Power Effect / Control Mode
CXL-XXM12-M1-C1 L1000*W33*H78 DC24V 12W Constant On
CXL-XXM12-M5a-C1 L501*W33*H78 DC24V 6W Constant On
CXL-XXM12-M3a-C1 L251.5*W33*H78 DC24V 3W Constant On
CXL-XXM15-M1-C1 L1000*W33*H78 DC24V 15W Constant On
CXL-XXM15-M5a-C1 L501*W33*H78 DC24V 7.5W Constant On
CXL-XXM15-M3a-C1 L251.5*W33*H78 DC24V 3.5W Constant On
CXL-XXM12-M1-D3 L1000*W33*H78 DC24V 12W DMX512
CXL-XXM12-M5a-D3 L501*W33*H78 DC24V 6W DMX512
CXL-XXM12-M3a-D3 L251.5*W33*H78 DC24V 3W DMX512
CXL-XXM14-M1-D4 L1000*W33*H78 DC24V 14W DMX512
CXL-XXM14-M5a-D4 L501*W33*H78 DC24V 7W DMX512
CXL-XXM14-M3a-D4 L251.5*W33*H78 DC24V 3.5W DMX512
