Specifications
Certification :
CE/ROHS/FCC/EMC/LVD
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
10000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

12‑15W Surface Mount Anti‑Glare Linear Facade Light DC24V DMX512 IP66 For Building Exterior Lighting

‑ Surface‑mount installation with integrated anti‑glare baffle, effectively reduce light spill and improve building lighting visual effect

‑ High‑quality extruded aluminum profile housing, excellent heat dissipation for long‑term outdoor operation

‑ 12W‑14W adjustable power range, support single‑color, RGBW dynamic color output

‑ Compatible with DMX512 external control system for synchronized dynamic lighting effects

‑ Safe DC24V low‑voltage input, stable performance for large‑scale engineering projects

‑ IP66 high waterproof grade, reliable working under rain, frost and harsh outdoor environment

‑ 3‑5 years engineering warranty for large facade projects

‑ Custom housing color to match building tone for harmonious exterior appearance

‑ Support OEM & ODM customization: beam angle, color temperature, exclusive packaging & private label available

‑ Suitable for hotel facade, commercial complex, high‑rise building outline, urban night‑scape renovation projects

Product Specifications

Voltage DC24V IP Rating IP66
Power 12W/ 15W Housing Material Extruded Aluminum Profile, Gre
Light Color 1800K-6500K / RGB / RGBW Cable & Connector PVC Round Cable / SK18 2 or 5‑core Solid Pin Connector
Beam Angle 120° Cover aluminum cover, anti‑glare grille, light baffle
LED Brand & Quantity 48pcs LEDs Luminous Efficacy 80lm/W
Control Mode ON/OFF / DMX512

CRI

 Ra80

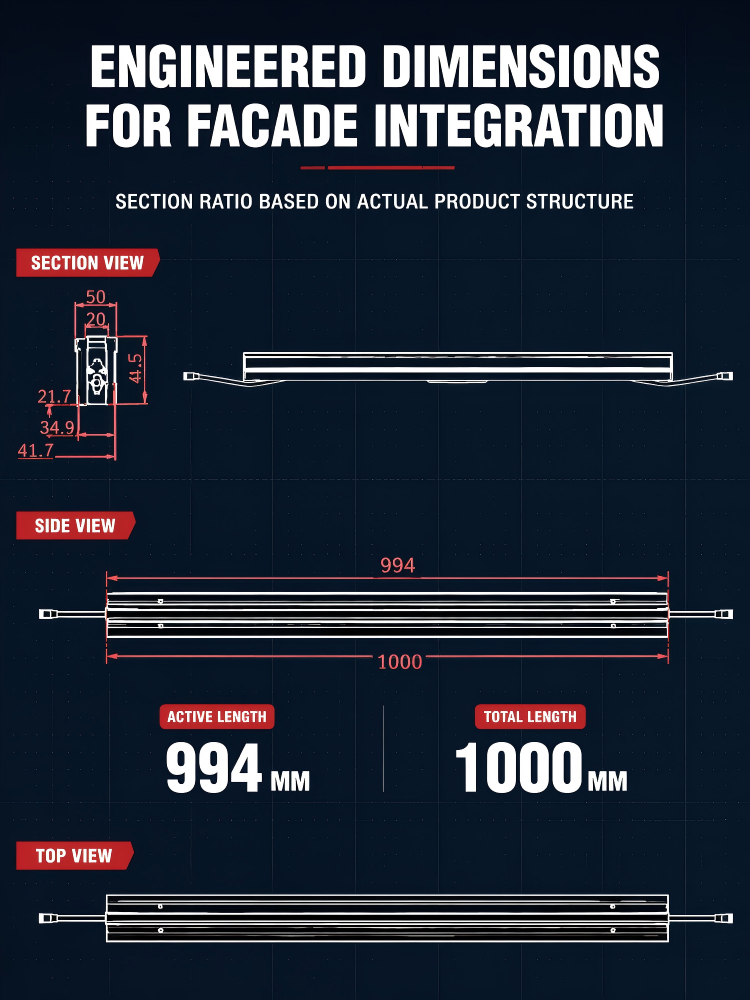

Segment Control 8‑segment Dimensions L1000*W60*H25MM

Available Models

Model No. Size(mm) Voltage Power Light Source Effect / Control Mode
CAL-TMMQ12-Ⅱ-M1-C1 L1000*W60*H25 DC24V 12W Monochrome ON/OFF
CAL-TMMQ12-Ⅱ-M5a-C1 L501*W60*H25 DC24V 6W Monochrome ON/OFF
CAL-TMMQ12-Ⅱ-M3a-C1 L251.5*W60*H25 DC24V 3W Monochrome ON/OFF
CAL-TMMQ15-Ⅱ-M1-C1 L1000*W60*H25 DC24V 15W Monochrome ON/OFF
CAL-TMMQ15-Ⅱ-M5a-C1 L501*W60*H25 DC24V 7.5W Monochrome ON/OFF
CAL-TMMQ15-Ⅱ-M3a-C1 L251.5*W60*H25 DC24V 3.5W Monochrome ON/OFF
CAL-TMMQ12-Ⅱ-M1-D3 L1000*W60*H25 DC24V 12W RGB 3-in-1 DMX512
CAL-TMMQ12-Ⅱ-M5a-D3 L501*W60*H25 DC24V 6W RGB 3-in-1 DMX512
CAL-TMMQ12-Ⅱ-M3a-D3 L251.5*W60*H25 DC24V 3W RGB 3-in-1 DMX512
CAL-TMMQ14-Ⅱ-M1-D4 L1000*W60*H25 DC24V 14W RGBW 4-in-1 DMX512
CAL-TMMQ14-Ⅱ-M5a-D4 L501*W60*H25 DC24V 7W RGBW 4-in-1 DMX512
CAL-TMMQ14-Ⅱ-M3a-D4 L251.5*W60*H25 DC24V 3.5W RGBW 4-in-1 DMX512
