Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Customizable 12W Exterior LED Linear Lights Facade Light With Hidden Cable Channel
Specifications
Certification :
CE/ROHS/FCC/EMC/LVD
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
10000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

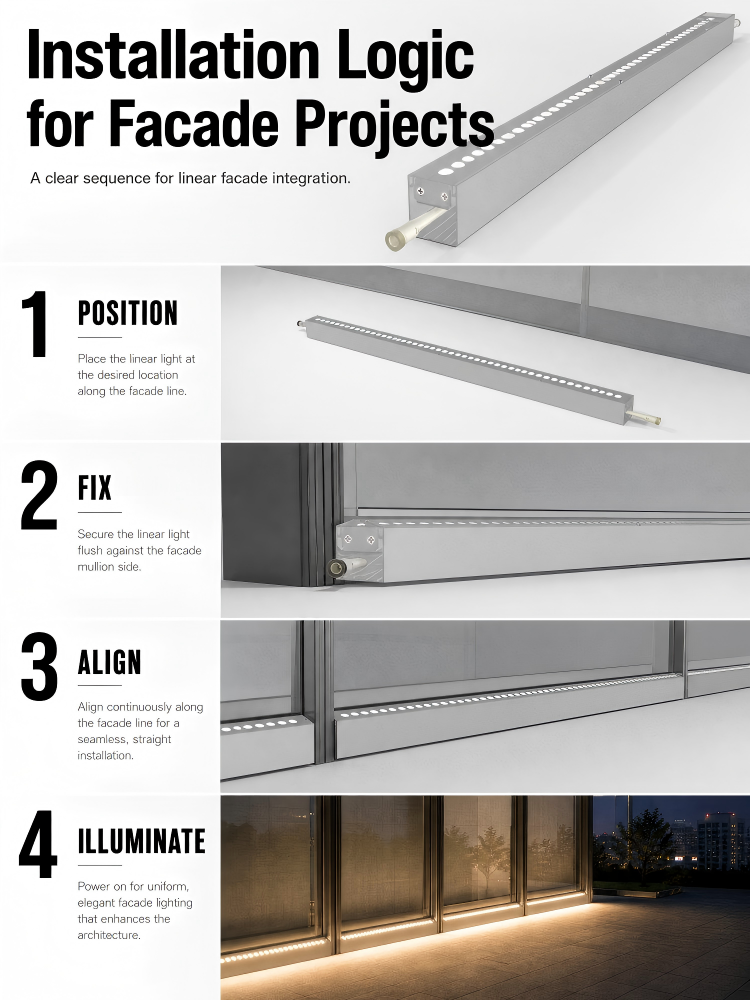

  • Built‑in hidden cable channel, realize fully concealed installation on curtain wall

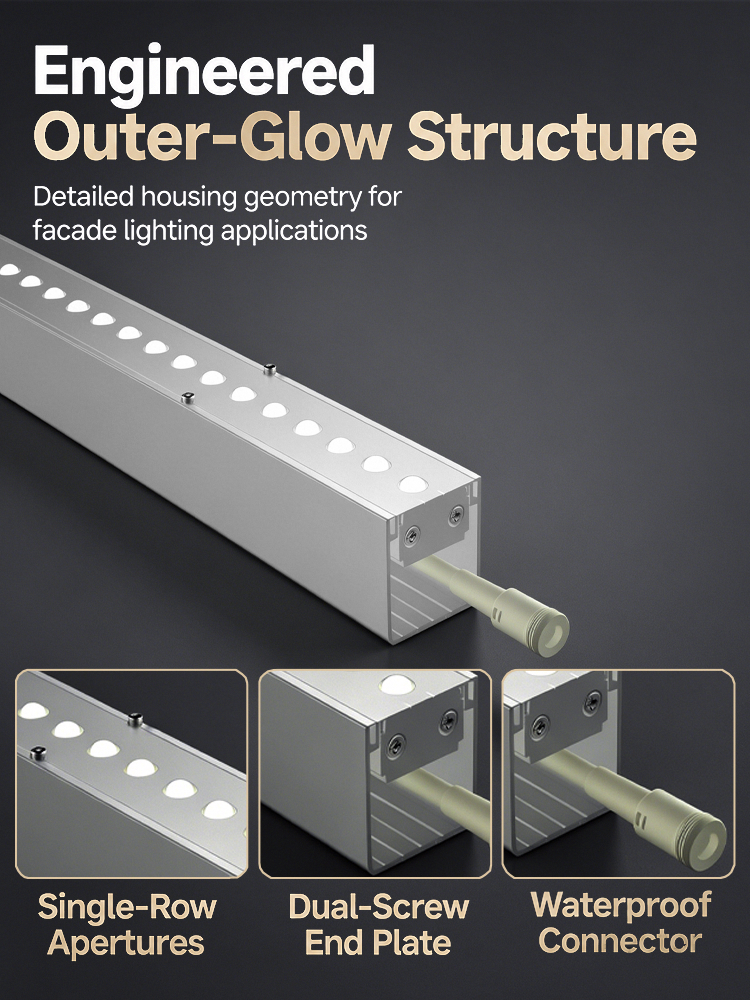

  • Extruded aluminum housing for excellent heat dissipation, anti-corrosion for long-term outdoor use
  • 3-5 years warranty for engineering projects
  • Support DMX512 external control and single-color constant on mode, RGBW dynamic color effect
  • Custom housing color to match wall tone perfectly, invisible installation effect
  • Support OEM & ODM customization: adjustable beam angle, customized color temperature, custom package & private label available
  • IP66 waterproof rating, stable performance under harsh outdoor environment
  • Suitable for curtain wall concealed installation, office building exterior, tourist attraction

Product Specifications

Voltage DC24V IP Rating IP66
Power 12W/ 14W Housing Material Extruded Aluminum Profile, Gre
Light Color 1800K-6500K / RGB / RGBW Cable & Connector PVC Round Cable / SK18 2 or 5‑core Solid Pin Connector
Beam Angle 120° Cover aluminum cover, anti‑glare grille, light baffle
LED Brand & Quantity 48pcs LEDs Luminous Efficacy 90lm/W
Control Mode ON/OFF / DMX512

CRI

 Ra80
Segment Control 8‑segment Dimensions L1000*W45*H50MM

Available Models

Model No. Size(mm) Voltage Power Light Source Effect / Control Mode
CAL-XC12-Ⅰ-M1-C1 L1000*W45*H50 DC24V 12W Monochrome ON/OFF
CAL-XC12-Ⅰ-M5a-C1 L501*W45*H50 DC24V 6W Monochrome ON/OFF
CAL-XC12-Ⅰ-M3a-C1 L251.5*W45*H50 DC24V 3W Monochrome ON/OFF
CAL-XC12-Ⅰ-M1-D3 L1000*W45*H50 DC24V 12W RGB 3-in-1 DMX512
CAL-XC12-Ⅰ-M5a-D3 L501*W45*H50 DC24V 6W RGB 3-in-1 DMX512
CAL-XC12-Ⅰ-M3a-D3 L251.5*W45*H50 DC24V 3W RGB 3-in-1 DMX512
CAL-XC14-Ⅰ-M1-D4 L1000*W45*H50 DC24V 14W RGBW 4-in-1 DMX512
CAL-XC14-Ⅰ-M5a-D4 L501*W45*H50 DC24V 7W RGBW 4-in-1 DMX512
CAL-XC14-Ⅰ-M3a-D4 L251.5*W45*H50 DC24V 3.5W RGBW 4-in-1 DMX512
