Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Ultra Slim 20mm width Narrow Recessed Linear Led Lighting With Integrated Wire Slot
Specifications
Certification :
CE/ROHS/FCC/EMC/LVD
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
10000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

‑ Ultra‑slim 20mm narrow width design, perfect for limited installation gap

‑ Built‑in integrated wire slot, hide cables neatly for clean installation appearance

‑ RGBW 4IN1 LED source, DMX512 control for rich static and dynamic color effects

‑ IP66 waterproof rating, DC24V safe low‑voltage, stable long‑term outdoor performance

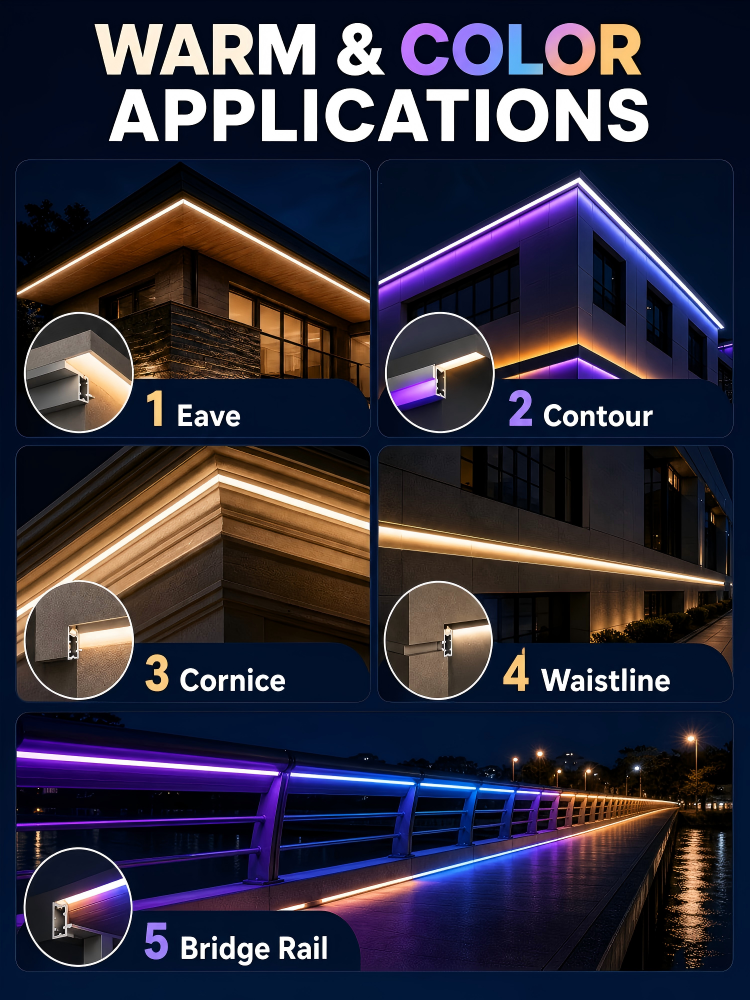

‑ Multiple power & length options, ideal for building facade, outline and bridge lighting

‑ Support OEM ODM for architectural engineering projects

Product Specifications

Voltage DC24V IP Rating IP66
Power 12W/ 14W Housing Material Extruded Aluminum Profile, Gre
Light Color 1800K-6500K / RGB / RGBW Cable & Connector PVC Round Cable / SK18 2 or 5‑core Solid Pin Connector
Beam Angle 120° Cover aluminum cover, anti‑glare grille, light baffle
LED Brand & Quantity 48pcs LEDs Luminous Efficacy 90lm/W
Control Mode ON/OFF / DMX512

CRI

 Ra80

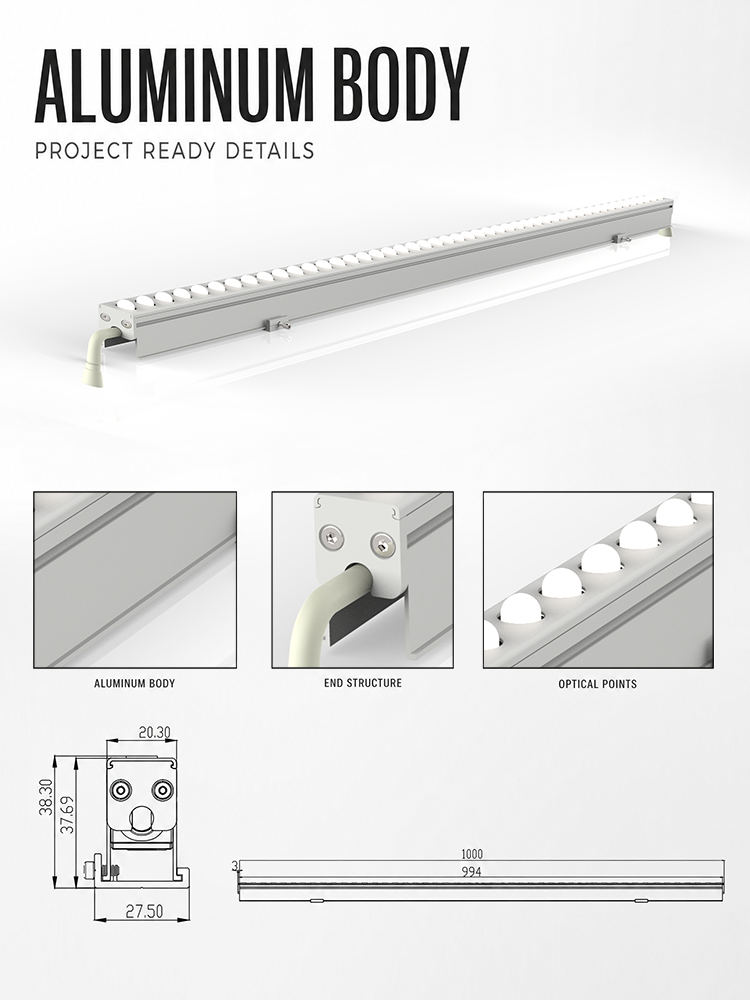

Segment Control 8‑segment Dimensions L1000*W20.3*H38.3MM

Available Models

Model No. Size(mm) Voltage Power Light Source Effect / Control Mode
CAL-YD12-M1-C1 L1000*W20.3*H38.3 DC24V 12W Monochrome ON/OFF
CAL-YD12-M5a-C1 L501*W20.3*H38.3 DC24V 6W Monochrome ON/OFF
CAL-YD12-M3a-C1 L251.5*W20.3*H38.3 DC24V 3W Monochrome ON/OFF
CAL-YD12-M1-D3 L1000*W20.3*H38.3 DC24V 12W RGB 3-in-1 DMX512
CAL-YD12-M5a-D3 L501*W20.3*H38.3 DC24V 6W RGB 3-in-1 DMX512
CAL-YD12-M3a-D3 L251.5*W20.3*H38.3 DC24V 3W RGB 3-in-1 DMX512
CAL-YD14-M1-D4 L1000*W20.3*H38.3 DC24V 14W RGBW 4-in-1 DMX512
CAL-YD14-M5a-D4 L501*W20.3*H38.3 DC24V 7W RGBW 4-in-1 DMX512
CAL-YD14-M3a-D4 L251.5*W20.3*H38.3 DC24V 3.5W RGBW 4-in-1 DMX512
