Specifications
Certification :
CE/ROHS/FCC/EMC/LVD
Design Service :
Offer lighting, optical & structural design for projects
Delivery Time :
3‑7 working days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
10000 Pieces Per Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
Crane
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

12W/14W Slim Aluminum Profile Linear Light 20mm Thick Acrylic Cover RGBW 4IN1 DMX512 IP66 For Sky Screen Lighting

‑ Slim narrow‑width aluminum profile housing with thickened acrylic cover, compact 20mm width for limited‑installation‑space projects

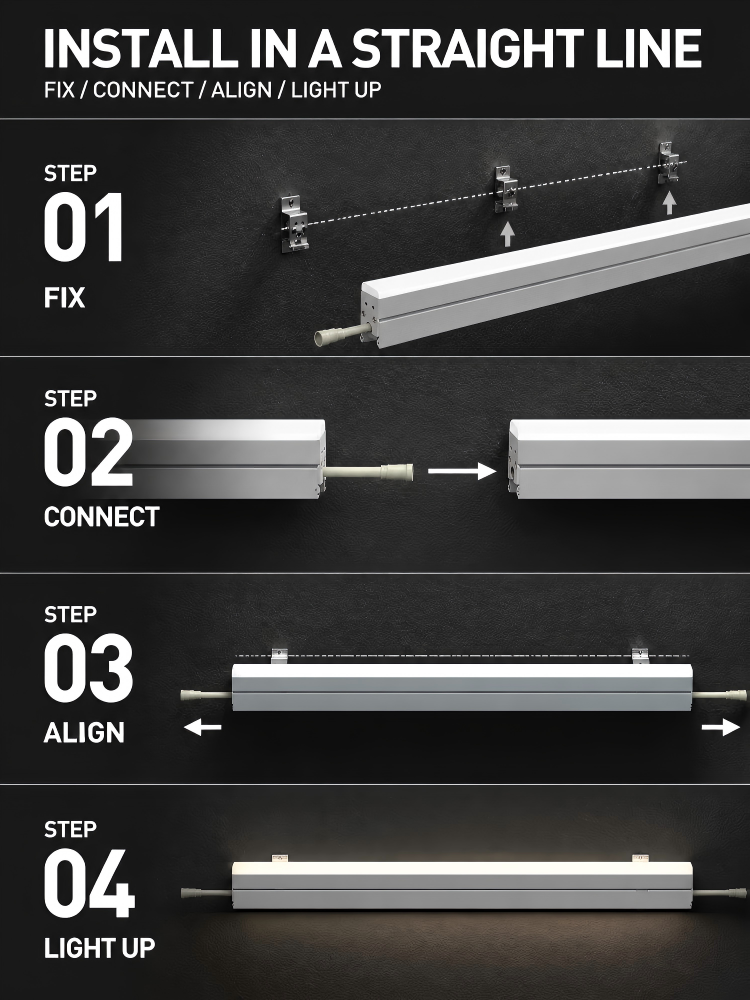

‑ Middle‑bottom backpack cable design, convenient for on‑site wiring, supports series connection up to 10‑12 meters

‑ DC24V low‑voltage input, available in single‑color static, RGB and RGBW DMX512 programmable control

‑ Multiple sizes and power grades: 251.5mm, 501mm, 1000mm, power 3W‑15W

‑ Fit for sky‑screen, narrow facade area, building outline and municipal landscape lighting

‑ B2B engineering customizable solutions are offered

Product Specifications

Voltage DC24V IP Rating IP66
Power 12W/ 15W Housing Material Extruded Aluminum Profile, Gre
Light Color 1800K-6500K / RGB / RGBW Cable & Connector PVC Round Cable / SK18 2 or 5‑core Solid Pin Connector
Beam Angle 120° Cover aluminum cover, anti‑glare grille, light baffle
LED Brand & Quantity 48pcs LEDs Luminous Efficacy 80lm/W
Control Mode ON/OFF / DMX512

CRI

 Ra80

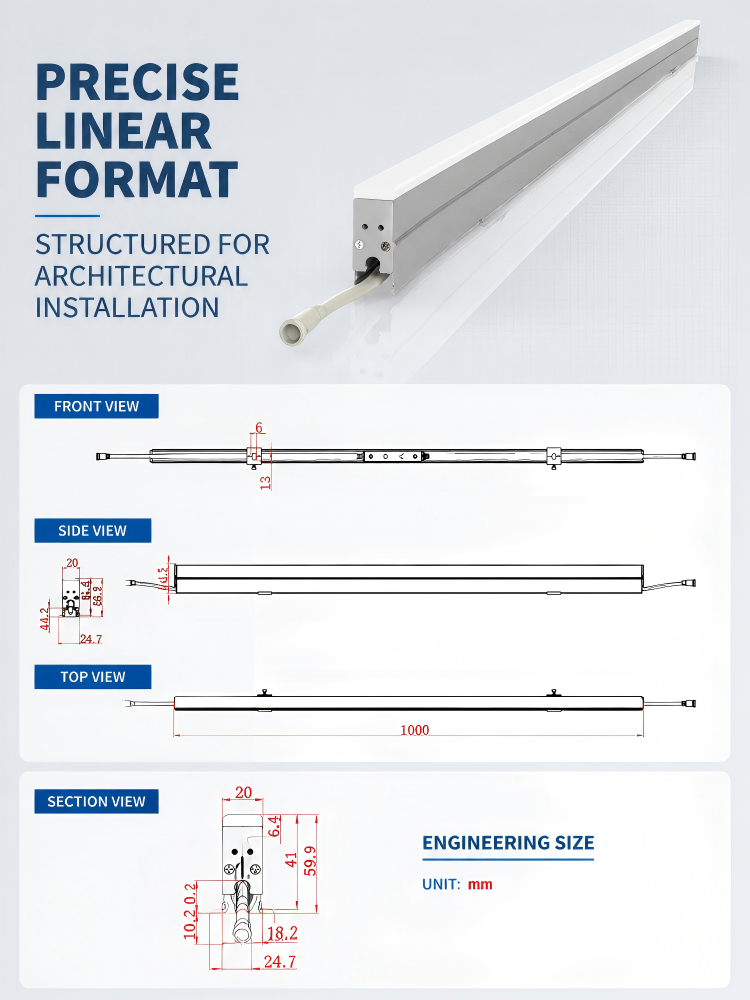

Segment Control 8‑segment Dimensions L1000*W20*H62MM

Available Models

Model No. Size(mm) Voltage Power Light Source Effect / Control Mode
CAL-TM12-Ⅱ-M1-C1 L1000*W20*H60 DC24V 12W Monochrome ON/OFF
CAL-TM12-Ⅱ-M5a-C1 L501*W20*H60 DC24V 6W Monochrome ON/OFF
CAL-TM12-Ⅱ-M3a-C1 L251.5*W20*H60 DC24V 3W Monochrome ON/OFF
CAL-TM15-Ⅱ-M1-C1 L1000*W20*H60 DC24V 15W Monochrome ON/OFF
CAL-TM15-Ⅱ-M5a-C1 L501*W20*H60 DC24V 7.5W Monochrome ON/OFF
CAL-TM15-Ⅱ-M3a-C1 L251.5*W20*H60 DC24V 3.5W Monochrome ON/OFF
CAL-TM12-Ⅱ-M1-D3 L1000*W20*H60 DC24V 12W RGB 3-in-1 DMX512
CAL-TM12-Ⅱ-M5a-D3 L501*W20*H60 DC24V 6W RGB 3-in-1 DMX512
CAL-TM12-Ⅱ-M3a-D3 L251.5*W20*H60 DC24V 3W RGB 3-in-1 DMX512
CAL-TM14-Ⅱ-M1-D4 L1000*W20*H60 DC24V 14W RGBW 4-in-1 DMX512
CAL-TM14-Ⅱ-M5a-D4 L501*W20*H60 DC24V 7W RGBW 4-in-1 DMX512
CAL-TM14-Ⅱ-M3a-D4 L251.5*W20*H60 DC24V 3.5W RGBW 4-in-1 DMX512
