Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
CHINA
Sample Service :
Samples offered for quality evaluation
Supply Ability :
100000 Meter / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Production Capacity :
Full production lines, support large project orders
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1 Meter
Warranty Period :
3‑5 years warranty under normal use
Description

8x17mm Front Emitting 180LED/M High Density Silicone LED Strip 9.5W 65 To 75 LM/W DMX512 Optional For Architectural Facade Lighting

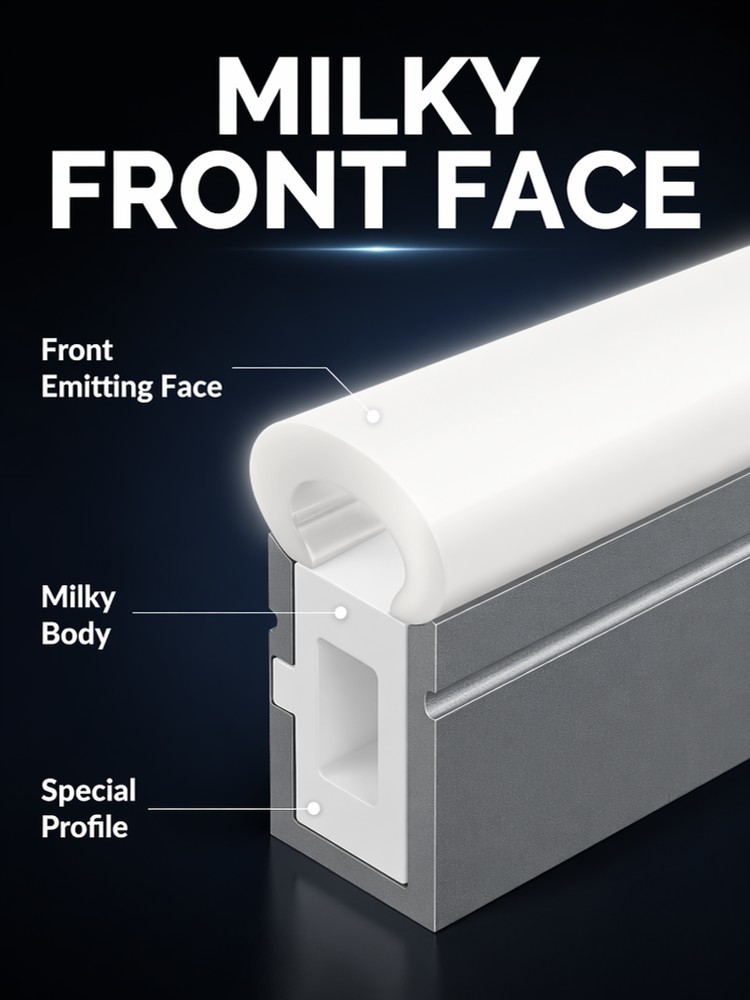

This 8×17mm front-emitting silicone strip is the high-density model in the series, carrying 180 LEDs per meter on an 8 to 15mm thick-copper-bracket FPC to achieve 65 to 75 lumens per watt at 9.5W per meter, the highest efficacy among all silicone strip models. The 50 percent higher LED density eliminates visible dots and produces exceptionally smooth, continuous linear light for high-end architectural facade projects.
The one-piece pure silicone extruded housing delivers reliable waterproof and dustproof performance with strong UV resistance for permanent outdoor installation. The wider 15mm FPC with thick copper brackets provides superior heat dissipation, supporting stable high-density operation and reducing light decay throughout the 3-year warranty.
Running on DC12V or DC24V at 9.5W per meter, the strip offers five color temperature options from 2700K to 6500K and is available with optional DMX512 control for dynamic dimming and color-changing scenes. It is supplied in 50-meter rolls to accommodate the denser LED configuration while remaining manageable for on-site installation.
The high-density front-emitting design is engineered for premium applications including hotel facades, shopping mall contours, bridge lighting, and large-scale public realm projects where flawless dot-free linear illumination is required. Dual-color, running water, RGBW and dream-color customizations are supported for dynamic architectural lighting designs.

Product Specification

Voltage DC12V / 24V IP Rating IP65
Power 9.5W / Meter Housing Material Silicone

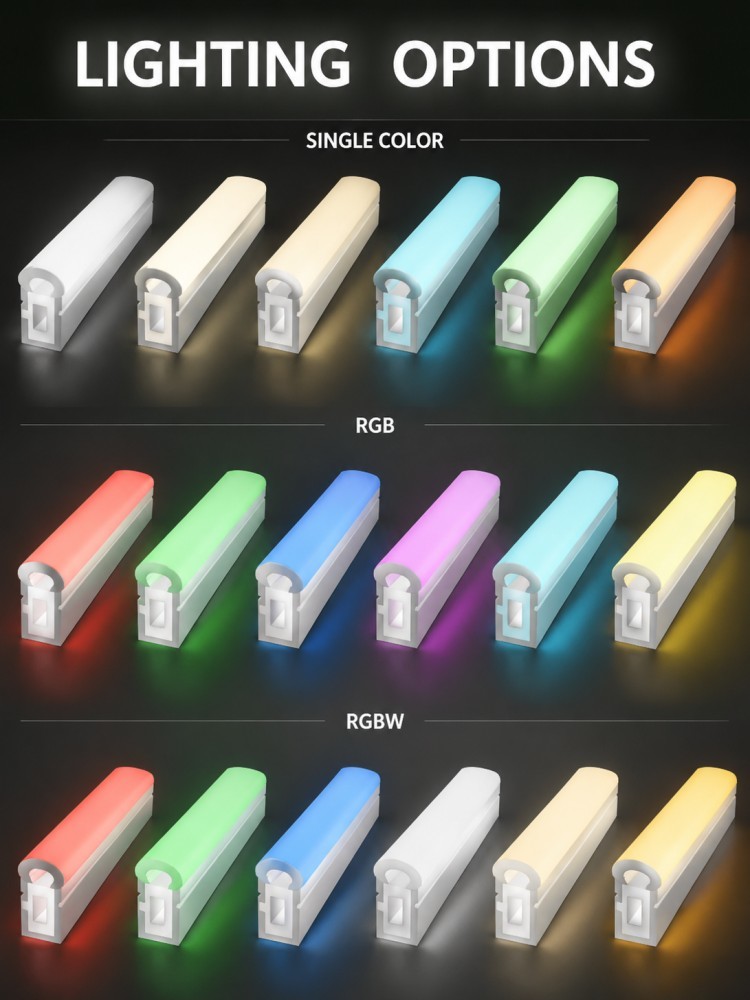

Light Color 2700K / 3000K / 3500K / 4000K / 6500K / RGB / RGBW Ambient Temperature -25℃ ~ +50℃
Enclosure Color White Luminous Efficacy 65-75 lm/W
LED Brand & Quantity 180 LEDs / Meter CRI Ra80
Control Mode ON/OFF / DMX512 Dimensions L1000mm*W10mm*H17mm

Available Models

Model No. Size Voltage Power Light Source FPC
ZFG-8x17mm-1 L1000mm*W10mm*H17mm DC12V 9.5W SMD2835 8mm Width
ZFG-8x17mm-2 L1000mm*W10mm*H17mm DC24V 9.5W SMD2835 8mm Width
ZFG-8x17mm-RGBW L1000mm*W10mm*H17mm DC24V 9.5W SMD2835 15mm Width
