5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
100000 Meter / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
CHINA
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1 Meter
Warranty Period :
3‑5 years warranty under normal use
Description

5x13mm Half Round Front Emitting Silicone LED Strip 120LED/M 9.5W DC12V 24V Pure Silicone Extrusion For Building Outline Decoration

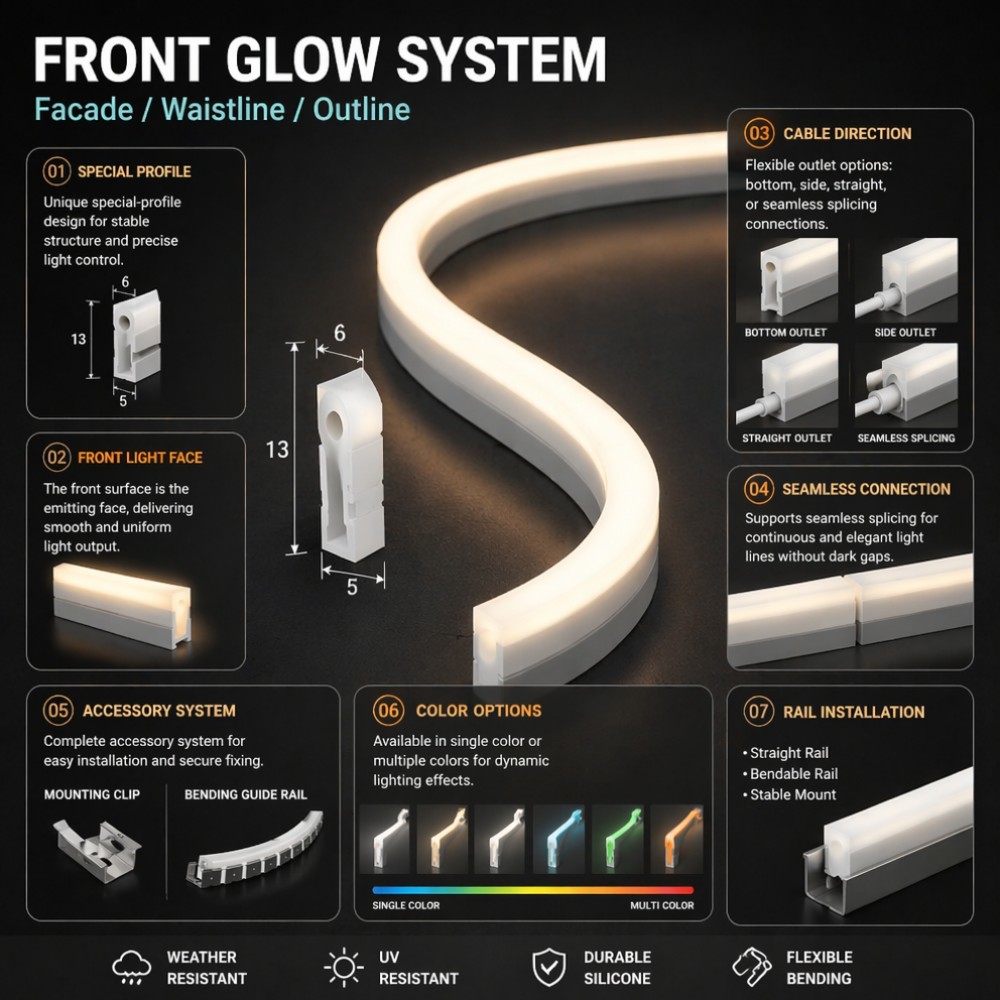

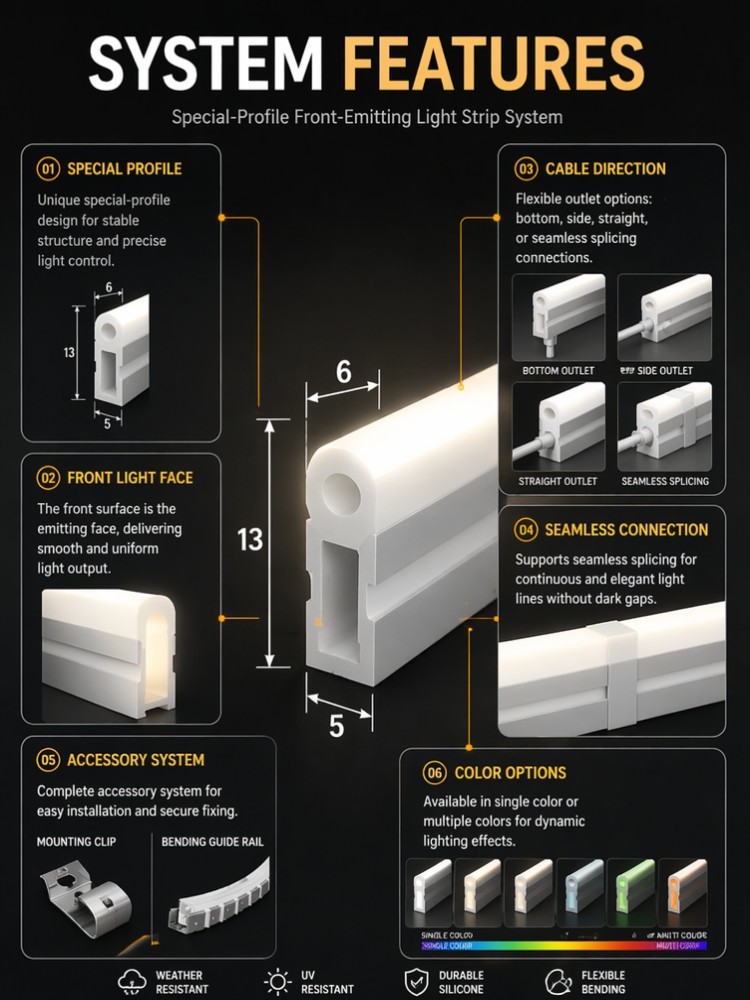

This 5×13mm slim silicone LED strip features a half-round front-emitting surface that projects light directly forward with a smooth rounded beam, avoiding the flat harsh glare of standard strip lights. With 120 LEDs per meter on a 6mm width FPC, it delivers 50 to 55 lumens per watt at 9.5W per meter, providing uniform dot-free illumination for building outlines and furniture edge lighting.

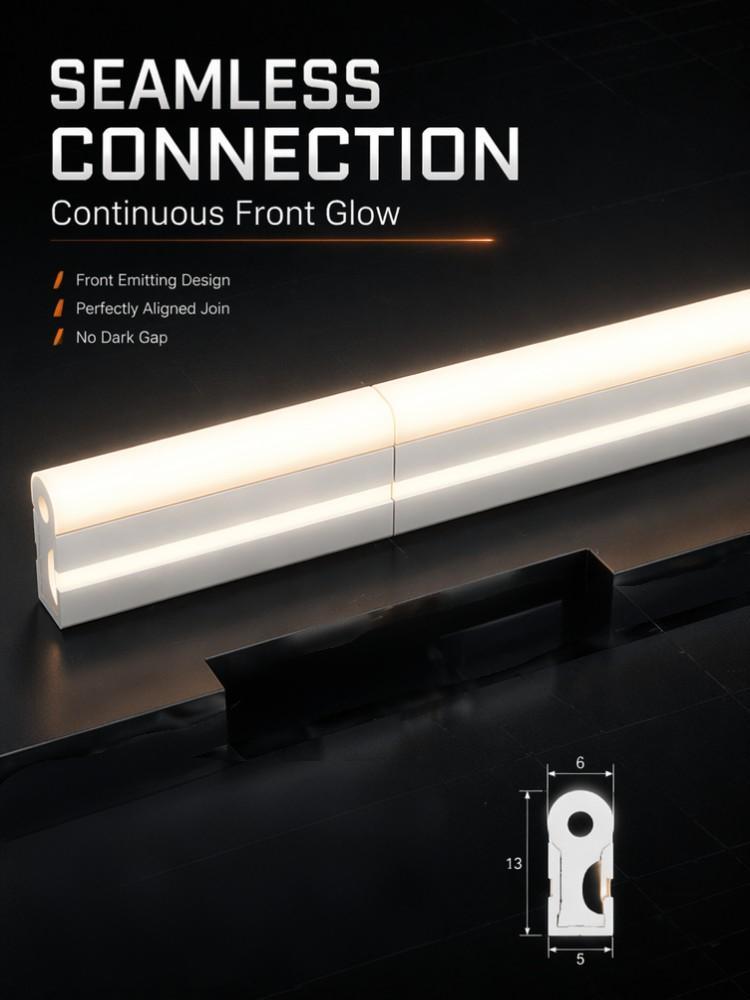

The entire strip is manufactured via one-piece pure silicone extrusion, creating a seamless waterproof and dustproof housing that resists UV aging and outdoor weather exposure. The thickened copper bracket FPC improves heat dissipation, keeping LED junction temperature low and reducing light decay over the 3-year warranty period.

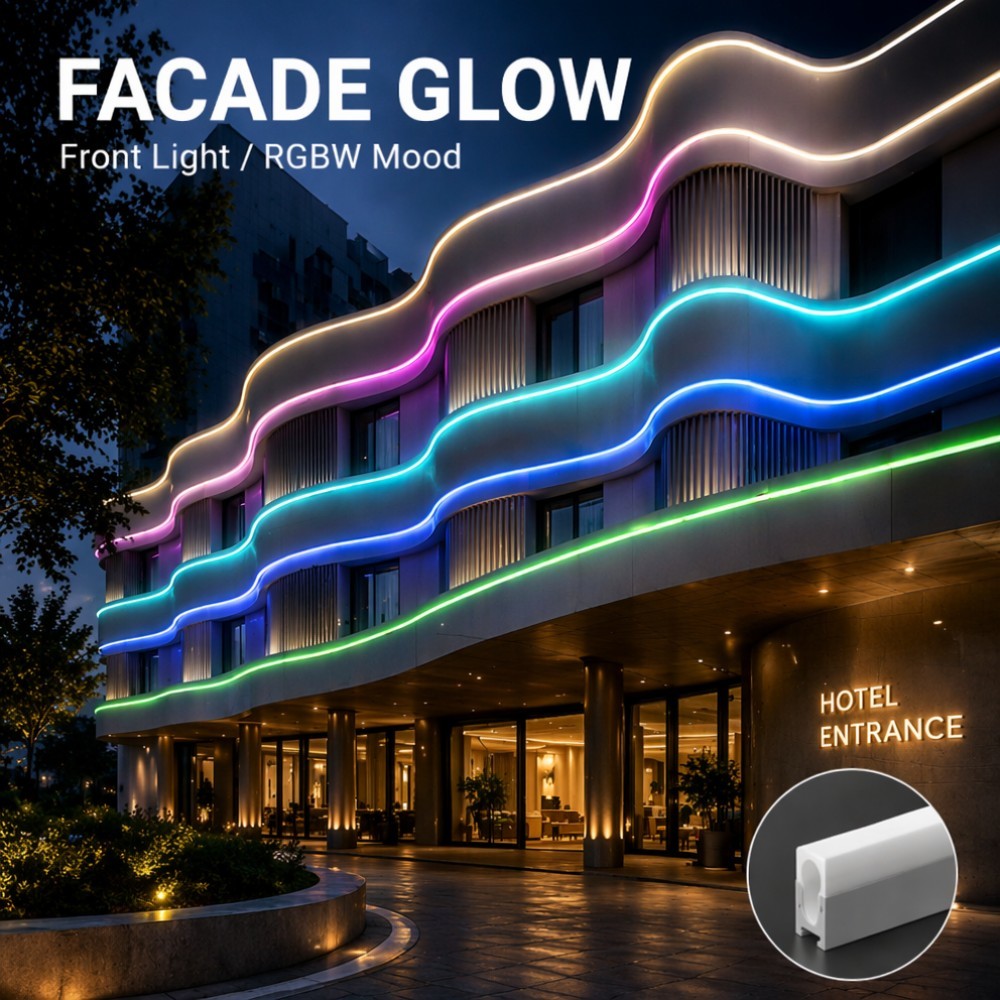

Operating at safe low voltage DC12V or DC24V, the strip consumes only 9.5W per meter and supports five color temperature options from 2700K warm white to 6500K cool white. It is supplied in 100-meter rolls, allowing continuous long-run installation without frequent splicing for large facade projects.

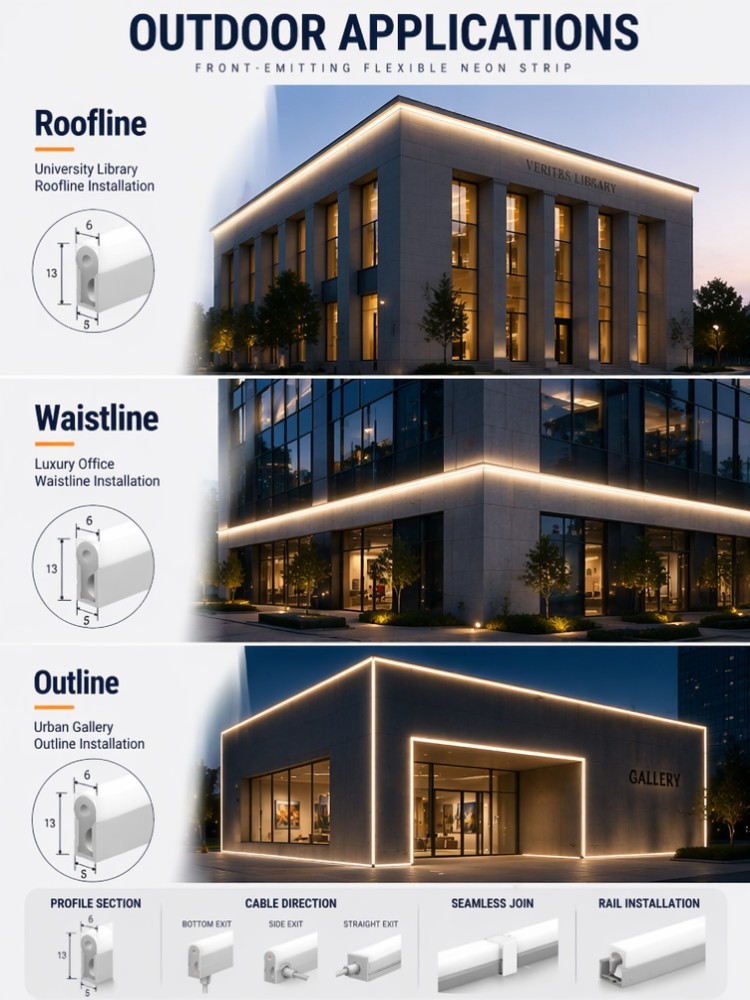

The compact 5mm thin profile fits into narrow aluminum channels and recessed grooves where wider strips cannot be installed, making it suitable for cove lighting, cabinet edge lighting, sign backlighting, and architectural contour lines. Custom color temperatures and 90 to 97 CRI options are available for project-specific requirements.

Product Specification

Voltage DC12V / 24V IP Rating IP65
Power 9.5W / Meter Housing Material Silicone
Light Color 2700K / 3000K / 3500K / 4000K / 6000K Ambient Temperature -25℃ ~ +50℃
Enclosure Color White Luminous Efficacy 50-55 lm/W
LED Brand & Quantity 120 LEDs / Meter CRI Ra80
Control Mode ON/OFF Dimensions L1000mm*W6mm*H13mm

Available Models

Model No. Size Voltage Power Light Source FPC
5x13mm-1 L1000mm*W6mm*H13mm DC12V 9.5W SMD2835 6mm Width
5x13mm-2 L1000mm*W6mm*H13mm DC24V 9.5W SMD2835 6mm Width

5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration5x13mm Half Round Front Emitting Silicone LED Strip For Building Outline Decoration
