12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
12x12mm Side Emitting Flexible Silicone LED Strip 120LED/M 9.5W For Facade Lighting
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
CHINA
Sample Service :
Samples offered for quality evaluation
Supply Ability :
100000 Meter / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Production Capacity :
Full production lines, support large project orders
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1 Meter
Warranty Period :
3‑5 years warranty under normal use
Description
12x12mm Side Emitting Silicone LED Strip 120LED/M 9.5W 55 To 60lm/W DC12V 24V Pure Silicone For Outdoor Facade Contour Lighting

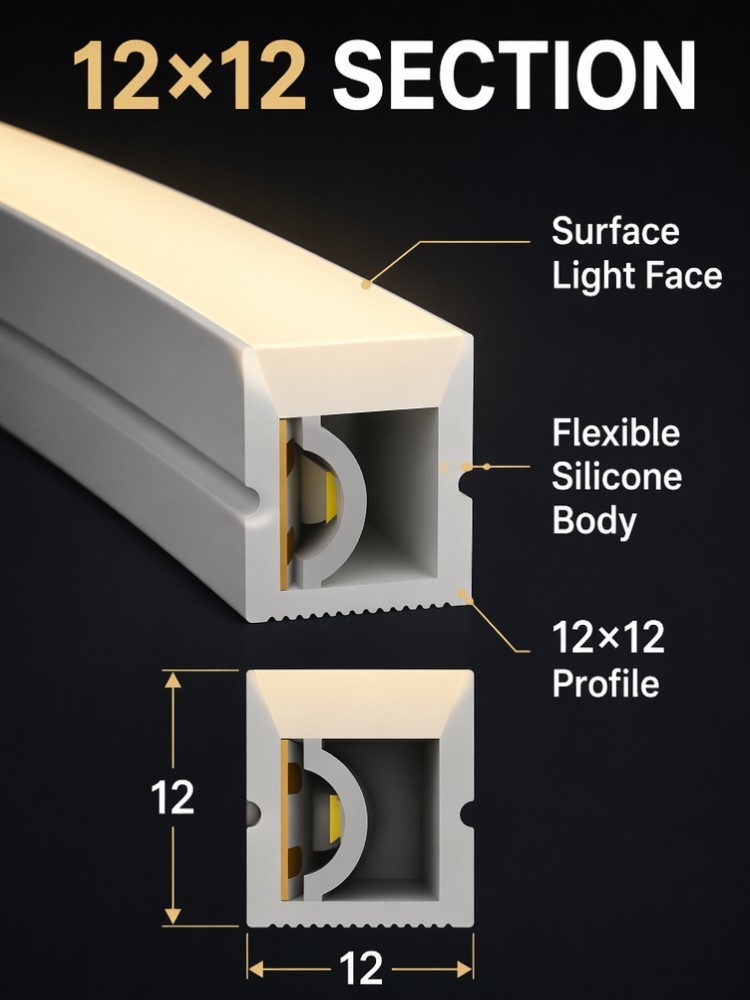

This 12×12mm larger square side-emitting silicone LED strip provides a wider 12mm lateral emitting surface compared with the 10×10mm model, producing a broader and more uniform horizontal beam for outdoor facade contour lighting. It houses 120 LEDs per meter on an 8mm thick-copper-bracket PCB, delivering 55 to 60 lumens per watt at 9.5W per meter with consistent dot-free illumination.
The one-piece pure silicone extruded housing delivers reliable waterproof and dustproof performance with strong UV and corrosion resistance for long-term outdoor exposure. The thickened copper bracket FPC enhances heat dissipation and current stability, reducing light decay and maintaining uniform brightness along the entire 100-meter roll throughout the 3-year warranty period.
Operating at DC12V or DC24V with 9.5W per meter consumption, the strip supports five color temperature options from 2700K warm white to 6500K cool white, adapting to warm decorative, neutral landscape and cool architectural lighting schemes. It is supplied in 100-meter rolls for continuous long-run installation on large building facades and bridge outlines.

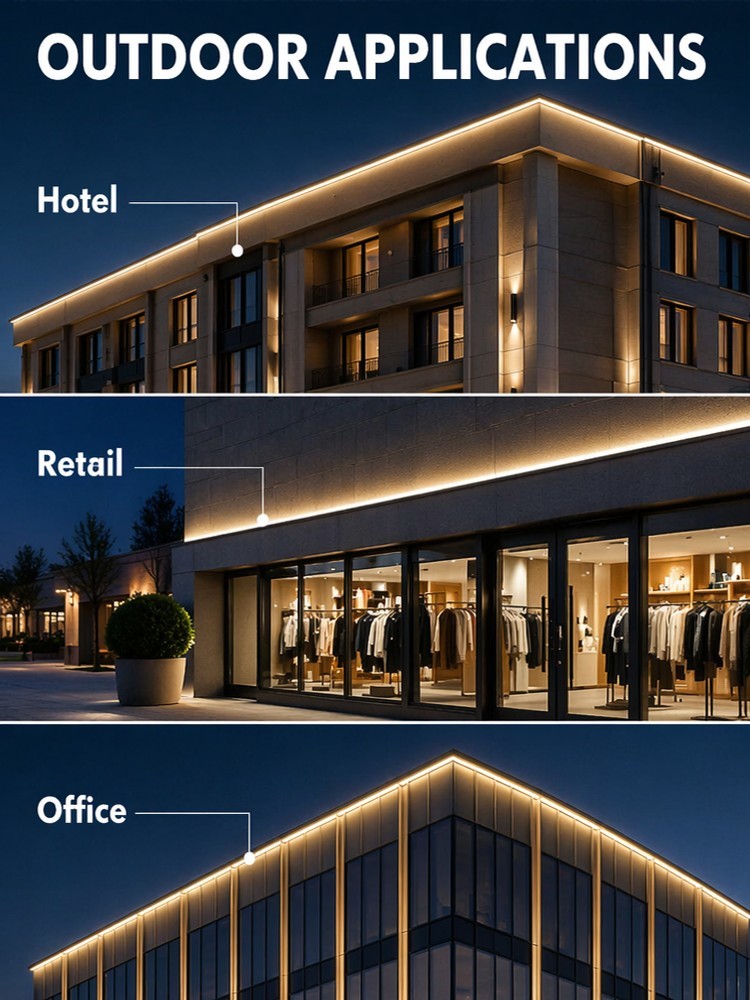

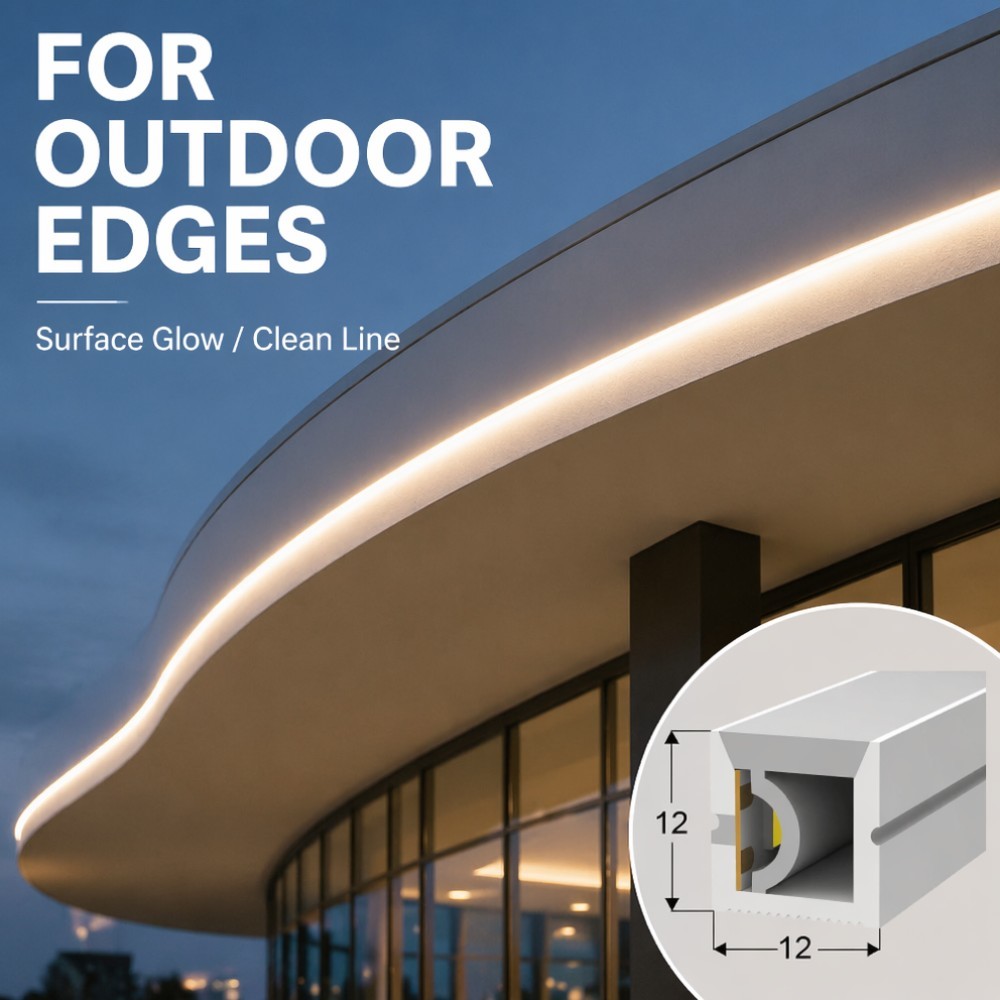

The larger square side-emitting profile is designed for outdoor facade contour lines, building perimeter lighting, bridge edge outlining, large sign backlighting and commercial landscape projects where a wider lateral beam is preferred. Custom CRI 90 to 97, dual-color, RGB and DMX512 versions are available for specialized engineering requirements.

Product Specification

Voltage DC12V / 24V IP Rating IP66
Power 9.5W / Meter Housing Material Silicone
Light Color 2700K / 3000K / 3500K / 4000K / 6500K Ambient Temperature -25℃ ~ +50℃
Enclosure Color White Luminous Efficacy 55-60 lm/W
LED Brand & Quantity 120 LEDs / Meter CRI Ra80
Control Mode ON/OFF Dimensions L1000mm*W12mm*H12mm

Available Models

Model No. Size Voltage Power Light Source FPC Width
CFG-12x12mm-1 L1000mm*W12mm*H12mm DC12V 9.5W SMD2835 8mm
CFG-12x12mm-2 L1000mm*W12mm*H12mm DC24V 9.5W SMD2835 8mm
