Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
Specifications
Certification :
CE / RoHS / FCC / EMC / LVD
Design Service :
Offer lighting, optical & structural design for projects
Supply Ability :
100000 Meter / MONTH
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3‑7 Working Days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
CHINA
Sample Service :
Samples offered for quality evaluation
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1 Meter
Warranty Period :
3‑5 years warranty under normal use
Description

8x15mm Flat Side Emitting Silicone LED Strip 120LED/M 9.5W 55 To 60 LM/W DC12V 24V Pure Silicone For Outdoor Facade Linear Lighting

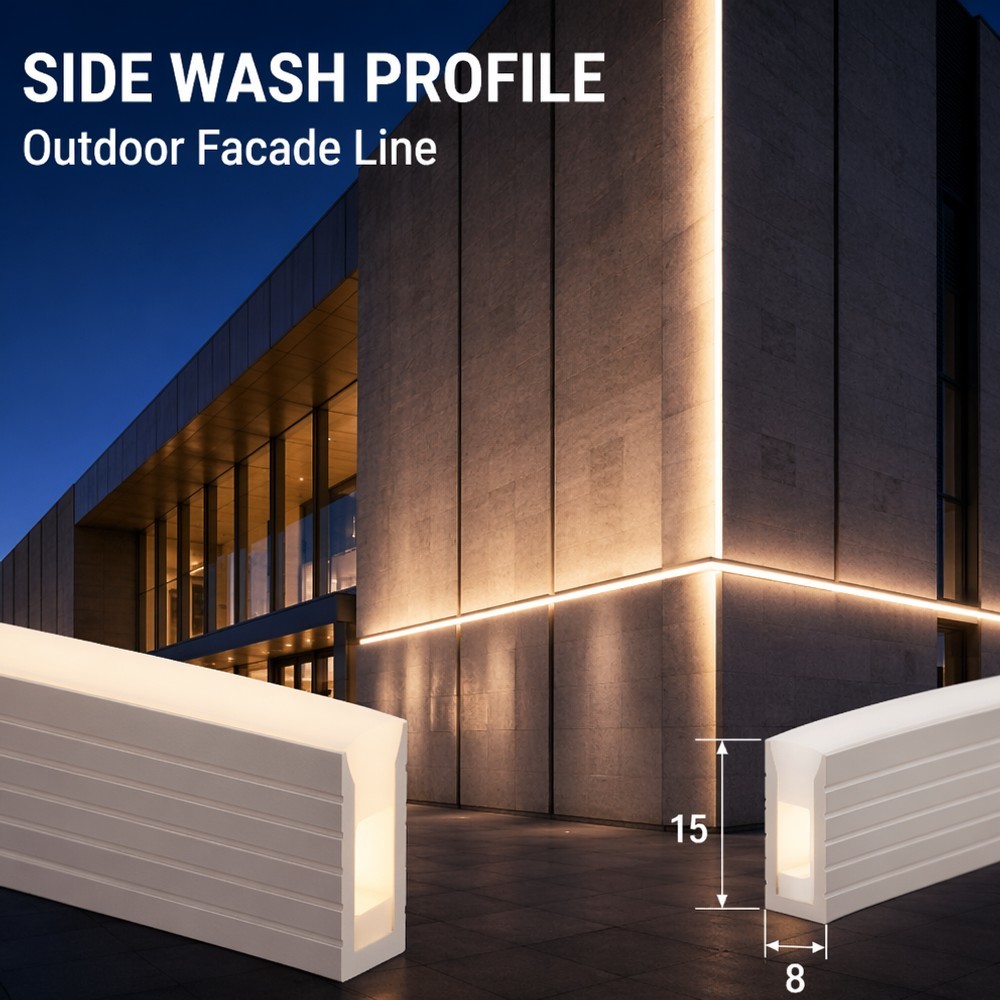

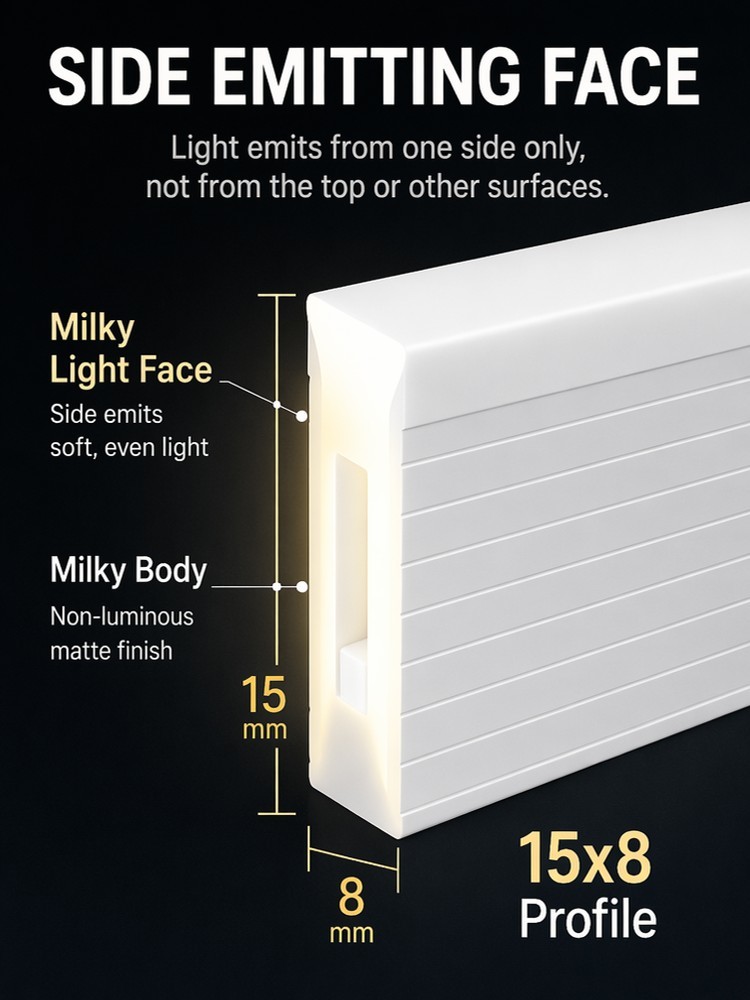

This 8×15mm flat side-emitting silicone strip outputs light through a flat planar side surface, delivering a crisp 180-degree lateral beam with sharp clean edges for architectural linear lighting. Equipped with 120 LEDs per meter on an 8mm thick-copper-bracket PCB, it achieves 55 to 60 lumens per watt at 9.5W per meter, offering higher efficacy than standard side-emitting silicone strips.
The pure silicone one-piece extrusion forms a seamless waterproof and dustproof enclosure that withstands rain, UV radiation and outdoor temperature fluctuations. The thickened copper bracket PCB enhances heat dissipation and current stability, minimizing light decay and ensuring uniform brightness along the entire 100-meter roll length.
Operating at DC12V or DC24V with 9.5W per meter consumption, the strip supports five color temperatures from 2700K to 6500K to match warm ambient, neutral commercial and cool facade lighting schemes. It is supplied in 100-meter rolls for continuous long-run installation on building facades and bridge outlines.
The flat side-emitting profile mounts flush against surfaces to project light horizontally, making it ideal for wall grazing, window frame outlining, ceiling cove perimeter and facade linear accent lighting. Custom CRI 90 to 97, dual-color and DMX512 controllable versions can be ordered for specialized engineering projects.

Product Specification

Voltage DC12V / 24V IP Rating IP65
Power 9.5W / Meter Housing Material Silicone
Light Color 2700K / 3000K / 3500K / 4000K / 6500K Ambient Temperature -25℃ ~ +50℃
Enclosure Color White Luminous Efficacy 55-60 lm/W
LED Brand & Quantity 120 LEDs / Meter CRI Ra80
Control Mode ON/OFF Dimensions L1000mm*W8mm*H15mm

Available Models

Model No. Size Voltage Power Light Source FPC Width
CFG-8x15mm-1 L1000mm*W8mm*H15mm DC12V 9.5W SMD2835 8mm
CFG-8x15mm-2 L1000mm*W8mm*H15mm DC24V 9.5W SMD2835 8mm

Silicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear LightingSilicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear LightingSilicone SMD2835 LED Strip Lights 8x15mm Flat Side Emitting For Facade Linear Lighting
