Specifications
Certification :
CE/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

The Square 3-LED Grid Screen Series (available in 8x8, 10x10, 12x12, 16x16, and 20x20 pixel array options) is engineered for high-impact outdoor media facades requiring maximum visual intensity. Designed with 3 high-performance LED chips per pixel node, it provides superior light output, vivid color reproduction, and extreme stability over long viewing distances.

    • High-Brightness 3-LED Node: Features a 3-lamp pixel design delivering enhanced lumen output for vivid animations on large architectural surfaces.

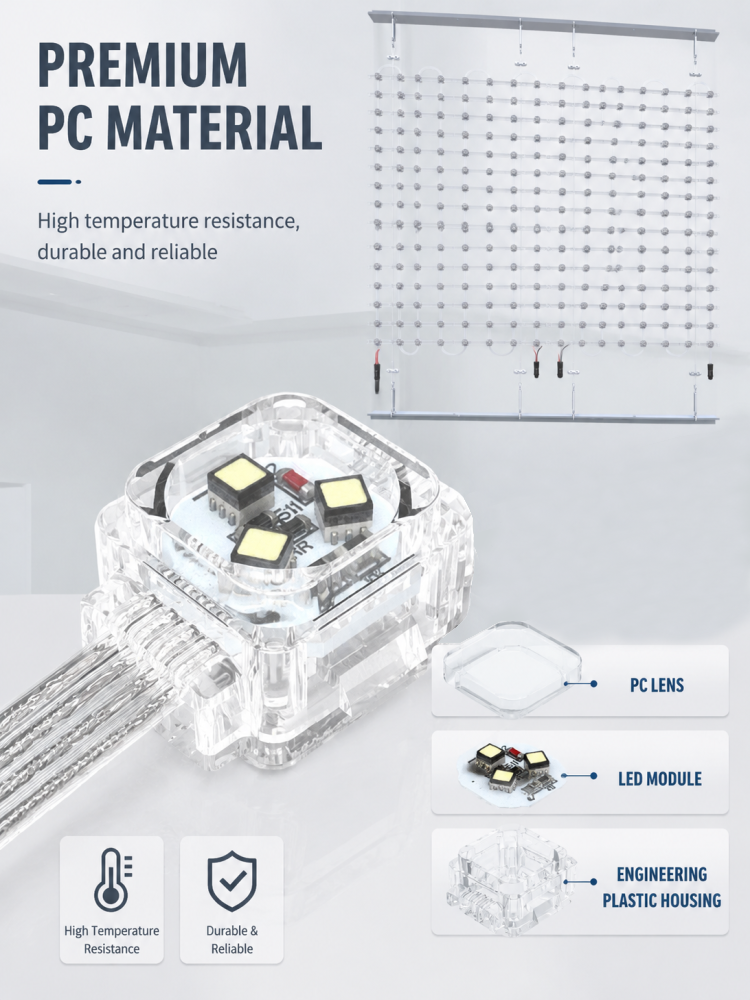

    • Premium Optical PC Housing: High-transparency, anti-UV PC cover ensures maximum illumination efficiency without yellowing over time.

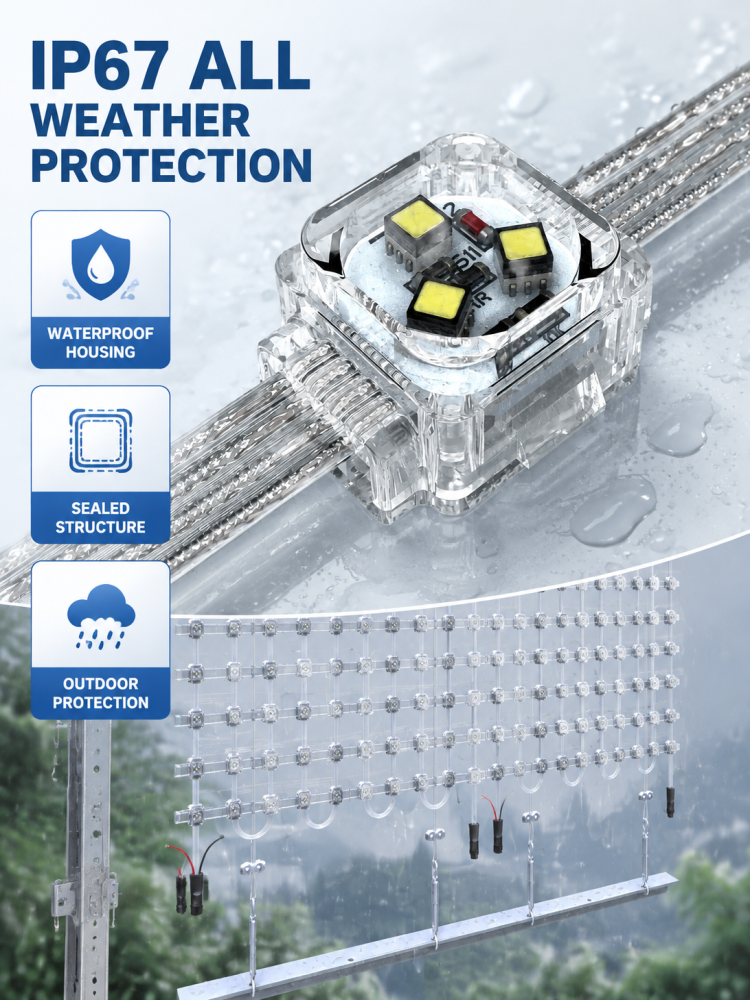

    • IP67 Sealed Waterproofing: Engineered with industrial-grade sealing to withstand continuous exposure to rain, moisture, and extreme temperature fluctuations.

    • Flexible Multi-Grid Arrays: Scalable mesh layout options (from 8x8 to 20x20) allow easy integration into glass curtain walls, sky screens, and complex building shapes.

    • Built for B2B Lighting Projects: Perfect for lighting contractors, facade engineering projects, outdoor advertising displays, and commercial complex illumination.

Product Specifications

Voltage DC12V IP Rating IP67
Control Mode Single Point Control Housing Material

Weather & fire resistance ABS
Light Color 2000-6500K / RGB / RGBW LED Brand OSRAM / CREE / Epistar / Nationstar
Beam Angle 120° Cover PC
Lifespan (L70) 50000H Power Factor 1.0

Available Models

Model No. LED Qauntity Power Center Pitch
FX3D 8*8 192 PCS 46.08 W 125*125MM
FX3D 10*10 300 PCS 72 W 100*100MM
FX3D 12*12 432 PCS 103.68 W 83.3*83.3MM
FX3D 16*16 768 PCS 184.32 W 52.5*62.5MM
FX3D 20*20 1200 PCS 288 W 50*50MM
