Specifications
Certification :
CE/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

The Round 1-LED Grid Screen Series (offered in 10x10, 12x12, 16x16, 18x18, and 20x20 matrix configurations) provides a sleek, circular aesthetic for outdoor media facades and accent lighting. Powered by a single high-efficiency LED chip per round node, it balances subtle visual performance, low power consumption, and minimal structural wind resistance.

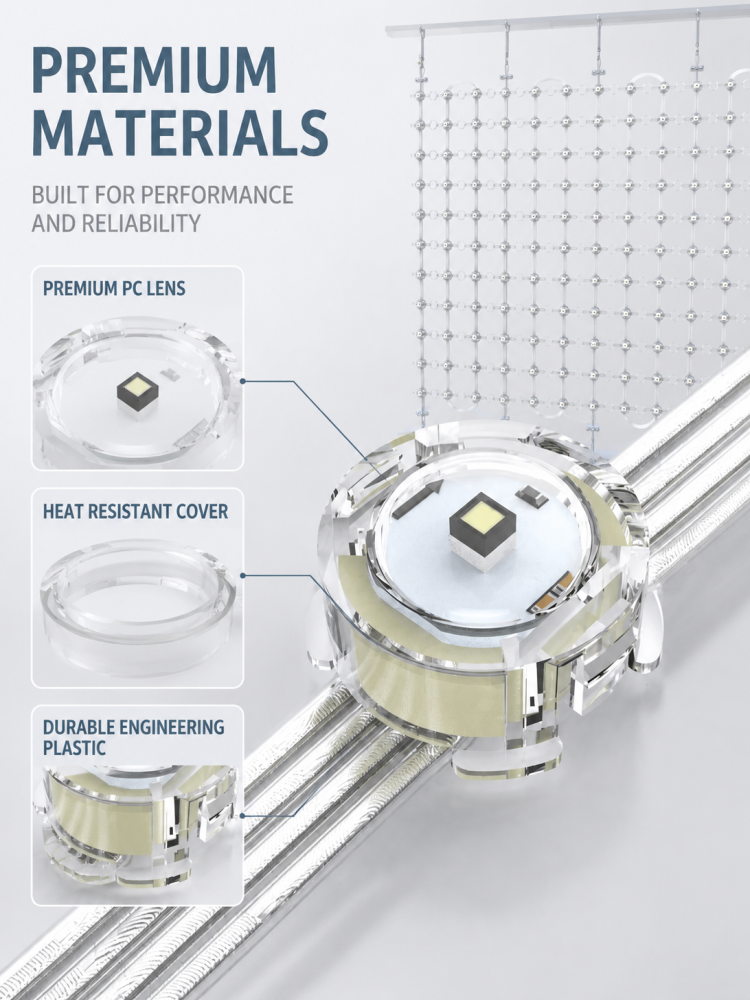

  • Compact Circular Node Design: Round housing offers a clean, streamlined look that easily blends into modern architectural glass walls and metal structures.

  • Low Power & Energy-Efficient: Single-LED configuration reduces power draw while providing clear, uniform light output across large surface areas.

  • IP67 Sealed Exterior Housing: Fully encapsulated against water, dust, and UV degradation, ensuring robust long-term outdoor operation.

  • High Flexibility & Low Wind Load: Lightweight mesh structure reduces structural burden, making installation simple on complex or curved facades.

  • Engineered for Project B2B Integration: Ideal for lighting contractors, facade designers, outdoor landscape displays, and commercial plaza decoration.

Product Specifications

Voltage DC12V IP Rating IP67
Control Mode Single Point Control Housing Material

Weather & fire resistance ABS
Light Color 2000-6500K / RGB / RGBW LED Brand OSRAM / CREE / Epistar / Nationstar
Beam Angle 120° Cover PC
Lifespan (L70) 50000H Power Factor 1.0

Available Models

Model No. LED Qauntity Power Center Pitch
YX1D 10*10 100 PCS 30 W 100*100MM
YX1D 12*12 144 PCS 43.2 W 83.3*83.3MM
YX1D 14*14 196 PCS 58.8 W 71.4*71.4MM
YX1D 16*16 256 PCS 76.8 W 62.5*62.5MM
YX1D 18*18 324 PCS 97.2 W 55.5*55.5MM
YX1D 20*20 400 PCS 120W 50*50MM
