Specifications
Design Service :
Offer lighting, optical & structural design for projects
Certification :
CE/ROHS/FCC
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Supply Ability :
20000 units/ Month
Production Capacity :
Full production lines, support large project orders
Delivery Time :
3-7 days
Sample Service :
Samples offered for quality evaluation
Place of Origin :
China
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
Brand Name :
CRANE
Warranty Period :
3‑5 years warranty under normal use
MOQ :
1
Description

The Round 3-LED Grid Screen Series (available in 10x10, 12x12, 14x14, 16x16, 18x18, and 20x20 matrix formats) is engineered for high-impact exterior media facades that demand intense luminescence and smooth color transitions. Featuring 3 high-performance LED chips within a smooth circular housing, it delivers exceptional light punch and long-distance visibility.

  • High-Output Circular 3-LED Node: Triple-LED arrangement delivers boosted lumen output and rich color saturation across wide viewing angles.

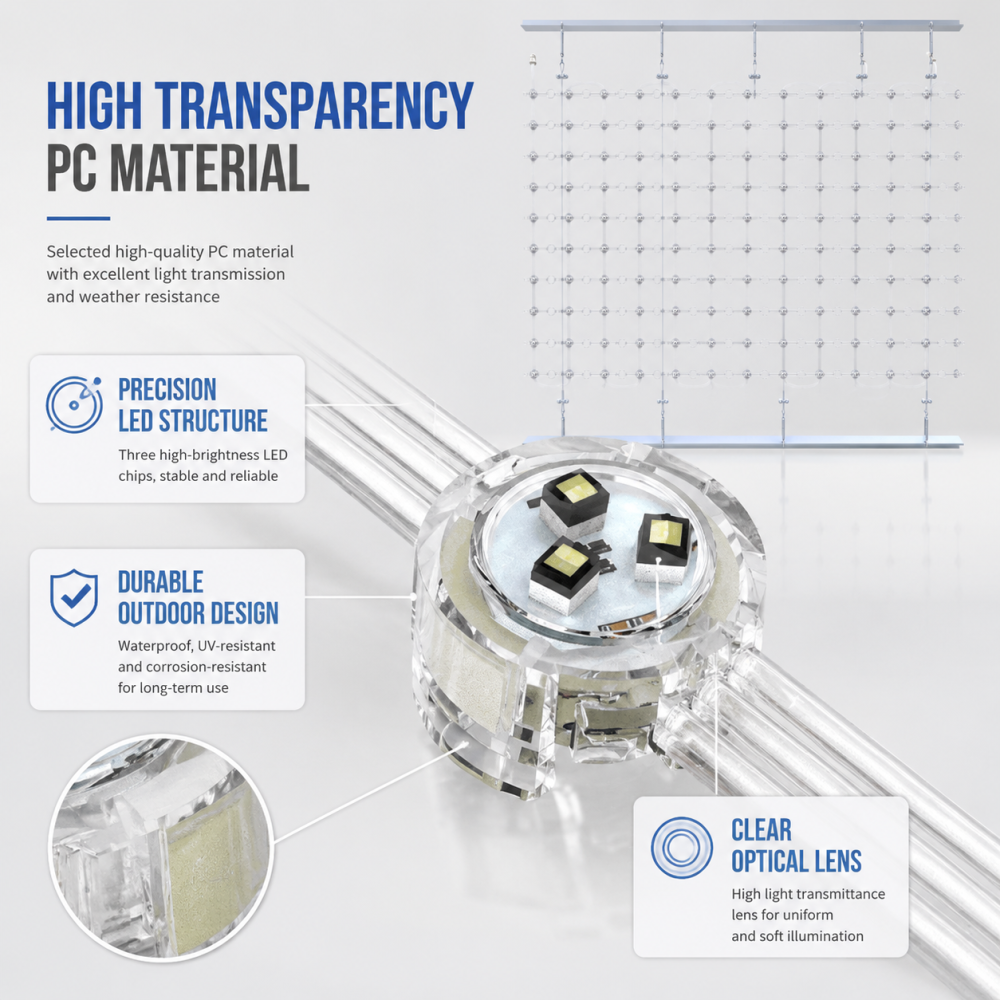

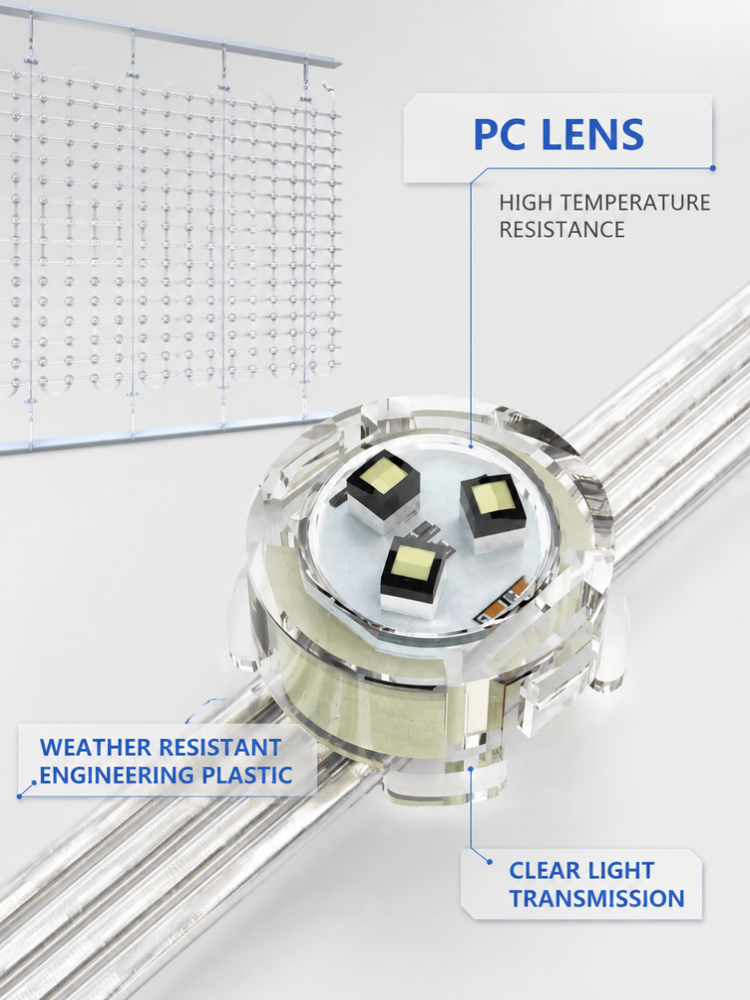

  • Streamlined Anti-UV Round Housing: Durable circular optical cover ensures optimal light distribution while preventing yellowing and degradation over time.

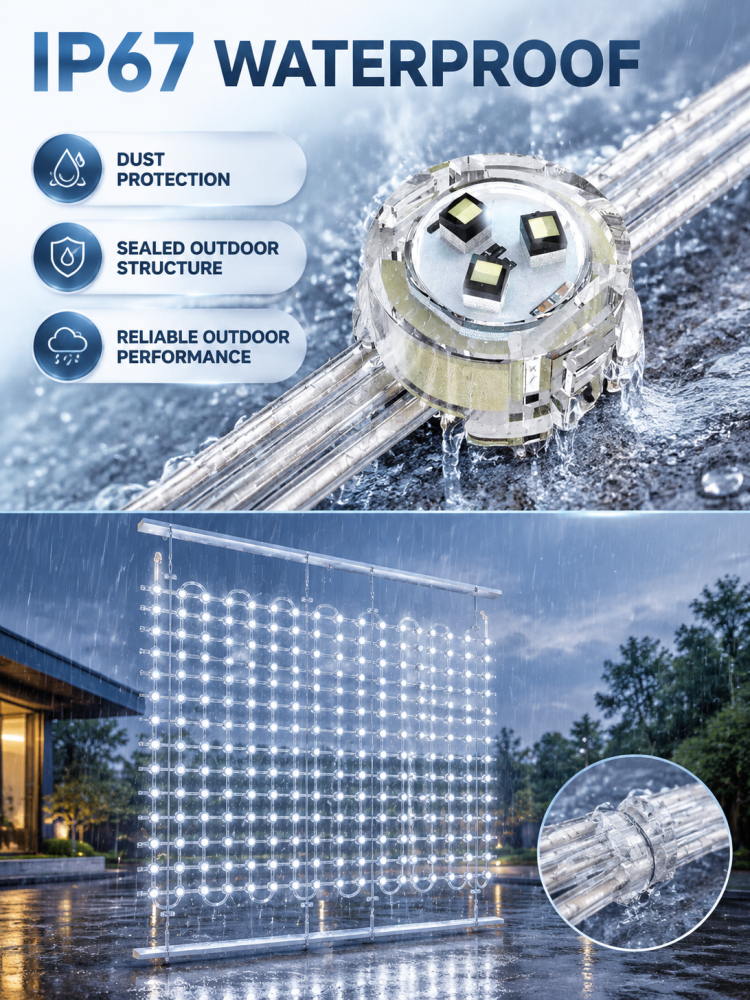

  • IP67 All-Weather Structural Sealing: Fully potted and sealed against water ingress, heavy moisture, wind, and severe thermal conditions.

  • Lightweight & High Wind Permeability: Flexible mesh design reduces load-bearing requirements and wind resistance on tall buildings and glass facades.

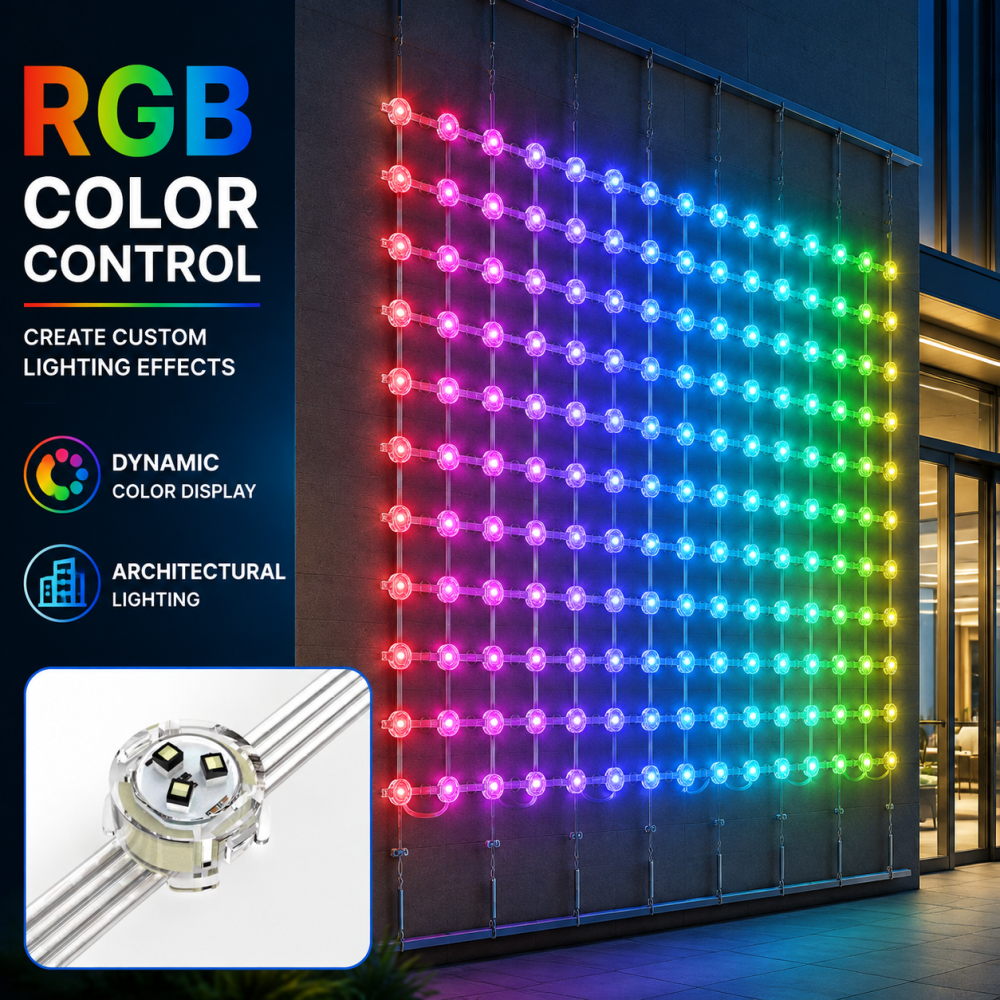

  • Tailored for B2B Lighting Contractors: Perfect for commercial complex facades, landmark architectural installations, outdoor advertising displays, and sky screens.

Product Specifications

Voltage DC12V IP Rating IP67
Control Mode Single Point Control Housing Material

Weather & fire resistance ABS
Light Color 2000-6500K / RGB / RGBW LED Brand OSRAM / CREE / Epistar / Nationstar
Beam Angle 120° Cover PC
Lifespan (L70) 50000H Power Factor 1.0

Available Models

Model No. LED Qauntity Power Center Pitch
YX3D 10*10 100 PCS 30 W 100*100MM
YX3D 12*12 144 PCS 43.2 W 83.3*83.3MM
YX3D 14*14 196 PCS 58.8 W 71.4*71.4MM
YX3D 16*16 256 PCS 76.8 W 62.5*62.5MM
YX3D 18*18 324 PCS 97.2 W 55.5*55.5MM
YX3D 20*20 400 PCS 120W 50*50MM
