Specifications
Certification :
CE/ROHS/FCC
Design Service :
Offer lighting, optical & structural design for projects
Delivery Time :
3-7 days
Production Capacity :
Full production lines, support large project orders
Place of Origin :
China
Sample Service :
Samples offered for quality evaluation
Supply Ability :
20000 units/ Month
Manufacturing Experience :
Over 10 years outdoor LED lighting manufacturing
Brand Name :
CRANE
Customization Service :
OEM & ODM available, customize power, CCT, angle, color, logo
MOQ :
1
Warranty Period :
3‑5 years warranty under normal use
Description

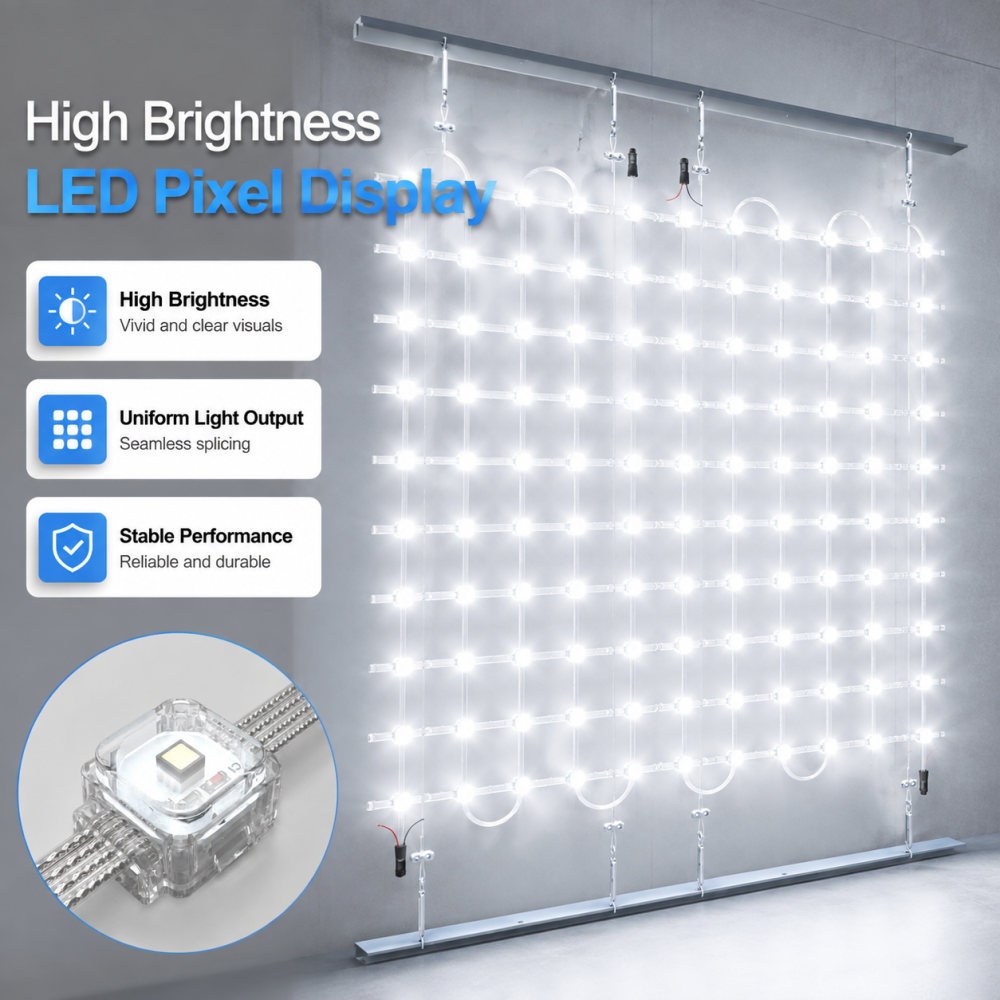

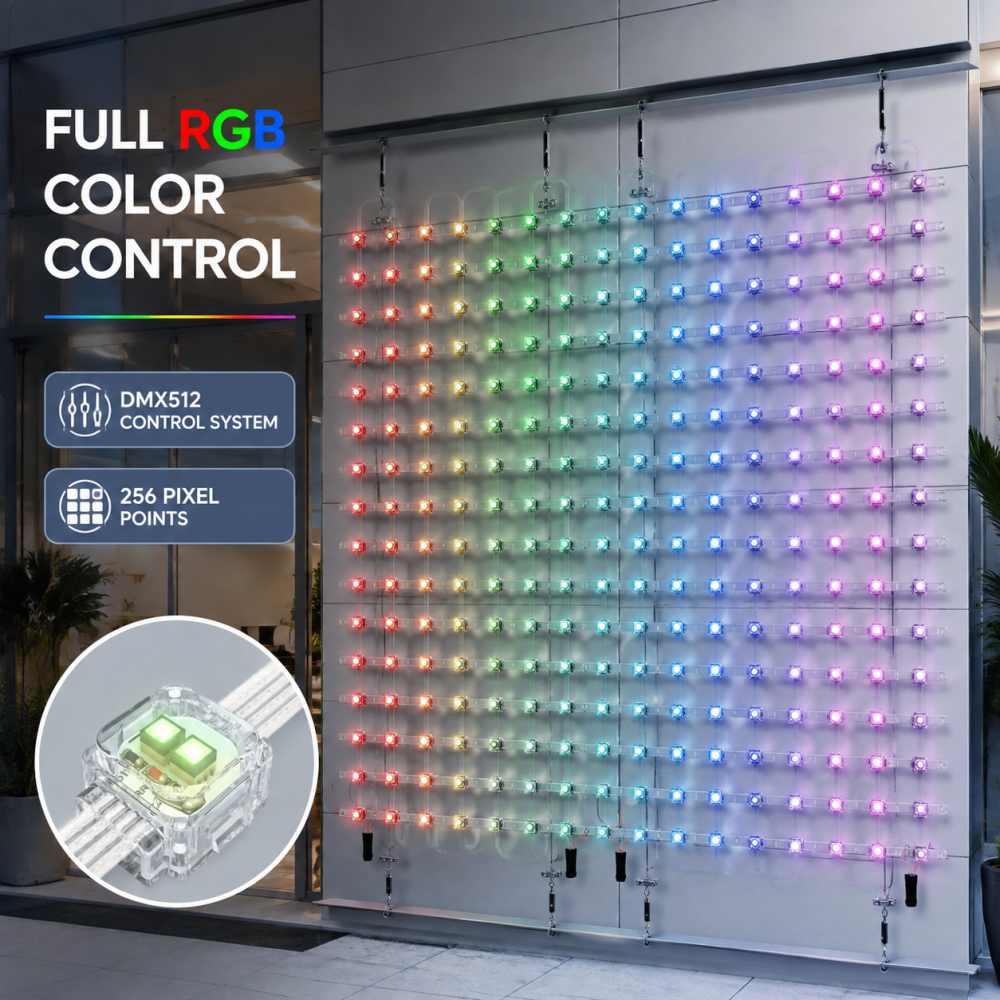

The Square Dual-LED Grid Screen Series (available in 8x8, 10x10, 12x12, 16x16, and 20x20 pixel configurations) is designed for large-scale outdoor media facades and transparent architectural illumination. Built with a dual-LED chip design per pixel node, it delivers enhanced brightness, superior visual stability, and high dynamic impact.

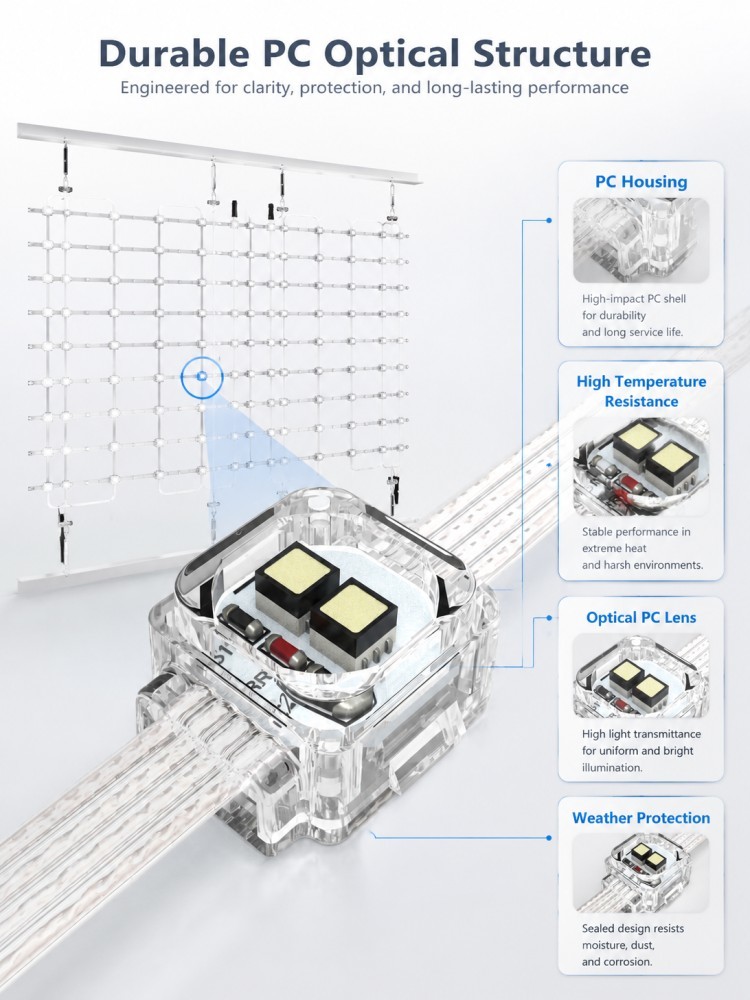

  • Premium Clear PC Housing: Constructed with high-grade optical PC material that guarantees high transparency and optimal light output without yellowing.

  • Dual-LED Pixel Design: Features 2 high-brightness SMD LEDs per square node, delivering higher light intensity and enhanced visual reliability for long-range viewing.

  • All-Weather Outdoor Durability: Engineered with IP-rated waterproof sealed housing to provide exceptional weather and UV resistance in extreme outdoor conditions.

  • Flexible Multi-Grid Configurations: Multiple array options (8x8 up to 20x20) allow seamless customization for various facade sizes, glass curtain walls, and sky screens.

  • Architectural B2B Application: Ideal for lighting contractors, facade engineering projects, outdoor advertising displays, and commercial complex lighting.

Product Specifications

Voltage DC12V IP Rating IP67
Control Mode Single Point Control Housing Material

Weather & fire resistance ABS
Light Color 2000-6500K / RGB / RGBW LED Brand OSRAM / CREE / Epistar / Nationstar
Beam Angle 120° Cover PC
Lifespan (L70) 50000H Power Factor 1.0

Available Models

Model No. LED Qauntity Power Center Pitch
FX2D 8*8 128 PCS 46.08 W 125*125MM
FX2D 10*10 200 PCS 72 W 100*100MM
FX2D 12*12 288 PCS 103.68 W 83.3*83.3MM
FX2D 16*16 512 PCS 184.32 W 52.5*62.5MM
FX2D 20*20 800 PCS 288 W 50*50MM
