Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Specifications
Application :
Chemical, Pharmaceutical,Medical
Usage :
Aerosol Spray Filling
Brand Name :
COSMATI
keyword :
aerosol cans filling machine
Price :
1000-100000 USD
Delivery Time :
7 work days
Payment Terms :
TT
Packaging Details :
wooden cases
Packing :
Wood case
Automatic Grade :
Semi-automatic
Certification :
CE
Key Selling Points :
High Productivity
Place of Origin :
GUANGZHOU,CHINA
Voltage :
220V
MOQ :
1 SET
Supply Ability :
10000 set
product name :
Small filling machinery aerosol liquid bottle filling machine spray filling machine
Model Number :
CM-AFM
Description

Small filling machinery aerosol liquid bottle filling machine spray filling machine

Small aerosol liquid bottle filling machine spray filling machine

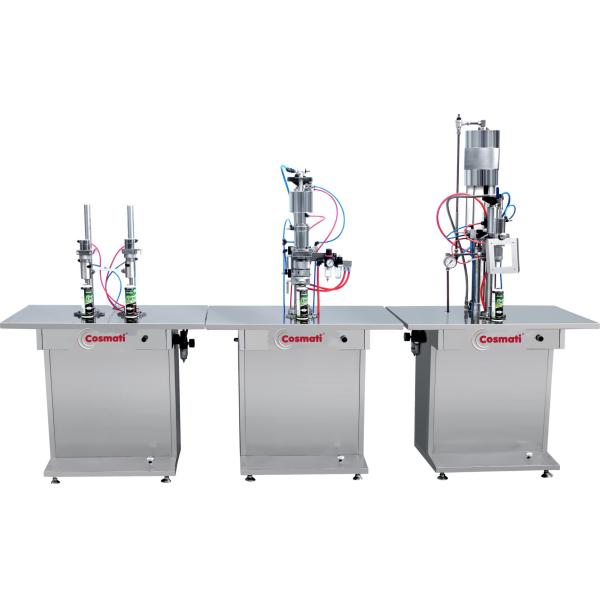

CM-QWJ-B aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.

Technical Parameters:

Model CM-QWJ-B
For valves 1 " (25.4 mm)
Contents of the input connector 20 mm diameter stainless steel pagoda connector
Propellant filling volume (ml) 30-500
Propellant input connector M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt)
Filling accuracy ± 1%
Aerosol cans for height (mm) 70-330
For aerosol can diameter Diameter (mm) 30-65
Working pressure 5 bar
Maximum Air Consumption (m3/min) 1
Production capacity (cans / hour) 1200 -1600cans / hour
Packing size 1250mm*1400mm*2000mm
Weight 140kg


Our Main Products:


Small aerosol liquid bottle filling machine spray filling machine

 Small aerosol liquid bottle filling machine spray filling machine


Small aerosol liquid bottle filling machine spray filling machine
Mixing equipment Vacuum homogenization emulsifier Labeling machine
Inquiry Now Inquiry Now Inquiry Now



Small aerosol liquid bottle filling machine spray filling machine


Small aerosol liquid bottle filling machine spray filling machine

 Small aerosol liquid bottle filling machine spray filling machine
Liquid paste filling machine Digital small liquid filling machine Aerosol filling machine
Inquiry Now Inquiry Now Inquiry Now
Small aerosol liquid bottle filling machine spray filling machine Small aerosol liquid bottle filling machine spray filling machine Small aerosol liquid bottle filling machine spray filling machine
Perfume filling machine Cosmetic powder press machine Grinding machine
Inquiry Now Inquiry Now Inquiry Now
Factory profile
Small aerosol liquid bottle filling machine spray filling machine
Engineer case
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Small aerosol liquid bottle filling machine spray filling machine
Trade show participation
Small aerosol liquid bottle filling machine spray filling machine
Packaging & shipping specifications
Small aerosol liquid bottle filling machine spray filling machine

FAQ

1. What products can this semi automatic aerosol filling machine produce?

This machine is suitable for body spray, air freshener, deodorant spray, fragrance spray, household aerosol, spray, cleaning spray and other compatible aerosol products.

The final configuration depends on the liquid formula, propellant and aerosol can specification.

2. What processes can this aerosol filling system complete?

The system can be configured for three main aerosol production processes:

Liquid Filling → Valve Crimping → Propellant Gas Filling

This separate-station design is suitable for flexible small and medium batch production.

3. Is this a fully automatic aerosol filling line?

No. This model is a semi automatic aerosol filling machine. Operators manually place and transfer aerosol cans between working stations, while each filling or crimping process is performed by the corresponding machine.

4. Can it fill both liquid product and propellant gas?

Yes. The system can perform aerosol liquid filling and propellant gas filling using separate working stations.

The gas filling configuration should be selected according to the actual propellant.

5. Does the machine include aerosol valve crimping?

Yes, the system can include an aerosol valve crimping station between liquid filling and gas filling.

Valve size and crimping tooling should be confirmed according to customer samples.
