Automatic aerosol body spray filling line aerosol can spray filling capping machine

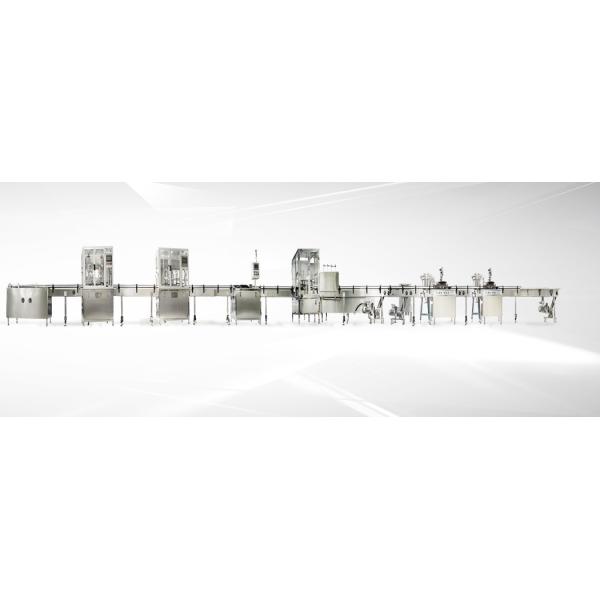

This automatic aerosol filling line mainly consists of unscrambler, filling device, capping device, conveyor.
1.Conveyor: Stainless steel main panel and side panels, 2440mm*3 sections; plate in 2mm thickness made of 304 stainless steel.

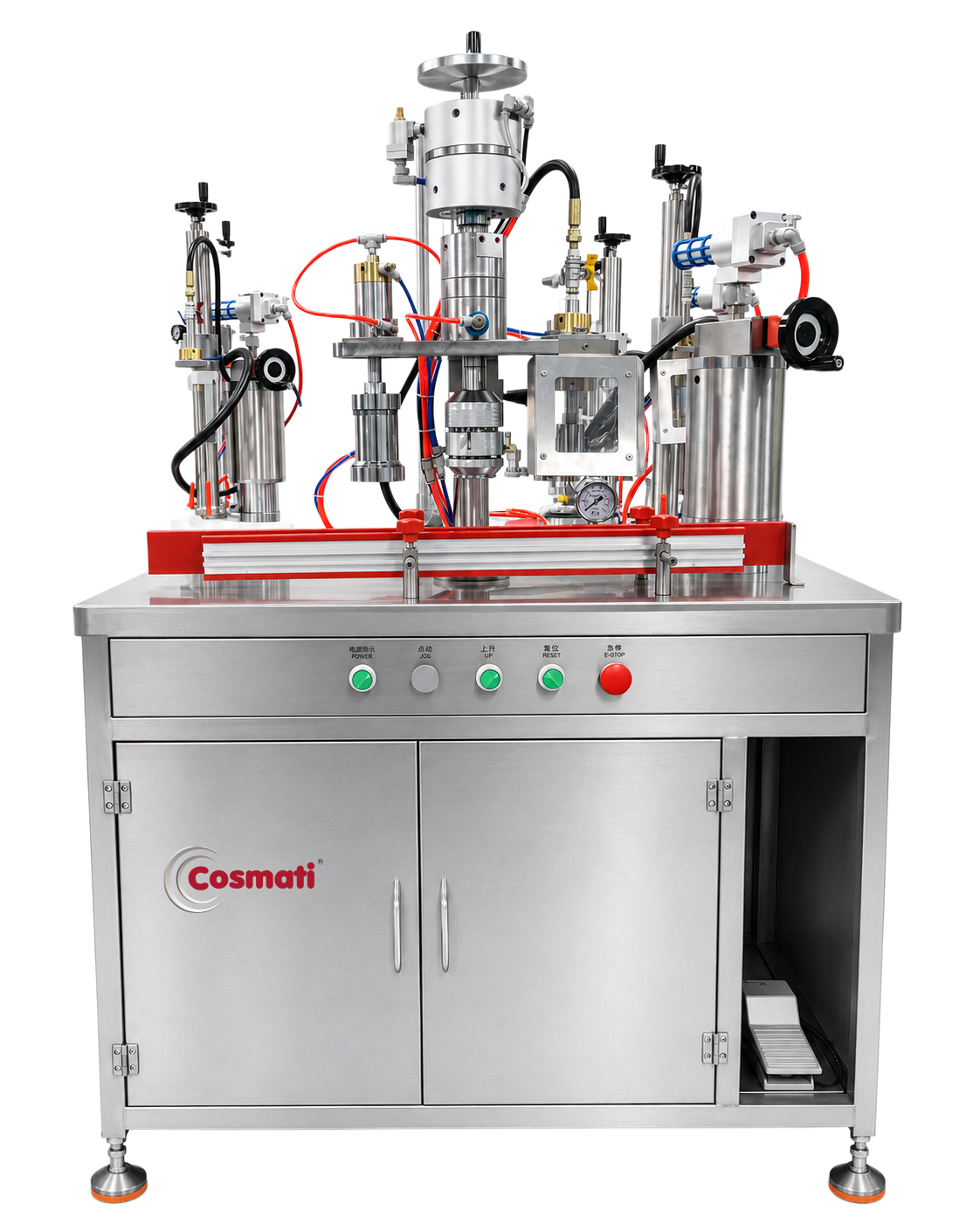

2. Filling device: Equipped with an air blowing head and 3 filling heads, fully-pneumatic control, and each head can be controlled separately; a set of Φ65mm aerosol can holder and can guidance panel are provided; main pneumatic control devices are introduced from Italy and Japan. It features: no material is discharged in absence of aerosol can. #304 stainless steel.
3. Injecting and Capping device: provided with a vacuum head, a capping head, 3 injecting heads. It features: guiding devices are provided at both capping heads and injecting heads. #304 stainless steel.
4. Control System: The main body including the aerosol filler and the capping and injecting device is under pneumatic control. With high efficiency, safe, simple and reliable operation and easy maintenance.
scope of speed: 4.5-23r/min.;
0.75kw anti-blast motor and anti-blast switch are attached;
Safety guarantee: Anti-blast motors are applied for tin unscrambler device and the conveyor; the circuit is through PVC pipes and anti-blast junction boxes, connected by anti-blast switch; the main body is absent from power supply; the casing is grounding to prevent electrostatic; both aerosol filler and injecting device are protected by cabinet (stainless steel frame with 4mm transparent organic glass) to prevent injury due to can blasting.

Technical Parameters:

Machine name :Full Automatic Aerosol Filling Machine
Filling Volume:30-500ml(can be customerized)
Filling Accuracy:±1%
Can Height:70-330mm
Capacity:3000-3600cans/hr
Top speed :20 CPM
Height of cans:70-330 mm
Diameter of cans:30-65 mm
Filling tolerance:≤± 1%
Air working pressure:5 bar
Function:Autoamtic weighting,filling,capping,packing,etc

Details

Application:

Our Main Products:

Mixing equipment	Vacuum homogenization emulsifier	Labeling machine
Inquiry Now	Inquiry Now	Inquiry Now
Liquid paste filling machine	Digital small liquid filling machine	Aerosol filling machine
Inquiry Now	Inquiry Now	Inquiry Now
Perfume filling machine	Cosmetic powder press machine	Grinding machine
Inquiry Now	Inquiry Now	Inquiry Now

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. What products can this automatic aerosol filling line produce?

This line can be configured for body spray, deodorant spray, fragrance aerosol, air freshener, personal care spray, household aerosol and other compatible aerosol products.

The final machine configuration depends on the liquid formula, propellant, valve and aerosol can specifications.

2. Is this a fully automatic aerosol filling machine?

Yes. This model is designed as a full automatic aerosol filling line, reducing manual handling between filling, valve processing, gas filling and capping operations.

3. What processes can the complete aerosol production line include?

Depending on configuration, the production process can include:

Can Feeding → Liquid Filling → Valve Feeding → Valve Crimping → Propellant Filling → Actuator Feeding → Outer Cap Feeding → Finished Product

4. Can this machine fill both liquid product and propellant gas?

Yes. The line can integrate aerosol liquid filling and propellant filling in one continuous production process.

The gas filling system should be selected according to the actual propellant used.

5. Can it be used as a body spray filling machine?

Yes. The line is suitable for body spray and personal care aerosol production, including liquid filling, valve processing, propellant charging and final cap handling.
