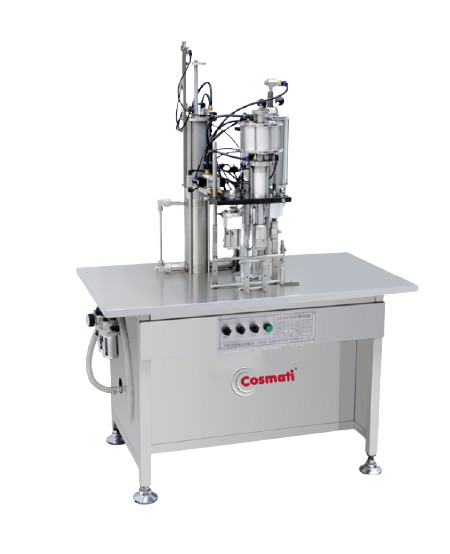

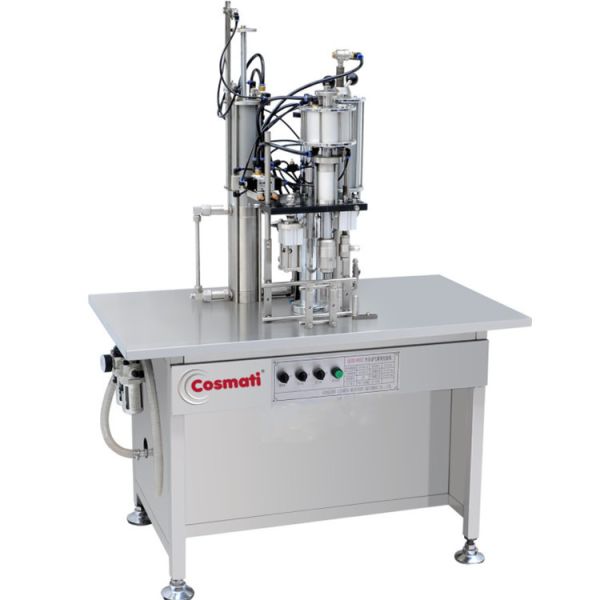

Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Specifications
Supply Ability :
10000 set
Application :
Chemical, Pharmaceutical,Medical
Working pressure :
0.5-0.7 MPa
Usage :
Aerosol Spray Filling
Brand Name :
COSMATI
keyword :
aerosol cans filling machine
Model Number :
CM-QWJ-B
Packing :
Wood case
Certification :
CE
Payment Terms :
TT
Delivery Time :
7 work days
Packaging Details :
wooden cases
Price :
1000-100000 USD
Automatic Grade :
Semi-automatic
MOQ :
1 SET
Key Selling Points :
High Productivity
Voltage :
220V
product name :
automatic aerosol spray filling machine machine filling spray cans
Place of Origin :
GUANGZHOU,CHINA
Description

Professional security automatic aerosol spray filling machine machine filling spray cans



Introduction:

Product number: CM-QWJ-B

Product Name: Three-in-one Aerosol Filler

Product Series: Aerosol Series

Operation mode: automation


Product advantages:

1. Fast speed, high accuracy, good stability, time and effort saving

2. All actions can be completed at the same time by only one person operating the pedal valve once.


Technical parameters:

Model CM-AFM-01
Sealing diameter(mm) Ф26.5-Ф27.5
Sealing depth(mm) 5.0-6.0
Applicable valve 1”
Applicable aerosol cans Height(mm) 80-315mm

Diameter(mm) 35-70mm
Maximum liquid filling volume 450ml
Liquid refilling accuracy ≤±1.0%
Maximum filling volume of propellant 450ml
Propellant repeat filling accuracy ≤±1.0%
Working pressure (MPa) 0.50-0.70MPa
Maximum air consumption 0.6m3/min
Production capacity 800-1200 cans/hour
Dimensions (mm) 1000×600×1600
Weight (kg) 240


Product characteristics:

1. The machine is integrated from the original semi-automatic aerosol filling machine through improvement, optimization and integration.

2. Install three semi-automatic filling, sealing and filling machines on one workbench.

3. All actions can be accomplished simultaneously by one person at a time operating the pedal valve.

4. Fast speed, high accuracy, good stability and time-saving are ideal choices for small and medium-sized aerosol manufacturers.

5. Suitable for filling various media, such as thin liquid (kerosene), viscous liquid (face wash, polyurethane foaming agent).


OUR MAIN PRODUCTS:


Automatic Aerosol Spray Filling Machine For Cosmetic Industry

 Automatic Aerosol Spray Filling Machine For Cosmetic Industry


Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Mixing equipment Vacuum homogenization emulsifier Labeling machine
Inquiry Now Inquiry Now Inquiry Now



Automatic Aerosol Spray Filling Machine For Cosmetic Industry


Automatic Aerosol Spray Filling Machine For Cosmetic Industry

 Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Liquid paste filling machine Digital small liquid filling machine Aerosol filling machine
Inquiry Now Inquiry Now Inquiry Now
Automatic Aerosol Spray Filling Machine For Cosmetic Industry Automatic Aerosol Spray Filling Machine For Cosmetic Industry Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Perfume filling machine Cosmetic powder press machine Grinding machine
Inquiry Now Inquiry Now Inquiry Now


Factory profile
Automatic Aerosol Spray Filling Machine For Cosmetic Industry

Engineer case
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Trade show participation
Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Packaging & shipping specifications
Automatic Aerosol Spray Filling Machine For Cosmetic Industry

FAQ

1. What products can this aerosol filling machine handle?

It is suitable for aerosol products such as air freshener, fragrance spray, cleaning spray, disinfectant spray, cosmetic spray, pharmaceutical spray, chemical spray and other compatible aerosol products.

2. Is this machine fully automatic?

No. This model is a semi-automatic aerosol filling machine. Operators normally place and remove the aerosol cans manually while the filling and related operations are completed by the machine.

3. What functions can this machine perform?

Depending on the final configuration, it can perform liquid filling, aerosol valve crimping and propellant filling for spray cans.

4. Can it fill both liquid and propellant gas?

Yes. The machine can be configured for both liquid product filling and propellant charging.

The exact gas filling system should be selected according to the propellant type and product formulation.

5. Can it crimp aerosol valves?

Yes. The machine can include an aerosol valve crimping station to secure the valve onto the aerosol can before propellant filling.
