Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Specifications
keyword :
aerosol cans filling machine
Brand Name :
COSMATI
Delivery Time :
7 work days
Packaging Details :
wooden cases
Packing :
Wood case
Application :
Chemical, Pharmaceutical,Medical
Working pressure :
0.5-0.7 MPa
Model Number :
CM-QWJ-B
Certification :
CE
Usage :
Aerosol Spray Filling
Place of Origin :
GUANGZHOU,CHINA
Automatic Grade :
Semi-automatic
Supply Ability :
10000 set
Payment Terms :
TT
Key Selling Points :
High Productivity
Voltage :
220V
MOQ :
1 SET
Price :
1000-100000 USD
product name :
Semi Automatic Manual Air Freshener Body Spray Can Aerosol Filling Machine
Description

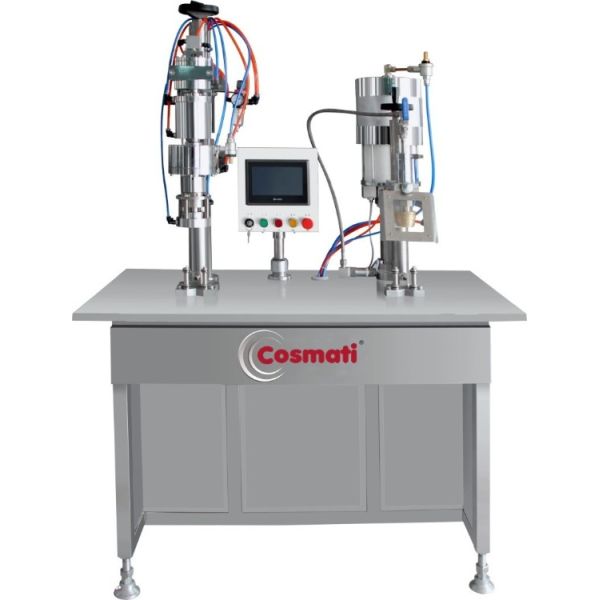

Semi Automatic Manual Air Freshener Body Spray Can Aerosol Filling Machine


Introduction:

Product number: CM-QWJ-B

Product Name: Three-in-one Aerosol Filler

Product Series: Aerosol Series

Operation mode: automation


Product advantages:

1. Fast speed, high accuracy, good stability, time and effort saving

2. All actions can be completed at the same time by only one person operating the pedal valve once.


Technical parameters:

Model CM-AFM-01
Sealing diameter(mm) Ф26.5-Ф27.5
Sealing depth(mm) 5.0-6.0
Applicable valve 1”
Applicable aerosol cans Height(mm) 80-315mm

Diameter(mm) 35-70mm
Maximum liquid filling volume 450ml
Liquid refilling accuracy ≤±1.0%
Maximum filling volume of propellant 450ml
Propellant repeat filling accuracy ≤±1.0%
Working pressure (MPa) 0.50-0.70MPa
Maximum air consumption 0.6m3/min
Production capacity 800-1200 cans/hour
Dimensions (mm) 1000×600×1600
Weight (kg) 240


Product characteristics:

1. The machine is integrated from the original semi-automatic aerosol filling machine through improvement, optimization and integration.

2. Install three semi-automatic filling, sealing and filling machines on one workbench.

3. All actions can be accomplished simultaneously by one person at a time operating the pedal valve.

4.Fast speed, high accuracy, good stability and time-saving are ideal choices for small and medium-sized aerosol manufacturers.

5. Suitable for filling various media, such as thin liquid (kerosene), viscous liquid (face wash, polyurethane foaming agent).


Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

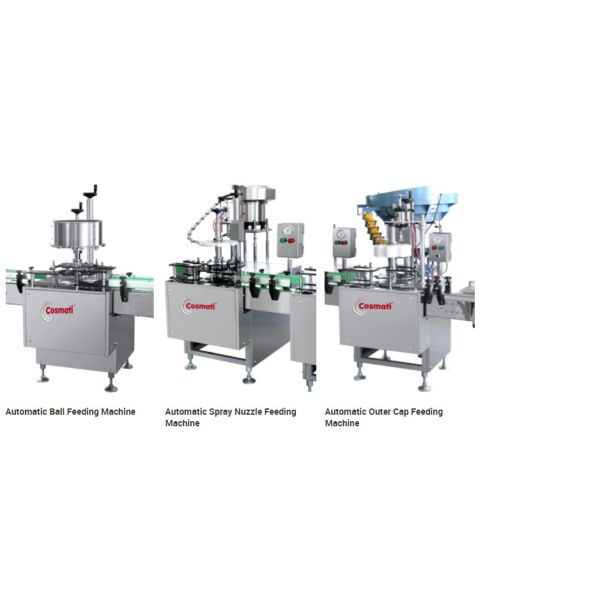

OUR MAIN PRODUCTS:


Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

 Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can


Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Mixing equipment Vacuum homogenization emulsifier Labeling machine
Inquiry Now Inquiry Now Inquiry Now



Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can


Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

 Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Liquid paste filling machine Digital small liquid filling machine Aerosol filling machine
Inquiry Now Inquiry Now Inquiry Now
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Perfume filling machine Cosmetic powder press machine Grinding machine
Inquiry Now Inquiry Now Inquiry Now


Application

Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

Factory profile
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

Engineer case
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Trade show participation
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can
Packaging & shipping specifications
Semi Automatic Manual Aerosol Filling Machine for Air Freshener Body Spray Can

FAQ

1. What functions does this three in one aerosol filling machine provide?

The machine integrates liquid filling, aerosol valve crimping and propellant filling on one working platform, helping reduce manual handling between separate stations.

2. What aerosol products can this machine handle?

It is suitable for various aerosol products using compatible formulations, including air freshener, cleaning spray, cosmetic spray, automotive spray, chemical aerosol and other liquid or viscous aerosol products.

3. What aerosol can sizes are suitable?

The reference applicable range is:

  • Can height: 80–315mm

  • Can diameter: 35–70mm

Different can specifications should be confirmed before production.

4. What valve size can the machine handle?

The supplied configuration is designed for a 1 inch aerosol valve.

The reference crimping diameter is 26.5–27.5mm, with a sealing depth of approximately 5–6mm.

5. What is the maximum liquid filling volume?

The maximum reference liquid filling volume is 450ml.

The actual filling volume can be adjusted according to the aerosol product and can specification.
