Automatic spray paint cans aerosol filling machine

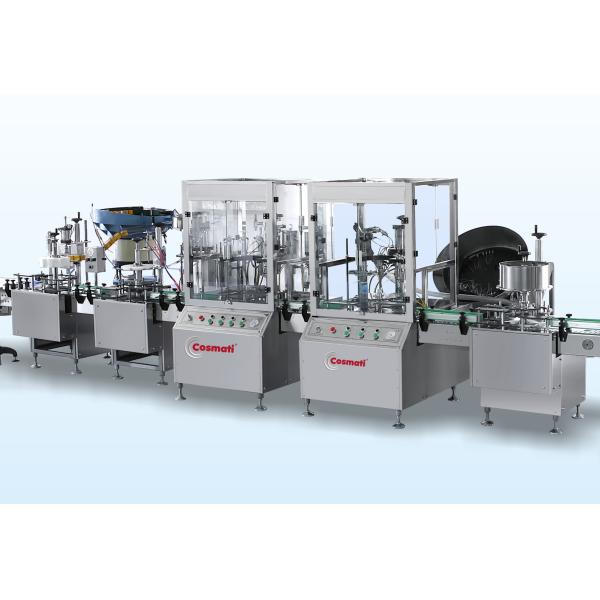

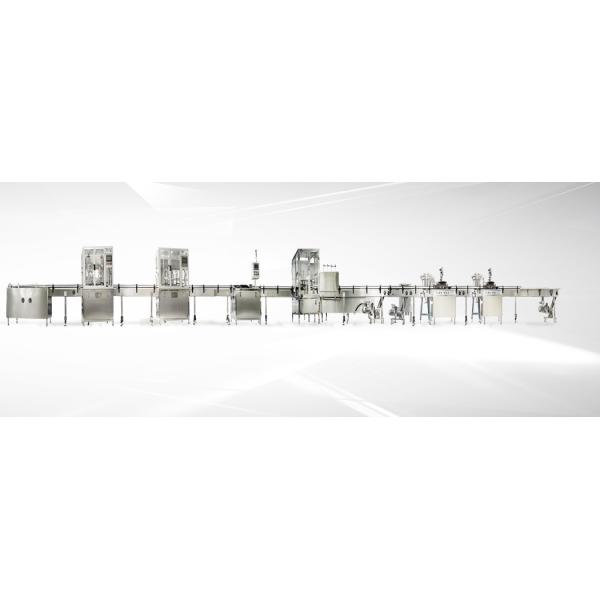

This automatic aerosol filling line mainly consists of unscrambler, filling device, capping device, conveyor.
1. Conveyor: Stainless steel main panel and side panels, 2440mm*3 sections; plate in 2mm thickness made of 304 stainless steel.

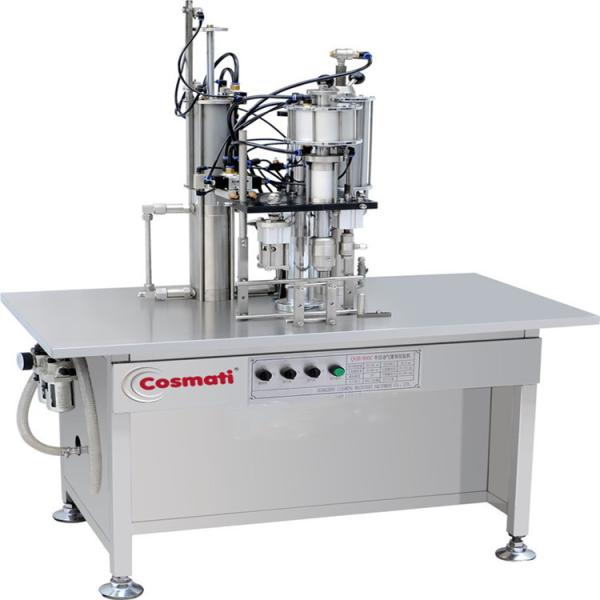

2. Filling device: Equipped with an air blowing head and 3 filling heads, fully-pneumatic control, and each head can be controlled separately; a set of Φ65mm aerosol can holder and can guidance panel are provided; main pneumatic control devices are introduced from Italy and Japan. It features: no material is discharged in absence of aerosol can. #304 stainless steel.
3. Injecting and Capping device: provided with a vacuum head, a capping head, 3 injecting heads. It features: guiding devices are provided at both capping heads and injecting heads. #304 stainless steel.
4. Control System: The main body including the aerosol filler and the capping and injecting device is under pneumatic control. With high efficiency, safe, simple and reliable operation and easy maintenance.
scope of speed: 4.5-23r/min.;
0.75kw anti-blast motor and anti-blast switch are attached;
Safety guarantee: Anti-blast motors are applied for tin unscrambler device and the conveyor; the circuit is through PVC pipes and anti-blast junction boxes, connected by anti-blast switch; the main body is absent from power supply; the casing is grounding to prevent electrostatic; both aerosol filler and injecting device are protected by cabinet (stainless steel frame with 4mm transparent organic glass) to prevent injury due to can blasting.

Technical Parameters:

Machine name :Full Automatic Aerosol Filling Machine
Filling Volume:30-500ml(can be customerized)
Filling Accuracy:±1%
Can Height:70-330mm
Capacity:3000-3600cans/hr
Top speed :20 CPM
Height of cans:70-330 mm
Diameter of cans:30-65 mm
Filling tolerance:≤± 1%
Air working pressure:5 bar
Function:Autoamtic weighting,filling,capping,packing,etc

Application:

Our Main Products:

Mixing equipment	Vacuum homogenization emulsifier	Labeling machine
Inquiry Now	Inquiry Now	Inquiry Now
Liquid paste filling machine	Digital small liquid filling machine	Aerosol filling machine
Inquiry Now	Inquiry Now	Inquiry Now
Perfume filling machine	Cosmetic powder press machine	Grinding machine
Inquiry Now	Inquiry Now	Inquiry Now

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. Is this a fully automatic aerosol filling line?

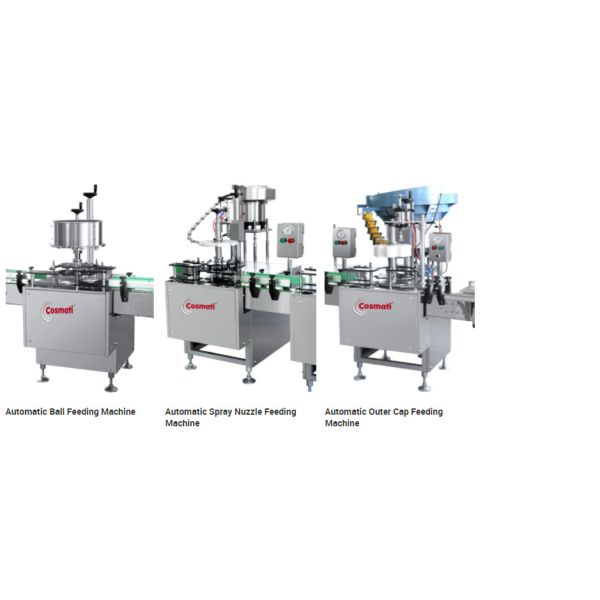

Yes. This system is designed as an automatic aerosol filling line, integrating can conveying, product filling, valve processing, propellant filling, spray nozzle feeding and outer cap feeding according to the selected configuration.

2. What aerosol products can this machine produce?

It is suitable for products such as spray paint, air freshener, cleaning spray, automotive aerosol, household chemical spray and other compatible aerosol products.

The final configuration should be confirmed according to the product formula and propellant type.

Different modules can be selected according to production requirements.

3. How many filling heads does the machine have?

According to the supplied configuration, the filling section is equipped with 3 filling heads.

Each filling head can be controlled separately, helping improve production flexibility and maintenance convenience.

4. Does the machine have a no can no fill function?

Yes. The supplied filling system is designed so that material is not discharged when no aerosol can is detected at the filling position, helping reduce product waste and contamination.
