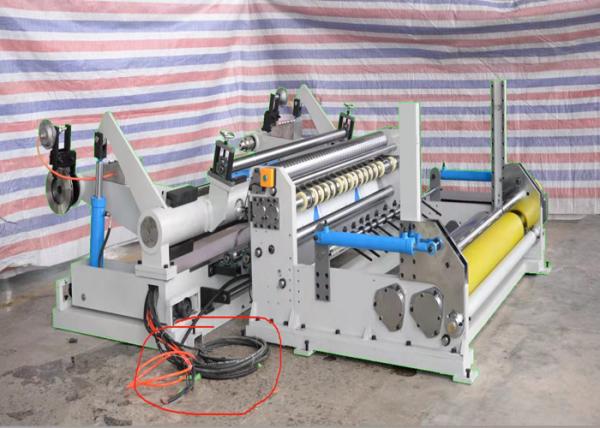

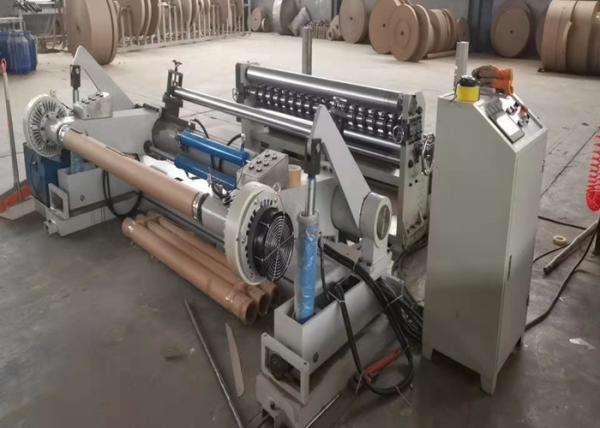

2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
2500mm Kraft Paper Slitting Machine Corrugated Reel Rewinder Cutting
Specifications
Brand Name :
SOOME
Model Number :
SMFJ
Certification :
CE
Place of Origin :
Made In China Hebei
MOQ :
1Set
Price :
Contact
Payment Terms :
L/C, T/T
Supply Ability :
30 Pcs/month
Delivery Time :
25 Days
Packaging Details :
Wooden case or plastic film；1*40' Container
Wide size :
2500mm
Name :
Rewinder Cutting Machine
Keywords :
Cardboard making machine
Usage :
Corrugated roller rewinder and slitter
Warranty :
1 year
Driven type :
Electric
Speed :
1-300m/min
Cutting blade pcs :
18 pcs
Description

2500MM Corrugated Paper Reel Rewinder Cutting Machine For Kraft Paper Slitting

Rewinding machine is a special equipment for paper. Its purpose is to rewind the paper rolls produced by paper machine (called base paper rolls) successively. The paper is made into finished paper after rewinding. Rewinding machine using AC drive instead of DC drive in paper machinery industry has become a development trend. The paper rolled by the paper rolling machine is relatively soft, there may be damage or broken inside, both sides of the edge is not neat, the width of the paper can not be directly used in paper processing or printing machines. Most kinds of paper (such as newsprint, letterpress printing paper, wrapping paper, etc.) must be edged-cut, slitted, jointed by rewinding machine and rerolled on the core of paper to form a finished paper roll with certain specifications and certain tightness requirements before leaving the factory .

Technical parameter :

Raw paper wide size 2500(mm)
Raw paper diameter 1200(mm)
Rewind diameter 1200(mm)
Cutting wide size >35(mm)
Raw paper gram 80-600g
Main power 15kw
Put paper way Hydraulic mill roll stand
Cutting blade pcs 18pcs
Winding way Gas inflation take-out type
Put the paper down way Hydraulic
Adjusted blade way CNC control
Changed speed control Frequency control
Slitting speed 1-300(m/min)
Enter the power supply 380V 220V
Operation staff 1

Size:

Raw paper machine: L5200*W1500*H1100mm
Rewinder machine: L4000*W1800*H1400mm
Up knife size: 2*104*100mm
Under knife size: 8*140*90mm
Total weight 5900kg
