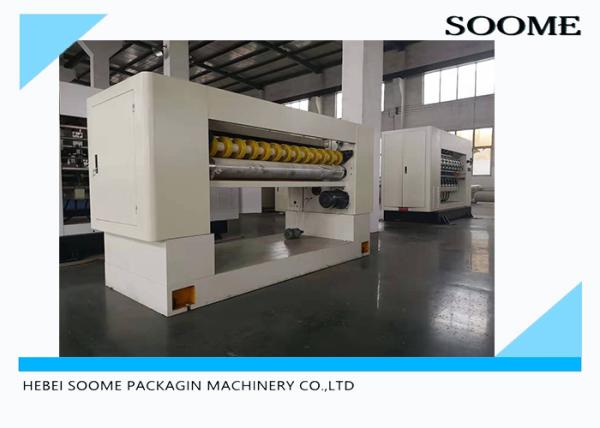

Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine
Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine
Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine
Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine
Specifications
Brand Name :
Soome
Model Number :
SM-HQ
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Contact
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80 set per year
Delivery Time :
35 days
Packaging Details :
plastic film
Type :
Cutting machine
Voltage :
380V
Automatic grade :
Automatic
Condition :
New
Weight :
800kg
Driven type :
Electric
Application :
Machinery & Hardware
After-sales service provided :
Engineers available to service machinery overseas
Description

Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine

Name of main parts Brands or place of origin
Full AC servo motor Shanghai futian 22kw
Feeding frequency synchronous motors Hebei hengshui
Bearing HRB Upper and lower knife shaft bearing adopt japan NSK
Contactor and relay, middle relay France Schneider
Proximity switches
Flying shear servo control system KEFENG 30kw
Feeding drive Taiwan dalta
HMI Taiwan weilun or kunlun state
Pneumatic Components Tianao

Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine

Technical parameter

Working width: 1800mm

Max. cutting speed:200m/min

Cutting cardboard:max. 9999mm min. 500mm

Cutting precision:±1mm in stable speed

Cardboard: original paper: ＜360g/ liner paper＜200g/

thickness3－14mm moisture content ＜10％

min. width warping1000mm ＜30mm

Comparative moisture content:20％～90％ comparative temperature:5℃－50℃

Steam pressure:0.6－0.9MPa

Cutting cardboard blade shaft diameter:upper￠ 224 mm low￠ 228 mm

Guiding cardboard shaft diameter: front upper ￠165mm(sun wheel) front lower￠135mm

Back upper ￠165mm back lower￠135mm

Electricity :voltage 440V frequency 50Hz current 80A

Total power:32.58kw

Dimension:3000mm×1600mm×1500mm(length x width x height)

Double Layers Computer Rotary Cutting Off Machine(SHQ2-1800 type,Double layers rotary cutting off blades, adopt AC servo motor from Italy. Multiple orders processing function, can change manually or automatically. Feeding and outputting board by frequency control,automatic tracking the speed of corrugation line, cutting off length 400-9999mm. PLC System is from Taiwan.
