NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter
Specifications
Brand Name :
Soome
Model Number :
SM-HQ
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Contact
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80 set per year
Delivery Time :
35 days
Packaging Details :
plastic film
Type :
Cutting machine
Voltage :
380V
Automatic grade :
Automatic
Condition :
New
Weight :
800kg
Driven type :
Electric
Application :
Machinery & Hardware
After-sales service provided :
Engineers available to service machinery overseas
Description

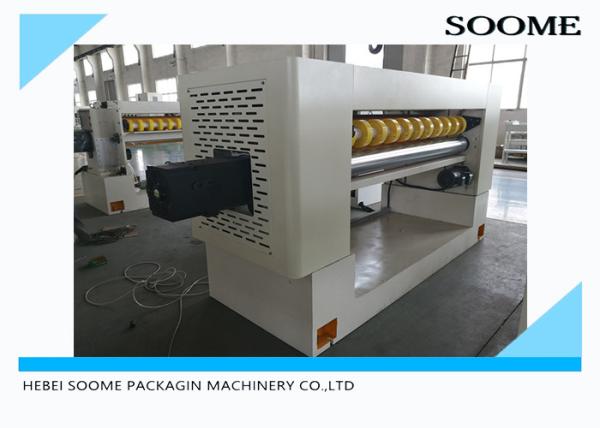

NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter

Name of main parts Brands or place of origin
Full AC servo motor Shanghai futian 22kw
Feeding frequency synchronous motors Hebei hengshui
Bearing HRB Upper and lower knife shaft bearing adopt japan NSK
Contactor and relay, middle relay France Schneider
Proximity switches
Flying shear servo control system KEFENG 30kw
Feeding drive Taiwan dalta
HMI Taiwan weilun or kunlun state
Pneumatic Components Tianao

NC Helical Corrugated Board Cutting Machine Corrugated Rotary Die Cutter

Functions and characteristics:

1. With single or double layers structure for choice.

2. Colorful touch screen display all kinds of production information which can be checked, revised ,added or canceled.

3. Special structural design, particularly well mechanical strength wall and base.

4. Special high-speed helical cutter for cutting cardboard smooth without burr.

5. Blade adjustment and changing design, fast and convenient.

6. Drive box adopts oil pump type high precision gear drive with low noise, steady.

7. AC servo motor driven cutting, high efficiency, high precision.

8. Transport out of paper using an independent variable frequency motor drive, and line speed synchronization.

9. AC servo control system, energy saving 30%.

10. Computers can store multiple sets of orders,changing orders automatically with non-stop, and to achieve computing network to facilitate the production management.

11. Cutting length range ;500-9999mm; Cutting accuracy; ± 1mm.

12. The speed :120m/min

13. Valid breadth:1800mm
