Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off
Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off
Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off
Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off
Specifications
Brand Name :
SOOME
Model Number :
NC
Certification :
CE
Place of Origin :
China Hebei Dongguang
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 set /month
Delivery Time :
35 Days
Packaging Details :
Wooden or plastic * 20'' container
Type :
Packaging line
Function :
High efficiency
Item :
Carton machine
Condition :
New
Power :
15.5KW
Description

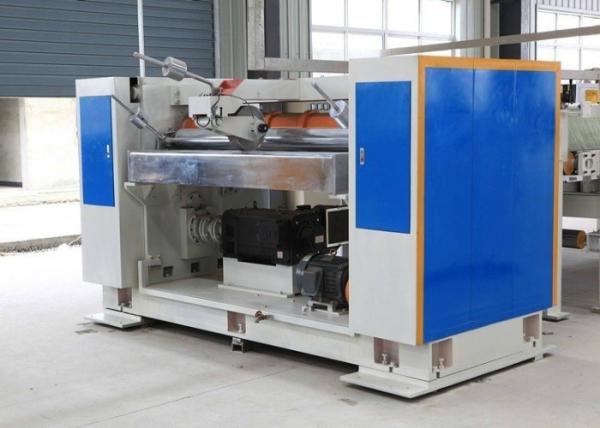

Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off

Functions and characteristics:

1. With single or double layers structure for choice.

2. Colorful touch screen display all kinds of production information which can be checked, revised ,added or canceled.

3. Special structural design, particularly well mechanical strength wall and base.

4. Special high-speed helical cutter for cutting cardboard smooth without burr.

5. Blade adjustment and changing design, fast and convenient.

6. Drive box adopts oil pump type high precision gear drive with low noise, steady.

7. AC servo motor driven cutting, high efficiency, high precision.

8. Transport out of paper using an independent variable frequency motor drive, and line speed synchronization.

9. AC servo control system, energy saving 30%.

10. Computers can store multiple sets of orders,changing orders automatically with non-stop, and to achieve computing network to facilitate the production management.

11. Cutting length range ;500-9999mm; Cutting accuracy; ± 1mm.

12. The speed : 5０－130m/min

13. Valid breadth:1400mm-2500mm.

14. Designed and manufactured according to CE standards.

Motor:


1. Main motor:12.5kw Ac synchronous servo
2. Feeder motor:3 kw(Frequency control the speed)

3. Lubricating oil pump motor:0.25kw

SMHQ-LX-1600 SMHQ-LX-1800
Effective working width 1600mm 1800mm
Wallboard width 1800mm 2000mm
Design speed 130m/min 130m/min
Economic speed 90~110m/min 90~110m/min
Machine size 3300x1300x1560mm 3500x1300x1560mm
Operation cabinet size 1000x600x1400mm 1000x600x1400mm
