Automatic Tying Carton Strapping Machine Pp Belt Packing
Automatic Tying Carton Strapping Machine Pp Belt Packing
Automatic Tying Carton Strapping Machine Pp Belt Packing
Automatic Tying Carton Strapping Machine Pp Belt Packing
Specifications
Brand Name :
SOOME
Model Number :
SMDB-QZD-1000
Certification :
CE
Place of Origin :
Cangzhou, China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
40sets per month
Delivery Time :
25-30days after deposit
Packaging Details :
Wrapped with film or in wooden case
Application :
Packing or wrapping field
Tying method :
Automatically
Belt material :
PP belt
Belt specs. :
W5-9mm, T0.5-0.8mm
Tying speed :
Max. 1.5s
Min. tying size :
W80 x H60mm
Machine weight :
120kgs
Machine size :
1360x660x1792mm
Power :
600W, 10A
Voltage :
1P, 220V, 50HZ
Description

Automatic cartons tying machine, pp belt strapping packing machinery

I. General introduction

In the corrugated cartons making and transportation process, strapping / Packing cartons is the last procedure.

First use Corrugated Production Line to produce corrugated paperboard in different sizes, thickness, specifications and quality. Second use Thin Blade Slitter Scorer machine to slit into needed sizes and crease lines. Third put the sheets on Flexo Printer Slotter Rotary Die-cutter machine to print needed words, patterns and colors, and slot or die-cut into different shapes. Forth, put the printed cardboard on Folder Gluer machine to make into cartons. Fifth, after glued the cardboard into cartons, need strapping machine to pack them well waiting for transportation or selling.

As for the strapping machine, it has several name like baler, wrapping machine, packing machine, etc. And the packing machine one type use PP belt and another type use PE belt. This Automatic high speed strapping machine we introduced here is using PP belt.

II. Machine details

Machine size L1360 x W660 x H1792MM
Loading container size L1500 x W800 x H1900MM
Working table height 850MM
Weight capacity 80KGS
Machine weight 120KGS
Tying speed ≦1.5s / belt
Tying specs. Min. Tying size: W80 x H60mm; Max. Size as per frame size
Adhesive method Hot melt
Tying tightness 0-45KG
Power 600W, 10A
Voltage 1P, 220V, 50HZ
Standard packing frame W650 x H500MM
Optional Can choose packing frame size, belt width

III. Requirements of belt

Raw material Polypropylene (PP)
Specification Belt W 5-9MM, Belt thickness 0.5-0.8MM
Belt tray width 170-190MM
Belt tray inner core diameter 200-210MM
Belt tray outer diameter 400-450MM
Max. Tying strength 45KGS

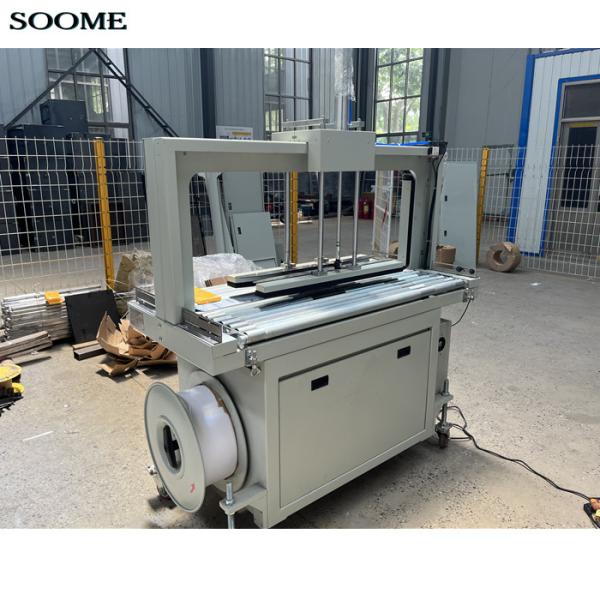

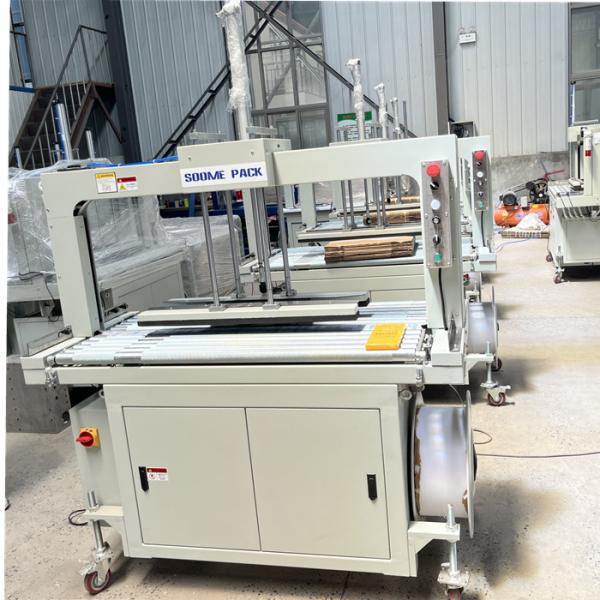

IV. Detailed photo

Automatic Tying Carton Strapping Machine Pp Belt Packing
