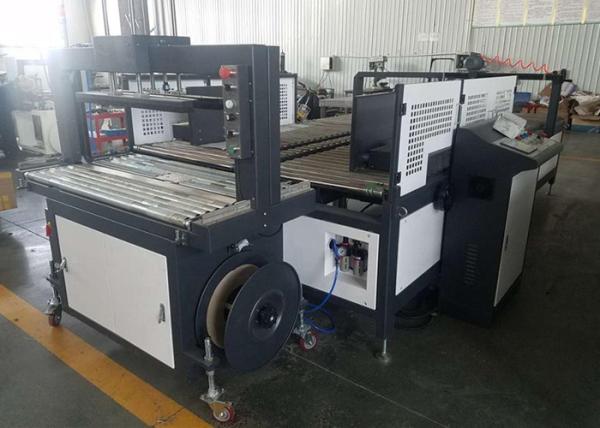

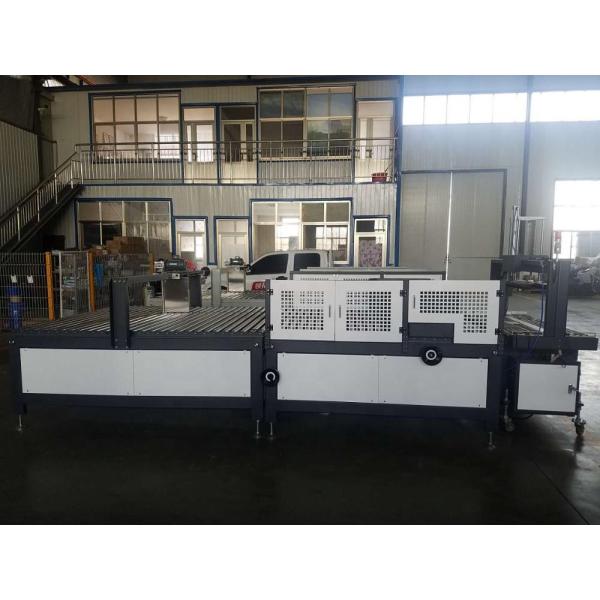

Corrugated Paper Boards Pneumatic 15pcs/Min Carton Strapper And Bundler
Corrugated Paper Boards Pneumatic 15pcs/Min Carton Strapper And Bundler
Corrugated Paper Boards Pneumatic 15pcs/Min Carton Strapper And Bundler
Corrugated Paper Boards Pneumatic 15pcs/Min Carton Strapper And Bundler
Specifications
Brand Name :
SOOME
Model Number :
SMDB-2200
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
25 sets/month
Delivery Time :
14 days after deposit
Packaging Details :
Wooden case or film
Type :
Automatic Strapping and bundling Machine
Condition :
New
Color :
Customized
Driven Type :
Electric and pneumatic
Voltage :
220/380V 50Hz/60Hz
After-sales service provided :
Engineers available to service machinery overseas
Packaging material :
Plastic
Description

5mm Strapping Belt Corrugated Paperboards Pneumatic Strapper And Bundler

1. Summarize

When use the strapper and bundler machine, users must understand the function of each switch to ensure correct, safe operation of the strapper and bundler machine, so as to avoid the cost of the strapper and bundler machine can not work.

2. Features and Functions

1). Touch screen
Users can choose according to the strapping requirements of the operation of the strapper and bundler.
2). Start button
After the strapper and bundler starts, press the start button, the strapper and bundler machine starts to work properly.
3). Reset button
The strapper and bundler machine in an emergency stop, suddenly cut off or after the failure of the boot, press the reset button for 3 seconds to complete the whole strapper and bundler reset.
4). Transport selection button
(1) when the knob is in the automatic gear, the strapper and bundler machine automatically carries on the box.
(2) when the knob is in the position of the transmission, the strapper and bundler is only the delivery table work, the product of the input only forward.
5). Emergency stop button
Press the emergency stop switch, the power indicator light is still on, the rest of the action to stop. No matter what kind of machine, if the strapper and bundler machine immediately stop running, just press this switch can, if need to restart, in accordance with the direction of the arrow on the switch to a point, then press the reset button, so that the strapper and bundler machine reset and then start work.

3. Technical Parameters

Name Parameter
Strapping line total power 3kw
Speed 15pcs/min
Working environment Relative humidity is less than 90%,temperature 0-40,noise less75db.
Belt width 5mm
Belt index dial specification Paper core inner diameter 200-210mm,outer diameter 400-450mm.
Glue way Heat fusion
Glue connect way Bottom glue
Tightness degree 0-45kg
Air pressure 0.5-0.8Mpa

Corrugated Paper Boards Pneumatic 15pcs/Min Carton Strapper And Bundler
