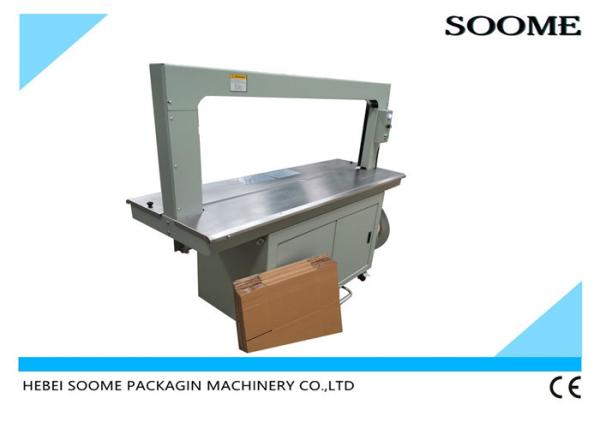

1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven
1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven
1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven
1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven
Specifications
Brand Name :
SOOME
Model Number :
VT-5-9
Certification :
CE Certification
Place of Origin :
Heibei Province China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 per/mounth
Delivery Time :
15 days after depoist
Packaging Details :
wooden case and filling with plastic film
Packaging type :
Cartons,Case,Film
Strapping speed: :
≥20 peck /min
Weight: :
245 kgs
Driven type :
Electric
speed: :
450 staples
Dimension(L*W*H): :
L1580mm×W600mm×H1480mm
Strapping size :
L( )*W1200*H500mm
Voltage :
220V 50Hz
Description

1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven

Advantages:

1200 type Auto pp belt carton strapping machinery In the corrugated cartons making and transportation process, strapping / Packing cartons is the last procedure.

1200 type Auto pp belt carton strapping machinery. First use Corrugated Production Line to produce corrugated paperboard in different sizes, thickness, specifications and quality. Second use Thin Blade Slitter Scorer machine to slit into needed sizes and crease lines. Third put the sheets on Flexo Printer Slotter Rotary Die-cutter machine to print needed words, patterns and colors, and slot or die-cut into different shapes. Forth, put the printed cardboard on Folder Gluer machine to make into cartons. Fifth, after glued the cardboard into cartons, need strapping machine to pack them well waiting for transportation or selling.

Technical Spec:

Model VT-5-9
External dimension L1580mm×W600mm×H1480mm
Packing dimensions L1650*W700*H1650 mm
Strapping speed ≥20 peck /min
Binding force 0-45kg
Binding belt specification Poly propylene, width of 5mm, 6mm, thickness of 0.5mm ~ 0.8mm
Machine weight 292 kg
Rated power 0.7kw
Rated Current 4A
Rated Voltage 220V/50HZ
Rated Pressure 6kg/cm
Max strapping goods size L( )*W1200*H500mm

1200 type Auto pp belt carton strapping machinery has several name like baler, wrapping machine, packing machine, etc.

And the packing machine one type use PP belt and another type use PE belt.

1200 type Auto pp belt carton strapping machinery, we introduced here is using PP belt.

1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven

1200 Type Carton Strapping Machine Auto Pp Belt Electric Driven
