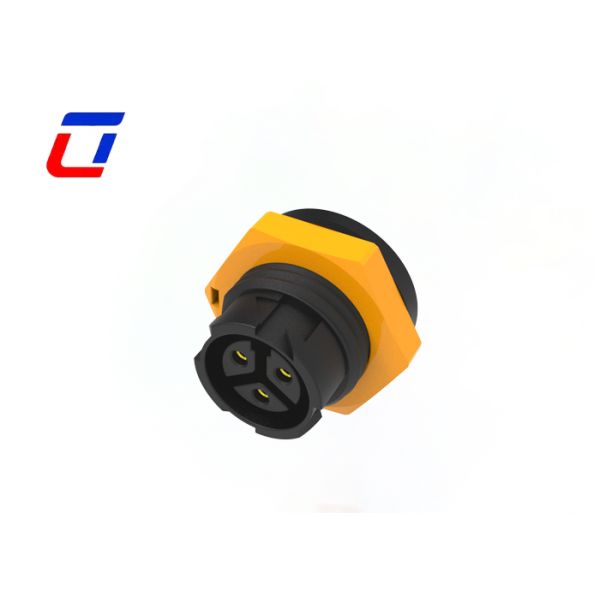

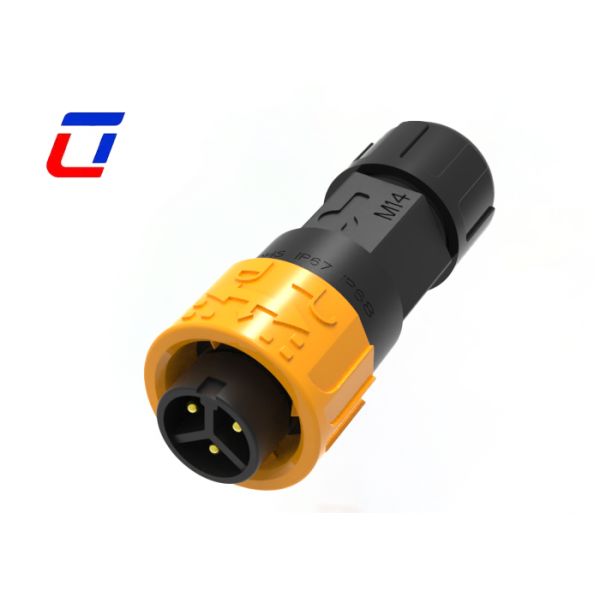

M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
3Pin
Current :
10A max
Rated voltage :
300V
Waterproof Rating :
IP67
Color :
Red Blue White Black Yellow
Contact Material :
Brass Gold-Plated
Description
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
Quick Release M16 3Pin Waterproof Circular Connector
This M16 3-pin male-female circular connector features a high-strength plastic housing and is designed for industrial automation applications. The quick-docking mechanism ensures efficient operation in production line environments, providing reliable power transmission and stable connections in complex industrial settings.
Product Features
  • Push lock quick release system for easy connection
  • Multiple core options available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field assembly versions: wire to wire and wire to board options
  • High current rating up to 10A for continuous operation
  • IP67 waterproof rating for industrial environments
  • Cable assembly service and OEM/ODM customization available
Electrical Specifications
Number of Poles 3Pin waterproof connector
Current Rating 10A maximum
Voltage Rating 300VAC maximum
Durability Voltage 1500VAC @ 60 seconds
Technical Specifications
Contact Resistance 10 mΩ maximum
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Communications equipment
  • Product coding machines and inkjet systems
  • Inventory product coding equipment
  • Solar power systems
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Heavy machinery
  • PLC control systems and automation equipment
Product Dimensions
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
Technical Details
M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
Frequently Asked Questions
Who is responsible for customs clearance? Do you provide necessary documents?
We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the buyer's responsibility under EXW/FOB terms. We can assist with document preparation as needed.
Can I pay after receiving the goods?
For first-time customers, advance payment is required to ensure smooth production. For established clients with successful order history, flexible payment terms can be discussed.
What shipping methods do you offer? How long is the delivery time?
We offer multiple shipping options: Courier (DHL/UPS/FedEx) takes 3-7 working days for small parcels; Air freight takes 7-15 working days; Sea freight takes 20-45 working days. Delivery times vary by destination and shipping method.
