3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
3Pin
Current :
10A max
Rated voltage :
300V
Waterproof Rating :
IP67
Color :
Red Blue White Black Yellow
Sealing Material :
Waterproof O-Ring
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3Pin Waterproof Cable To Board M16 Push Locking Power Connector
Product Overview

300V Rated Voltage, Stable Transmission: Suitable for 3-phase low-voltage power transmission. Excellent insulation, low contact resistance, safe and long-lasting operation.

OEM Customization Available: Support customization of pin count, cable, length, logo and more to meet different equipment and brand requirements.

Self-Locking Structure, Stable Connection: Thread-free self-locking design for easy plugging, shockproof and anti-loose to ensure stable power supply.

High-Grade Materials, Long Service Life: Heat-resistant and anti-aging insulation shell with gold-plated contacts. Good conductivity, wear and corrosion resistance.

Easy Installation, Higher Efficiency: Panel-mount pre-installed structure with simple wiring. Fast assembly for equipment, reducing installation and maintenance cost.


Key Features
  • Push lock quick release system for easy operation

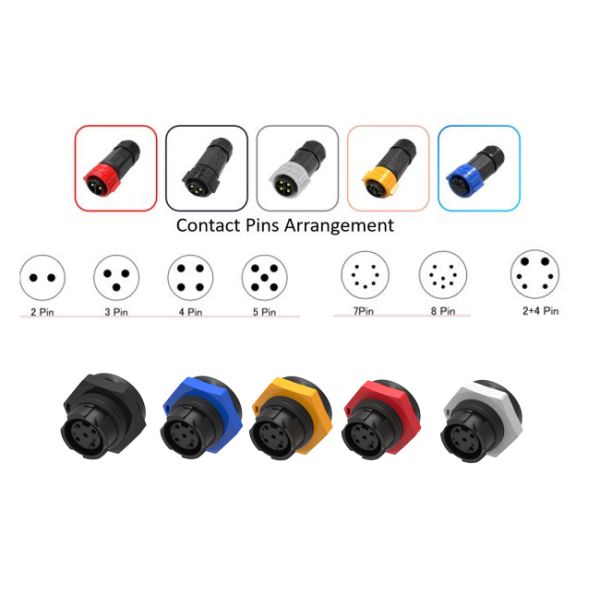

  • Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
  • Field assembly versions: wire to wire and wire to board options
  • High current rating up to 10A for long-term operation
  • Cable assembly service supported with customization options
  • OEM/ODM services available
Technical Specifications
Electrical Parameters
Number of Poles 3Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone

Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

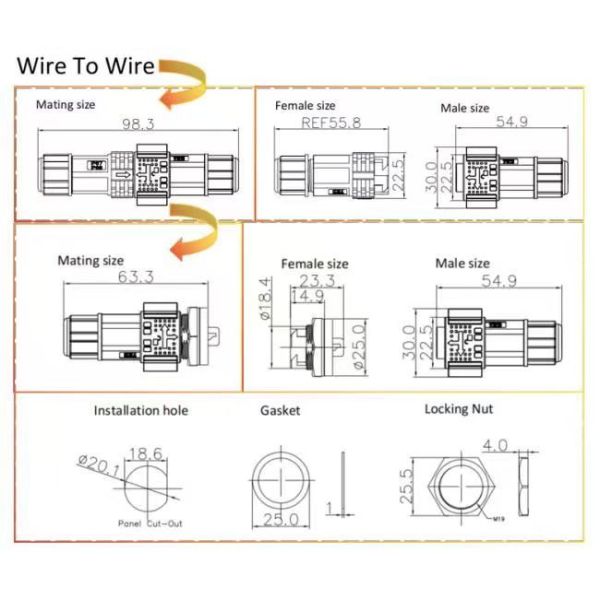

Production Dimension
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
Technical Details
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
Frequently Asked Questions
Can I have custom label?
Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
Can I pay after receiving the goods?
For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
